Technical Specifications and Module Design

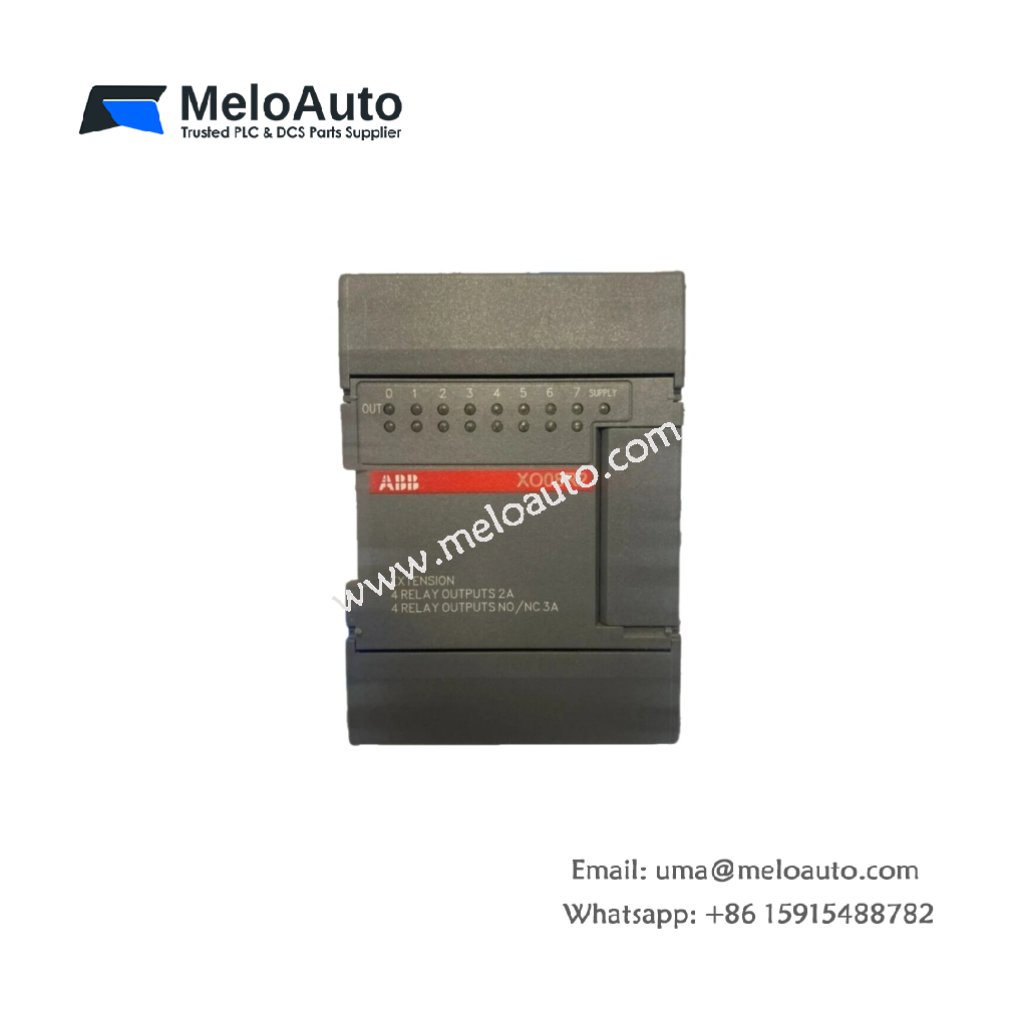

This relay output extension module adds discrete switching capacity for ABB Advant AC31 systems. The ABB 1SBP260109R1001 drives solenoids, contactors, and motor starters reliably. You can mount this module directly onto a standard DIN rail in your cabinet. Its compact design connects to the side of a basic controller or other extension. The module weighs approximately 0.24 kilograms. Its dimensions measure 11 cm in height, 7 cm in width, and 6 cm in depth.
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 1SBP260109R1001 |
| Category | Relay Output Extension Module / AC31 Expansion Unit |
| Weight | 0.24 kg |
| Height | 11 cm |
| Width | 7 cm |
| Depth | 6 cm |
| Number of Outputs | 8 relay outputs |
| Relay Type | Electromechanical, normally open |
| Contact Rating (Resistive) | 5 Amps at 250V AC / 30V DC |
| Contact Rating (Inductive) | 2 Amps at 250V AC / 30V DC |
| Maximum Switching Voltage | 250V AC or 30V DC |
| Coil Voltage | 24V DC (from bus) |
| Response Time (Operate) | 10 milliseconds maximum |
| Response Time (Release) | 5 milliseconds maximum |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 operations at rated load |
| Isolation Voltage | 2000V AC between coil and contacts |
| Bus Connection | Integrated side connector |
| Energy Storage | None (no battery) |
| Component Count | Single PCB with 8 relays, drivers, and suppression diodes |
Output Configuration and Load Handling
Each of the eight relays provides a normally open contact set. You can wire each output to control AC or DC loads freely. The ABB 1SBP260109R1001 switches resistive loads like heaters and lamps efficiently. It also handles inductive loads like solenoids and small motor starters. Each relay includes a suppression diode across the coil for protection. This diode prevents voltage spikes from damaging the driver circuits. The module provides a red LED for each output individually. This LED illuminates when the controller energizes the corresponding relay coil.
System Integration and Addressing
You connect this module directly to the side of an AC31 basic controller. The module automatically receives power and communication through the side connector. The ABB 1SBP260109R1001 does not require any external wiring for bus communication. The controller automatically assigns I/O addresses to this extension module. You can connect up to seven extension modules to a single controller. The module occupies a contiguous block in the I/O address space. No DIP switches or configuration tools are necessary for operation.
Installation and Operational Guidelines
You must clip this module onto the DIN rail before connecting to adjacent modules. The side connector must align properly with the neighboring unit. The ABB 1SBP260109R1001 draws its power from the controller through the bus. It requires no separate external power supply for operation. You should verify the total load current does not exceed 5 Amps per contact. The module stores no output states when you remove system power. Therefore, all relays return to the normally open position after power-up. The operating temperature ranges from -20°C to +55°C.
