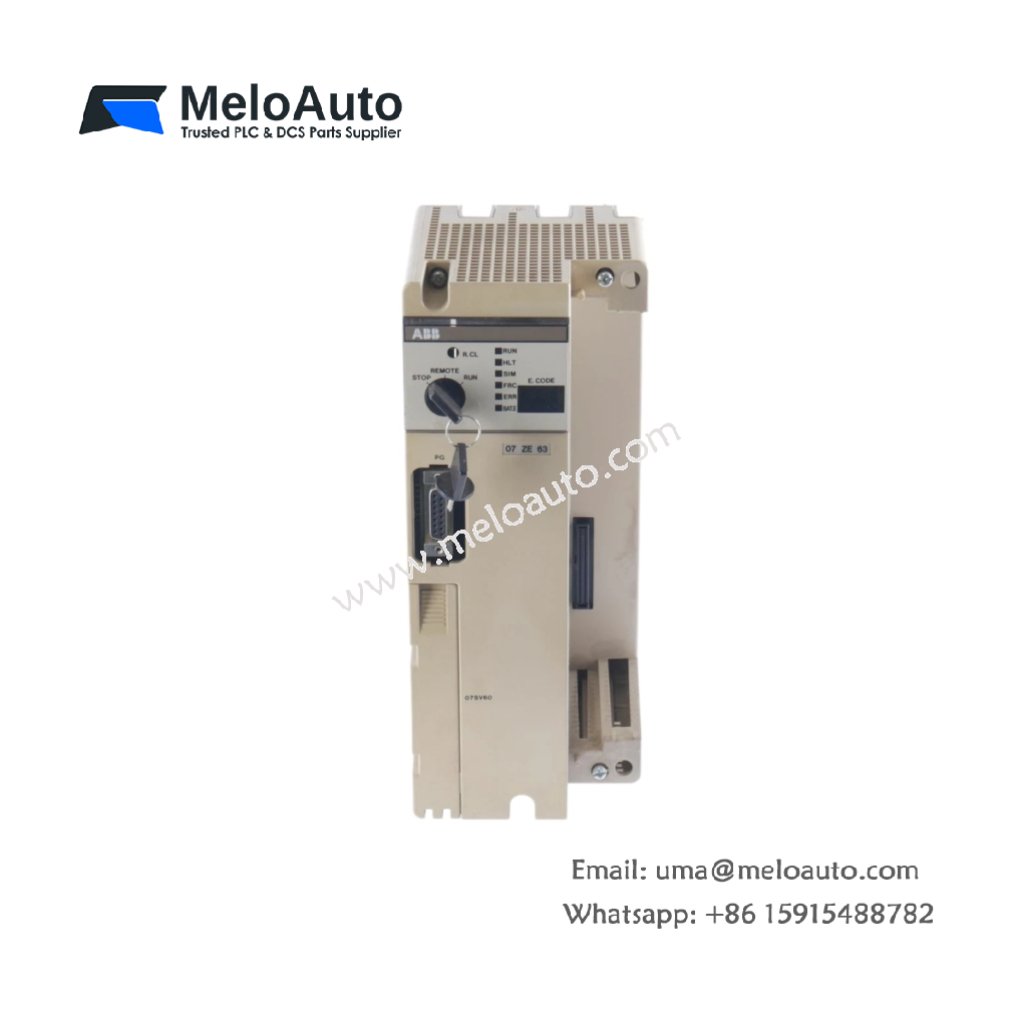

ABB 07 ZE 63 R302 Procontic Central Unit

This central unit manages logic execution for ABB Procontic systems. The ABB 07 ZE 63 R302 replaces conventional relay-based control panels. You can program this unit using high-level function block diagrams. Its modular design supports up to 64 local I/O points.

Physical Dimensions and Enclosure Details

The ABB 07 ZE 63 R302 measures 16.5 cm in overall width. Its total depth reaches 18.2 cm including connectors. This central unit weighs approximately 0.85 kg. A metal housing provides excellent electromagnetic shielding. Four mounting screws secure the unit to a DIN rail.

Memory Architecture and Processing Capabilities

This central unit contains 32 kB of user program memory. The module also includes 8 kB of retentive data storage. Processing speed reaches 1.2 µs per logic operation. The ABB 07 ZE 63 R302 executes cyclic programs every 25 ms. Additionally, it handles interrupt-driven tasks for fast responses.

Parameter	Specification
Product Type	Procontic Central Unit
Program Memory	32 kB RAM
Retentive Memory	8 kB EEPROM
Processing Speed	1.2 µs per logic step
Cycle Time	25 ms fixed
Local I/O Capacity	64 points (mixed digital/analog)
Integrated Inputs	8 digital (24V DC)
Integrated Outputs	6 digital (24V DC, 0.5A)
Communication Port	1x RS‑485 (Procontic bus)
Programming Interface	1x 9‑pin D‑sub (RS‑232)
Dimensions (W x H x D)	165 mm x 90 mm x 182 mm
Weight	0.85 kg (1.87 lbs)
Supply Voltage	24V DC ±20%
Current Draw	220 mA typical
Power Dissipation	5.3 W max
Internal Energy Storage	470 µF capacitor bank
Battery Backup	CR2477 lithium (5 years typical)
Operating Temperature	-10°C to +55°C

Energy Storage and Data Preservation

Large capacitors maintain operation during 10 ms power interruptions. A CR2477 lithium battery preserves retentive memory for 5 years. The ABB 07 ZE 63 R302 stores program logic and variables safely. Consequently, you retain all settings after extended power loss.

Integrated I/O and Bus Expansion

Eight digital inputs accept signals from switches and sensors. Six transistor outputs drive small relays or indicator lights. The RS‑485 bus connects additional I/O modules up to 200 meters. This central unit supports up to 16 expansion modules on the bus.

Programming Environment and Diagnostics

You program the ABB 07 ZE 63 R302 using Procontic SOFT software. The unit displays error codes through front panel LEDs. Seven segment indicators show system status and fault types. Therefore, maintenance personnel can diagnose issues without a computer.
