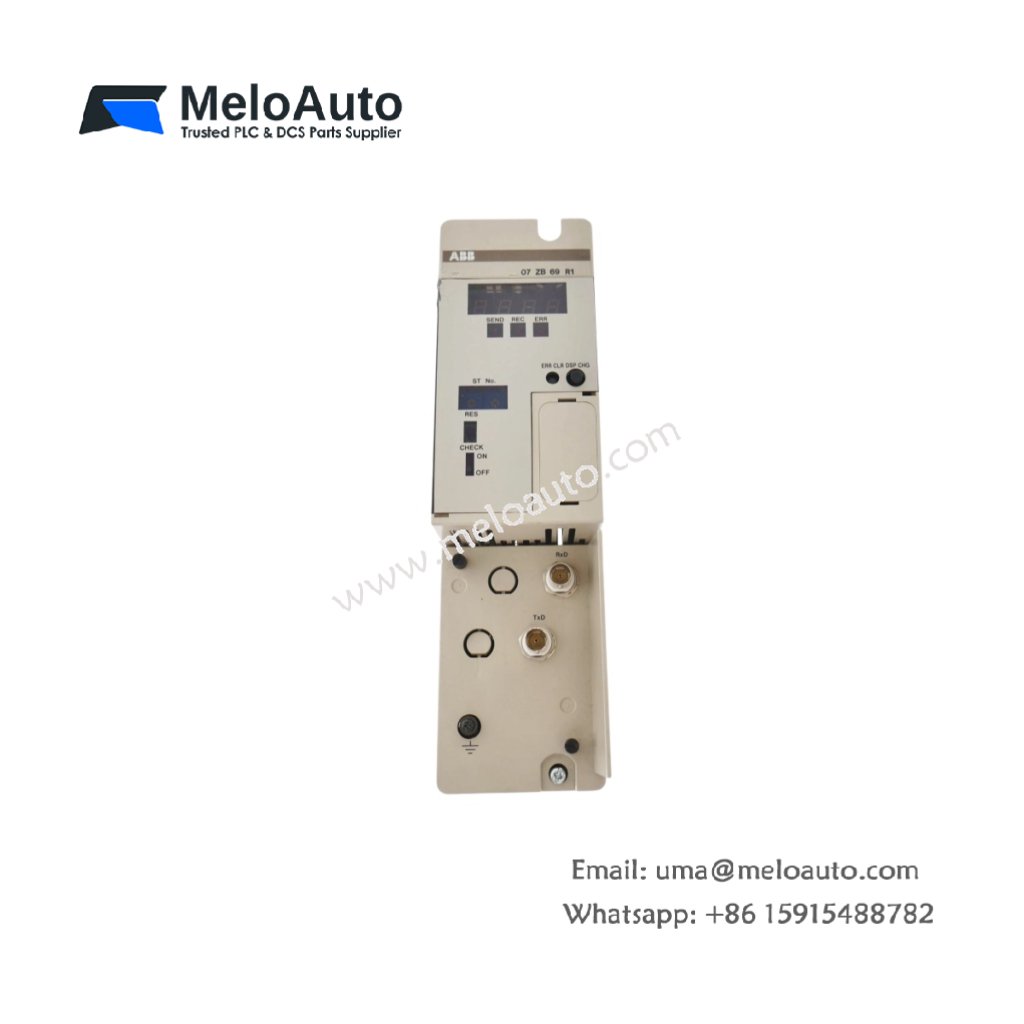

ABB 07 ZB 69 R1 Bus Coupler Card for Procontic Networks

The ABB 07 ZB 69 R1 connects Procontic controllers to fieldbus communication networks. You can install this card into any standard Procontic rack slot. It bridges the internal backplane with external Profibus DP systems. This coupler enables seamless data exchange between multiple controller stations.

Technical Specifications and Hardware Layout

This bus coupler card measures 130 mm in height. Its width reaches 30 mm, and the depth equals 110 mm. The ABB 07 ZB 69 R1 weighs approximately 0.22 kilograms. A single internal PCB holds all bus interface and isolation circuits. The module contains no energy storage capacitors or batteries. One 9-pin D-sub connector provides the external Profibus DP interface. A 40-pin edge connector interfaces directly with the Procontic backplane. Two status LEDs indicate network activity and coupler health.

Communication Performance and Addressing

The ABB 07 ZB 69 R1 supports baud rates from 9.6 kbit/s to 12 Mbit/s. It handles up to 64 bytes of input and output data per scan. You can set the station address using two hexadecimal rotary switches. Valid node addresses range from 1 to 126 for flexible network integration. Consequently, this card works in large distributed control systems. Automatic baud rate detection simplifies the initial commissioning process. Galvanic isolation separates the fieldbus side from the backplane logic.

Installation and Diagnostic Features

You must insert this card firmly into a standard Procontic rack slot. Transitioning to wiring, use shielded twisted-pair Profibus cables with proper termination. The module includes a built-in termination resistor switch for end nodes. Two front LEDs show bus communication status and module power. A watchdog timer resets the communication after 500 ms of inactivity. The operating temperature range spans from 0°C to 55°C reliably.
