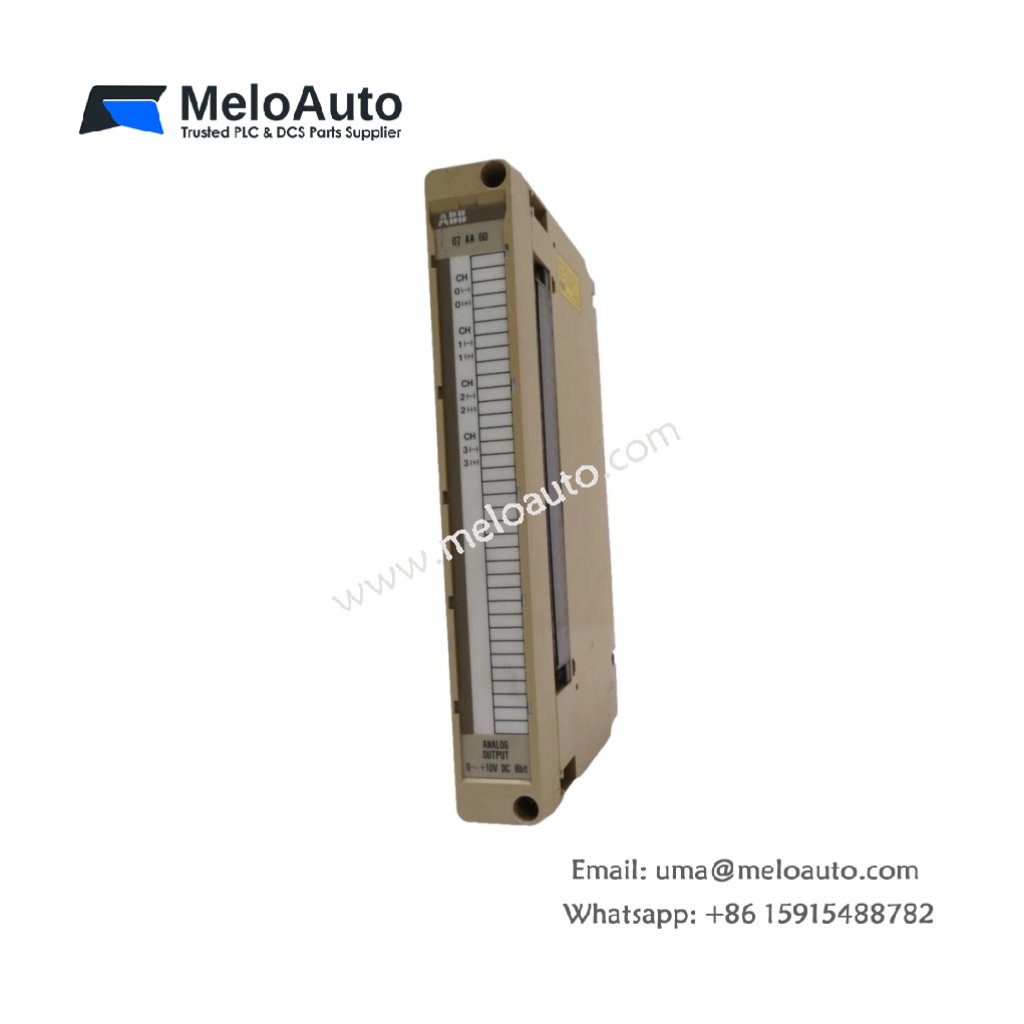

ABB 07 AA 65 R1 – Analog Output Module for Precision Control

The ABB 07 AA 65 R1 converts digital commands into continuous analog signals for actuators. This module measures 160 mm in width and 100 mm in height. It has a depth of 45 mm, so it fits compact DIN rail enclosures easily. The unit weighs 0.31 kg, making installation quick and effortless.

Internal Architecture and Channel Configuration

This analog output module contains two separate circuit boards inside its plastic housing. One board handles digital-to-analog conversion, while the other provides output amplification and protection. The ABB 07 AA 65 R1 includes four isolated output channels on its front panel. Each channel uses a dedicated 12-bit DAC for precise signal generation. The module stores 120 µF of capacitance for output filtering only.

Output Ranges and Field Wiring Details

You can configure each channel for voltage output from 0 to 10V DC. Alternatively, you can set any channel for current output from 0 to 20 mA. The ABB 07 AA 65 R1 provides eight screw terminals on its front panel. These terminals accept wire gauges from 24 AWG to 18 AWG comfortably. Each output channel can drive loads up to 500 ohms in current mode.

Power Requirements and Communication Interface

You must supply 24V DC power to the dedicated terminals on this module. The ABB 07 AA 65 R1 draws 120 mA at 24V DC during normal operation. Therefore, total power consumption reaches 2.88 watts for the entire module. A 20-pin ribbon cable carries digital data from the main controller. The module updates all four channels every 10 milliseconds for smooth control.

Output Accuracy and Environmental Tolerance

The module achieves a settling time of 2 milliseconds for full-scale changes. The ABB 07 AA 65 R1 delivers an accuracy of ±0.1 percent of full scale. Each output channel includes overcurrent protection against accidental short circuits. The device operates reliably from 0°C to 55°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues.

Below is a complete summary of its technical specifications.

The ABB 07 AA 65 R1 replaces older analog output cards in Advant OCS systems directly. You do not need any special adapters or additional configuration tools. This module also supports channel-level diagnostics for open wire detection. Consequently, it suits valve positioning and speed control in process automation.
