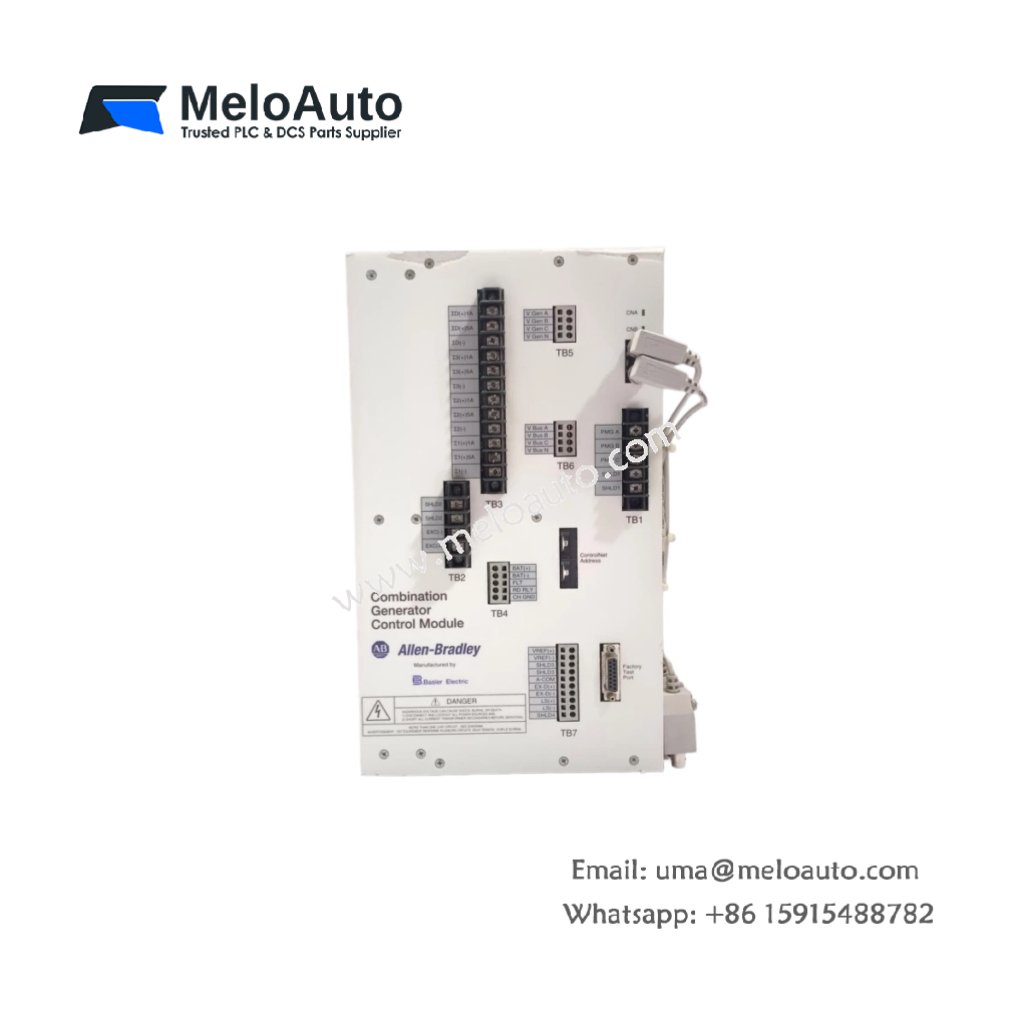

AB 1407-CGCM Generator Control Module

This control module manages generator excitation and synchronization for industrial power systems. It combines multiple generator control functions into a single compact unit. You will install this module in a standard ControlLogix chassis.

Key Technical Specifications

The 1407-CGCM accepts three-phase voltage inputs up to 600V AC. Its built-in regulator controls field excitation using a 125V DC output. The module also provides automatic synchronization with utility or bus power.

Parameter	Technical Data
Product Type	Generator Control Module
Voltage Inputs	3-phase, 100-600V AC, 50/60 Hz
Current Inputs	3 x 5A CT secondary
Field Excitation Output	0-125V DC @ 10A
Control Algorithm	PID voltage regulation
Dimensions (W x H x D)	13.7 cm x 14.0 cm x 14.5 cm
Total Weight	1.35 kg (2.98 lbs)
Terminal Blocks	4 x 6-position screw type
Backplane Connector	1 x 20-pin ControlLogix
Onboard Relays	4 x form C (5A each)
Onboard Resistors	54 surface-mount components
Energy Storage	1500 µF DC bus capacitance
Operating Temperature	0°C to 60°C
Protection Rating	Open-type (IP20)

Hardware Architecture and Energy Storage

The 1407-CGCM uses 1500 µF of bus capacitance for field current regulation. Fifty-four resistors set gain and scaling parameters for voltage sensing circuits. Four form C relays provide dry contact outputs for alarm signaling. A dedicated microprocessor runs the PID algorithm at 100 Hz update rate.

Interface and Connectivity

Four 6-position screw terminal blocks accept field wiring from CTs and PTs. One 20-pin backplane connector links the module to the ControlLogix processor. The front panel features LED indicators for power, run, and alarm status. An RS-232 port allows local configuration using a laptop connection.

Practical Installation Notes

Install this module in any slot of a 1756 ControlLogix chassis. The 1407-CGCM requires external fusing on all CT inputs for safety. Always connect the module’s ground terminal to the system earth bus. Verify the excitation output matches your generator’s field specifications.
