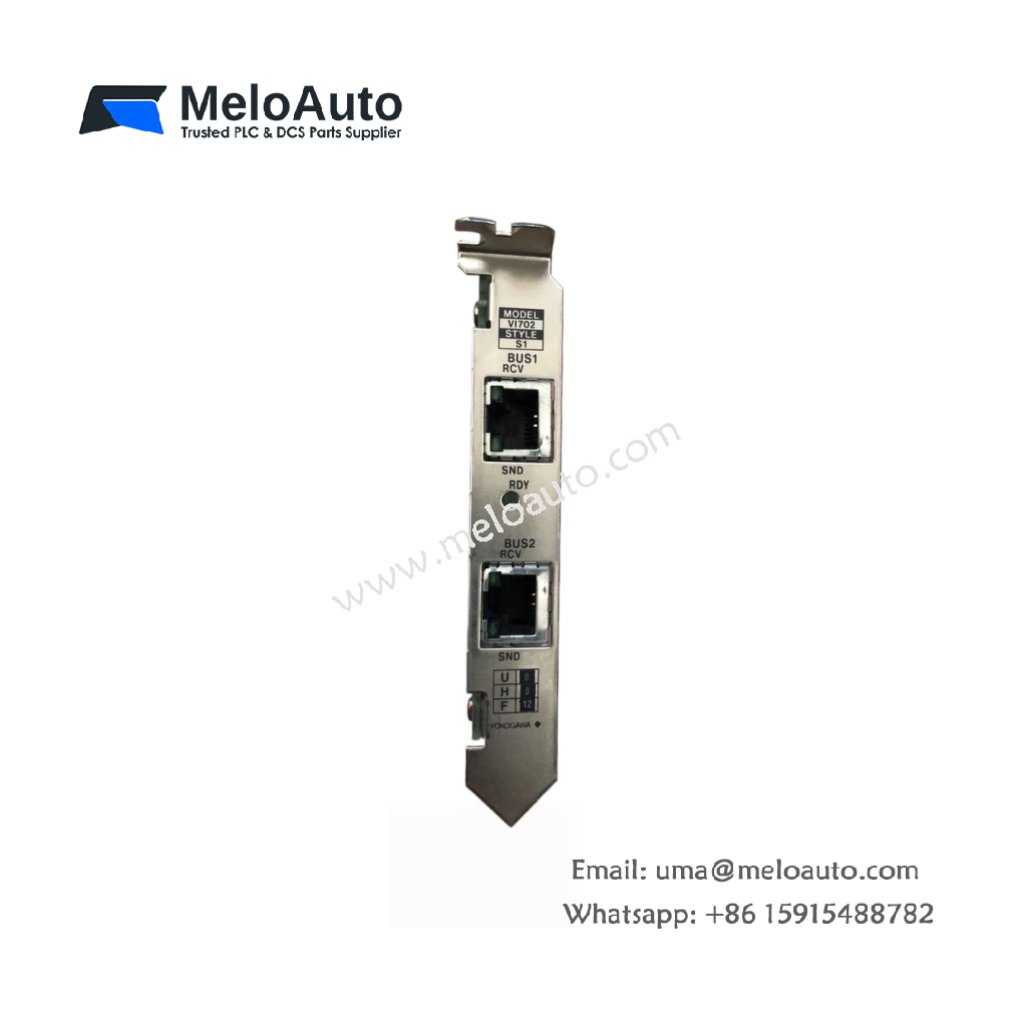

Yokogawa VI702 S1 Vnet/IP Interface Card

The Yokogawa VI702 S1 is a high-performance Vnet/IP interface card designed for seamless communication between Yokogawa control systems and external devices. It supports CENTUM VP, ProSafe-RS, and other compatible controllers. This module ensures high-speed, deterministic data exchange over industrial Ethernet, making it an ideal solution for real-time process automation, distributed control, and safety system integration.

Its compact design allows easy installation into PCI Express slots in Yokogawa controllers, streamlining system setup. Additionally, the VI702 S1 offers robust diagnostics to ensure consistent and reliable system performance in demanding industrial environments.

Key Features of the Yokogawa VI702 S1

High-Speed Communication: Supports Vnet/IP protocol with a data rate of 1 Gbps full-duplex.
Reliable Connectivity: Uses RJ45 Ethernet connectors for seamless integration with Ethernet-based systems.
Compact Design: Fits easily into PCI Express slots for quick and efficient installation.
Robust Diagnostics: Equipped with LED indicators for power, signal transmission, and reception, ensuring proactive maintenance.
Real-Time Performance: Delivers a response time typically under 1 ms for both input and output.
Galvanic Isolation: Provides channel-to-channel and channel-to-bus isolation for enhanced system protection.

Technical Specifications

Specification	Details
Model Number	VI702 S1
Type	Vnet/IP Interface Card
Communication Protocol	Vnet/IP
Communication Speed	1 Gbps full-duplex
Connector Type	RJ45 Ethernet
Power Supply	3.3 V DC
Current Consumption	2.5 A
Indicators	LED lamps for power, signal transmission, and reception
Cable Type	CAT5e Ethernet
Installation	PCI Express slot in compatible Yokogawa controllers
Isolation	Channel-to-Channel: Galvanically isolated; Channel-to-Bus: Galvanically isolated
Diagnostic Functions	Short-circuit detection, wire-break detection
Response Time	Typically less than 1 ms for input and output
Power Consumption	2 W
Operating Temperature	-10°C to 55°C
Storage Temperature	-20°C to 70°C
Dimensions (HxWxD)	10.2 cm x 8.2 cm x 6.5 cm
Weight	0.22 lbs

Applications of the Yokogawa VI702 S1

Seamless Integration: Perfect for integrating Yokogawa control systems with external devices over an Ethernet network.
Industrial Ethernet Communication: Ideal for applications requiring high-speed and reliable communication.
Real-Time Process Automation: Ensures low-latency data transfer for critical industrial processes.
Distributed Control Systems: Facilitates efficient operation of decentralized systems by connecting controllers and field devices.
Safety Systems Integration: Offers reliable communication paths for safety instrumented systems (SIS), ensuring system integrity.
