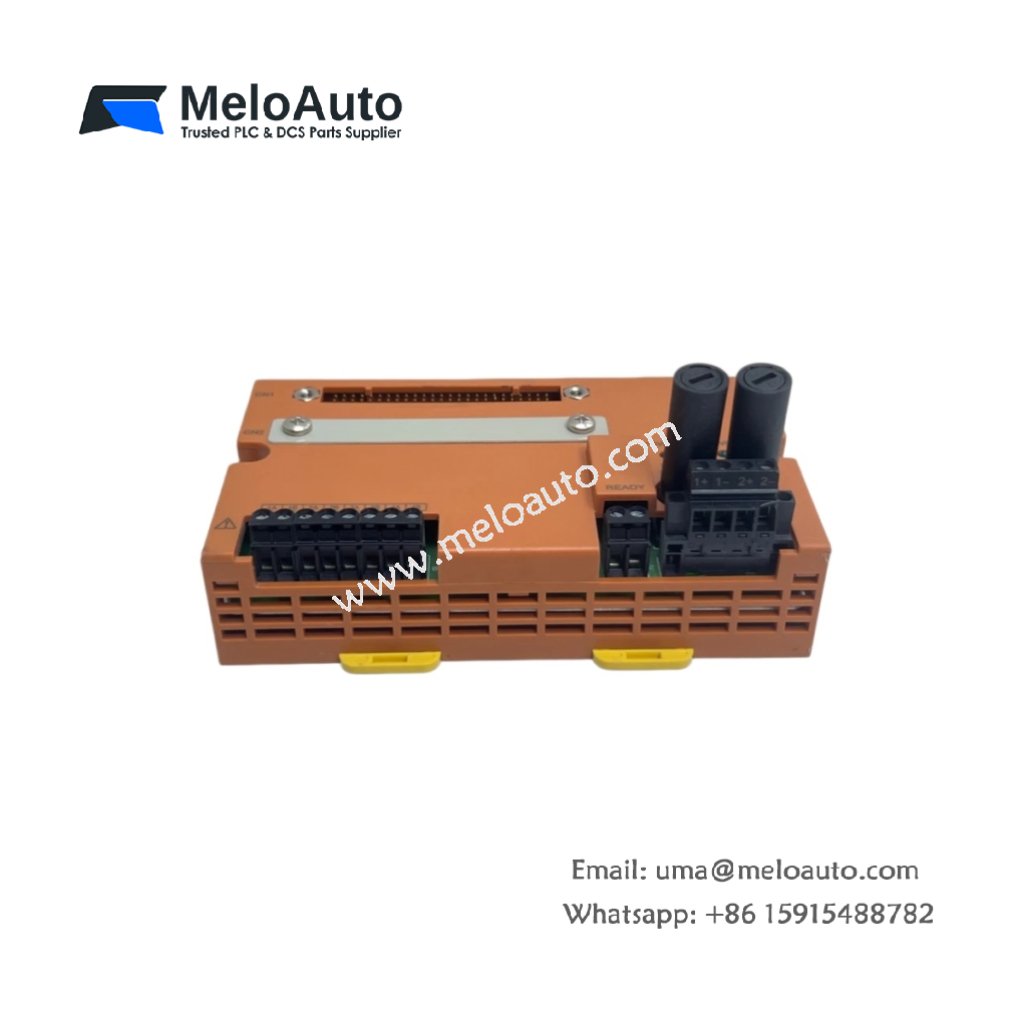

The SED2D-11 Digital Terminal Board by Yokogawa provides reliable connectivity for field I/O signals in industrial control systems. Designed for seamless integration, it ensures robust signal transmission, making it a crucial component for industrial automation applications. With advanced features such as high voltage tolerance and flexible signal routing, the SED2D-11 supports demanding operational environments.
Key Technical Specifications
The following specifications highlight the features and capabilities of the SED2D-11 Digital Terminal Board:
| Parameter | Value |
|---|---|
| Model | SED2D-11 |
| Channels | 4 channels |
| Voltage Tolerance | 2000 V AC for 1 minute |
| Insulation Resistance | Minimum 100 MΩ at 500 V DC |
| Current Capacity | 5 A per channel |
| Signal Type | Analog and digital |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Humidity Range | 10% to 90% RH, non-condensing |
| Dimensions | 482.6 mm (W) x 177 mm (H) x 85 mm (D) |
| Weight | 2.3 kg |
Features and Benefits
The SED2D-11 offers multiple benefits that enhance its functionality in industrial systems:
- Multiple Channels: The supports 4 channels, providing flexibility for signal routing in complex control systems.
- High Voltage Tolerance: This terminal board can withstand up to 2000 V AC for 1 minute, ensuring durability even in high-voltage environments.
- Secure and Stable Connections: It ensures reliable, stable connections for field signals, reducing the risk of signal disruptions.
- Compact and Efficient Design: The has a space-efficient design, making it easy to integrate into control systems without compromising performance.
- Robust Construction: Built to endure harsh industrial environments, the maintains reliable operation in challenging conditions.
Applications
The is ideal for use in various industrial automation setups, including:
- Control Systems: The terminal board serves as an essential interface for field I/O signals in automated control processes.
- Industrial Automation: With its high current capacity and flexibility in signal routing, it is perfect for integrating complex automation systems.
- Heavy Industrial Environments: The performs reliably under harsh conditions, making it suitable for industries such as manufacturing, power, and process control.
The SED2D-11 ensures high-performance connectivity and reliability, crucial for mission-critical industrial systems.
