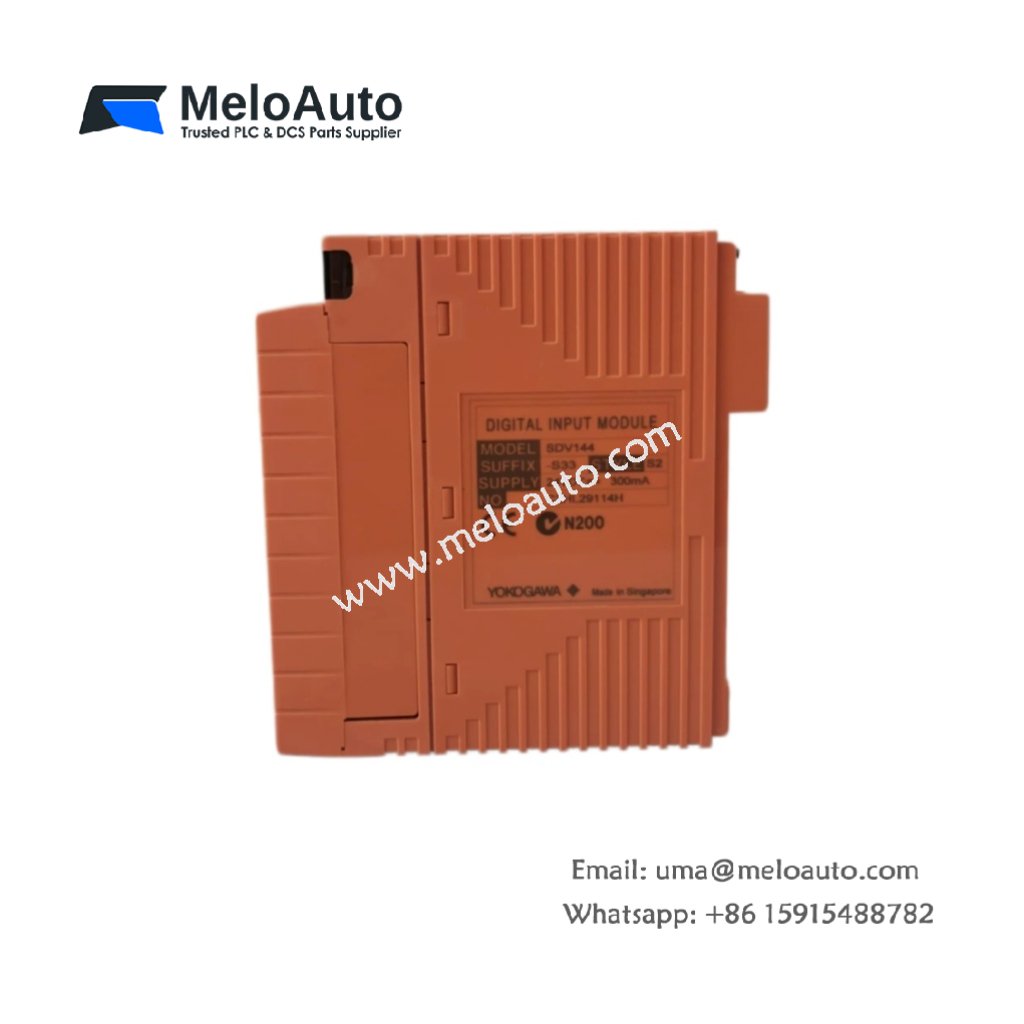

Yokogawa SDV144-S33 Digital Input Module

The Yokogawa SDV144-S33 Digital Input Module is a high-performance device tailored for use in industrial automation systems. It offers 16 reliable input channels, providing accurate data acquisition for various safety-critical applications. This module is perfect for seamless integration into your control system, ensuring fast and consistent performance.

Key Features

The Yokogawa SDV144-S33 ensures efficient and reliable signal processing, making it ideal for demanding environments. Below are the critical technical specifications and features:

Model: Yokogawa SDV144-S33
Number of Channels: 16, enabling high-density data input for complex systems
Input Type: Digital input, supporting both sinking and sourcing configurations
Input Voltage Range: 24 VDC, compatible with a variety of control systems
Current Consumption: 300 mA maximum, ensuring efficient energy use
Operating Temperature Range: -20°C to +60°C, suitable for harsh environments
Humidity Range: 10 to 95% RH (non-condensing), ensuring stable performance in diverse conditions
Replaced by: Yokogawa SDV144-S63, an advanced version with improved capabilities

High-Speed Performance and Reliable Data Acquisition

With 16 digital input channels, the Yokogawa SDV144-S33 supports fast and reliable data acquisition for a wide range of industrial applications. Its 300 mA current consumption ensures power-efficient operation, and it processes signals quickly without compromising on performance. Additionally, its input voltage range of 24 VDC allows easy integration into existing control systems, enabling smooth signal processing.

Moreover, the module’s ability to support both sinking and sourcing input configurations adds flexibility. This feature enables use in various setups, making it ideal for applications that require versatile input options.

Robust Design for Industrial Environments

The Yokogawa is designed for durability in harsh industrial conditions. It operates reliably in temperatures from -20°C to +60°C, making it suitable for a wide range of environments, from cold storage areas to high-temperature settings. Furthermore, it can perform efficiently in environments with humidity levels between 10% and 95% RH, ensuring it remains dependable in diverse industrial settings.

Importantly, each channel is isolated to minimize the risk of electrical noise and ground loops, which could otherwise disrupt performance. This feature enhances the overall reliability of the SDV144-S33, making it a dependable choice for critical applications.

Compact and Easy Integration

The Yokogawa is not only compact but also easy to install in systems with limited space. Its design allows it to fit in smaller control cabinets without compromising performance. Moreover, the module integrates seamlessly with your existing industrial control systems, reducing setup time and ensuring quick, hassle-free installation.

Technical Specifications

Specification	Value
Model	Yokogawa SDV144-S33
Number of Channels	16
Input Type	Digital input (sinking or sourcing)
Input Voltage Range	24 VDC
Current Consumption	300 mA maximum
Operating Temperature Range	-20°C to +60°C
Humidity Range	10 to 95% RH (non-condensing)
Replaced by	Yokogawa SDV144-S63

Ideal Applications for the Yokogawa SDV144-S33

The Yokogawa SDV144-S33 Digital Input Module is perfect for a wide range of industrial applications, such as:

Real-time factory automation systems
Safety monitoring and control processes
Equipment data collection and monitoring
Systems that require efficient, fast data input

Conclusion

The Yokogawa SDV144-S33 Digital Input Module combines reliability, high-speed performance, and compact design. It is ideal for industrial applications that require fast, accurate data acquisition and real-time control. Whether you are upgrading older systems or implementing new automation solutions, the SDV144-S33 provides the reliability and flexibility your operations need.
