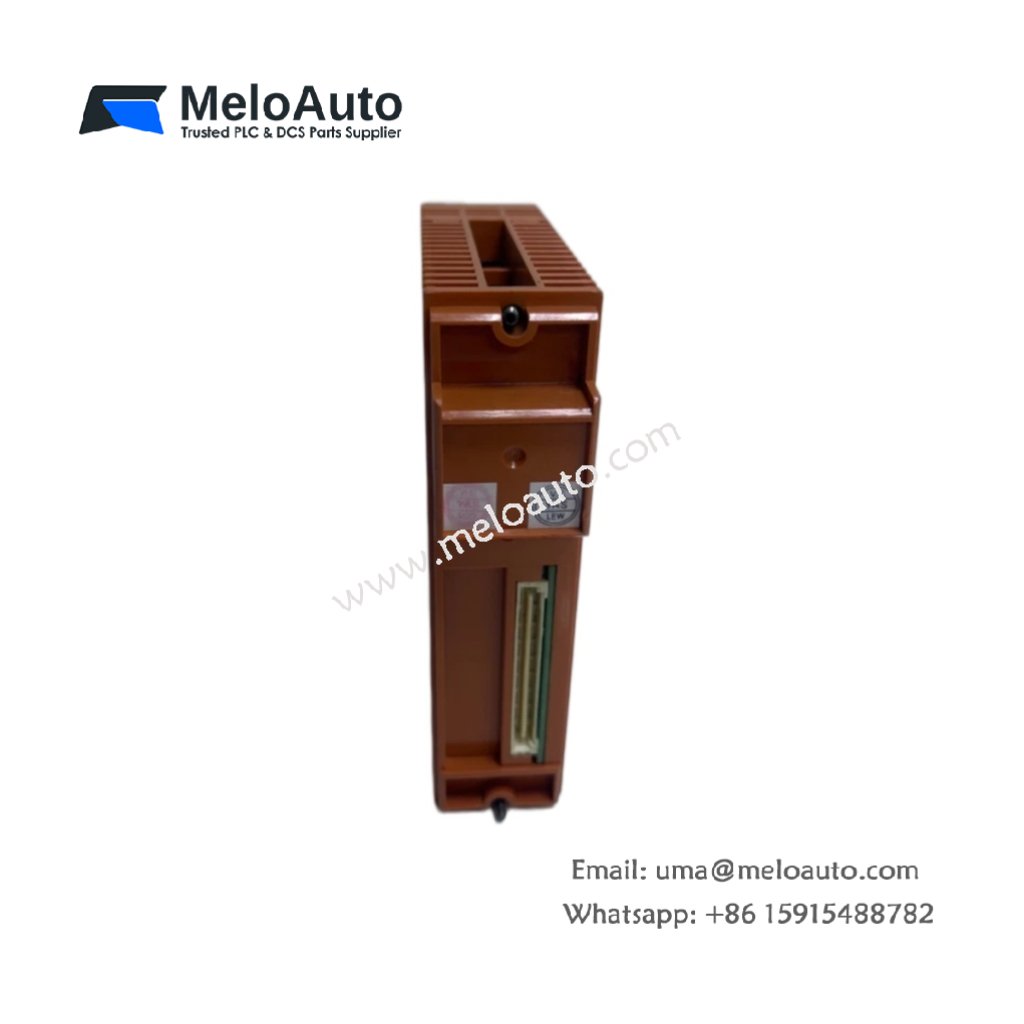

Yokogawa SAV144-S33 Voltage Input Module

The Yokogawa SAV144-S33 Voltage Input Module is engineered for precise voltage measurements in industrial automation systems. It features multiple input channels with robust isolation, providing accurate data acquisition and ensuring system reliability. This module supports a variety of voltage inputs, making it ideal for applications that require high-precision signal processing.

Key Features of the Yokogawa SAV144-S33 Voltage Input Module

The Yokogawa SAV144-S33 is designed for accurate voltage measurement in industrial settings. Below are the key technical specifications:

• Model: Yokogawa SAV144-S33
• Number of Input Channels: 16 channels with module isolation
• Rated Input Range: 1 to 5V / 1 to 10V
• Permissible Input Range: +30V
• Input Impedance During Power-ON: 1 MΩ
• Input Impedance During Power-OFF: 100 kΩ
• Rated Accuracy:
  • For 1 to 5V: ±4 mV
  • For 1 to 10V: ±9 mV
• Data Update Frequency: 40 ms
• Temperature Drift:
  • For 1 to 5V: ±4 mV/10°C
  • For 1 to 10V: ±9 mV/10°C
• Withstand Voltage: 1.5 kV AC between input signal and system for 1 minute
• Maximum Current Consumption:
  • 5V system: 300 mA
  • 24V system: 140 mA
• Weight:
  • 0.24 kg (with pressure clamp terminal block or MIL cable)
  • 0.29 kg (with signal cable interface adapter)
• External Connections: Pressure clamp terminal, MIL cable, or dedicated signal cable (KS1)

Reliable Voltage Measurements for Industrial Applications

The Yokogawa SAV144-S33 Voltage Input Module ensures accurate voltage measurements, even in high-demand environments. With 16 input channels, it supports both 1 to 5V and 1 to 10V voltage ranges. This makes it suitable for a variety of industrial applications, including process control and data acquisition.

Furthermore, the SAV144-S33 offers excellent isolation, ensuring that your system remains protected from electrical surges and noise. Its precise accuracy, with minimal drift over time, ensures consistent and reliable data acquisition, even in fluctuating temperatures.

Durability and Flexibility

The Yokogawa SAV144-S33 is designed to withstand industrial conditions. Its high withstand voltage of 1.5 kV AC provides protection against power surges, making it ideal for use in environments with unstable electrical conditions. Additionally, the module’s low current consumption ensures energy efficiency, whether operating on a 5V or 24V system.

Its flexible external connection options, such as pressure clamp terminals, MIL cables, and dedicated signal cables, make it easy to integrate into existing automation systems. This flexibility allows you to choose the most appropriate connection method based on your system’s configuration.

Ideal Applications for the Yokogawa SAV144-S33

The Yokogawa SAV144-S33 Voltage Input Module is suitable for a variety of industrial automation applications, including:

• Voltage measurement in process control systems
• Data acquisition and monitoring in industrial environments
• Energy management systems
• Industrial instrumentation and control
• Power quality monitoring systems
• Automation in manufacturing plants and factories

Conclusion

In summary, the Yokogawa SAV144-S33 Voltage Input Module is an essential component for accurate and reliable voltage measurement in industrial automation systems. With its high precision, excellent isolation, and flexible integration options, it provides efficient data acquisition for a wide range of applications. The SAV144-S33 ensures that your system operates with high reliability and energy efficiency, even in demanding environments.
