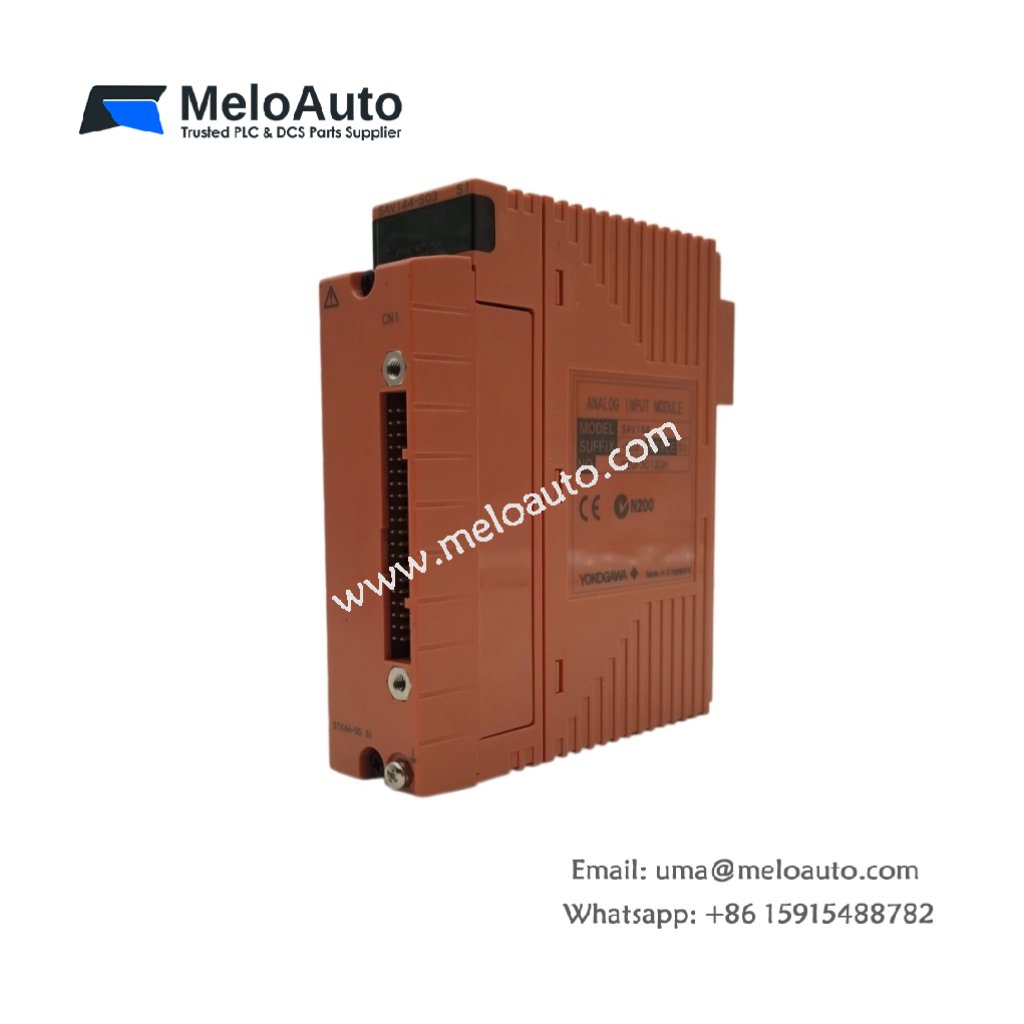

Yokogawa SAV144-S03 Processor Module

The Yokogawa SAV144-S03 Processor Module is a high-performance industrial component designed to optimize data processing in automation systems. It features advanced functionality with precise signal processing and fast data updates, making it essential for applications requiring reliable and accurate measurements. The SAV144-S03 supports various input ranges and offers robust performance across multiple environments.

Key Features of the Yokogawa SAV144-S03 Processor Module

The Yokogawa SAV144-S03 Processor Module is built for reliability and flexibility in industrial applications. It offers superior accuracy, high-speed data updates, and excellent isolation. Below are its critical technical specifications:

• Model: Yokogawa SAV144-S03
• Number of Input Channels: 16 channels, module isolation
• Rated Input Range: 1 to 5V / 1 to 10V
• Permissible Input Range: +30V
• Input Impedance During Power-ON: 1 MΩ
• Input Impedance During Power-OFF: 100 kΩ
• Rated Accuracy:
  • For 1 to 5V: ±4 mV
  • For 1 to 10V: ±9 mV
• Data Update Frequency: 40 ms
• Temperature Drift:
  • For 1 to 5V: ±4 mV/10°C
  • For 1 to 10V: ±9 mV/10°C
• Withstand Voltage: 1.5 kV AC between input signal and system for 1 minute
• Maximum Current Consumption:
  • 5V system: 300 mA
  • 24V system: 140 mA
• Weight:
  • Approx. 0.24 kg (For pressure clamp terminal block or MIL cable)
  • Approx. 0.29 kg (With signal cable interface adapter)
• External Connection: Pressure clamp terminal, MIL cable, or dedicated signal cable (KS1)

Reliable and High-Performance Data Processing

The Yokogawa SAV144-S03 Processor Module ensures accurate signal conversion and real-time data updates. It processes a wide range of input signals, including 1 to 5V and 1 to 10V inputs. With its high impedance during power-on and efficient temperature drift performance, the SAV144-S03 guarantees precision even in fluctuating conditions.

This module’s robust withstand voltage rating of 1.5 kV AC ensures safe operation in environments where electrical surges might occur. Additionally, it consumes low current, making it energy-efficient, even with multiple active channels.

Flexibility and Versatility for Industrial Applications

The Yokogawa SAV144-S03 Processor Module offers great versatility in terms of external connections. Whether using pressure clamp terminals, MIL cables, or dedicated signal cables (KS1), the module supports easy integration into various industrial systems. Its compact design allows for seamless installation and integration into tight spaces within control panels.

Ideal Applications for the Yokogawa SAV144-S03

The Yokogawa SAV144-S03 Processor Module is ideal for a variety of industrial automation applications, including:

• Process control systems
• Data acquisition and monitoring
• Factory automation setups
• Instrumentation for energy management
• Environmental control systems
• Measurement systems that require high accuracy

Conclusion

In conclusion, the Yokogawa SAV144-S03 Processor Module is a versatile, high-performance solution for precise signal processing in industrial environments. With fast data updates, reliable performance, and easy integration, it enhances the efficiency and accuracy of automation systems. This module’s robust specifications and durability make it an ideal choice for demanding industrial applications.
