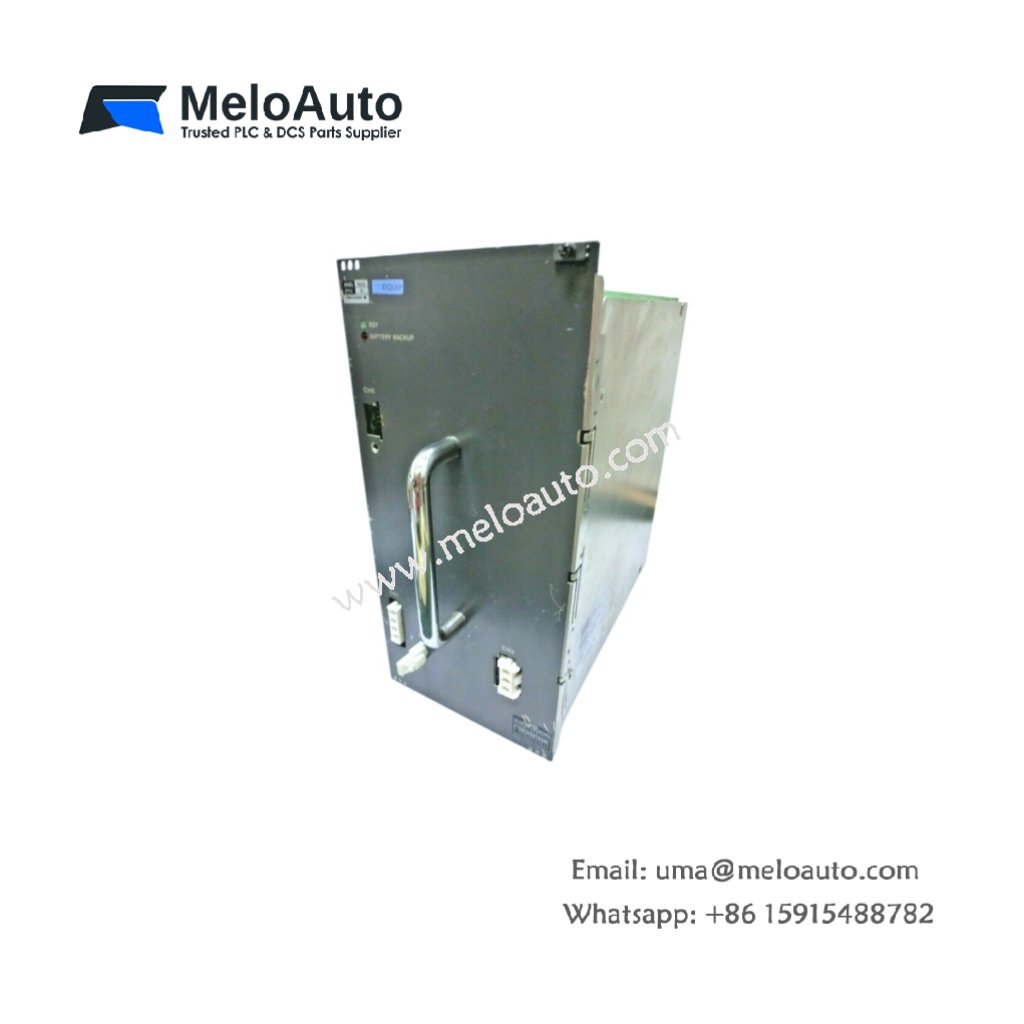

Yokogawa PW102 Digital Output Module

The Yokogawa PW102 is a robust 16-point digital output module, designed for use with Yokogawa CENTUM VP and CENTUM CS distributed control systems. Featuring a high-performance digital output circuit, it can drive high-current loads of up to 2A, making it suitable for critical applications like valve control and motor control. With advanced diagnostic and monitoring functions, the PW102 ensures reliable, uninterrupted operation in demanding industrial environments.

Key Features of the Yokogawa PW102

High Output Capacity: Each point drives up to 2A of current, capable of handling high-current loads for various control applications.
Comprehensive Diagnostics: Includes output current monitoring, short circuit detection, and open circuit detection, enhancing system reliability.
Dual-Redundant Configuration: Supports dual-redundant ESB bus configuration, improving fault tolerance and system availability.
Wide Compatibility: Seamlessly integrates with Yokogawa CENTUM VP and CENTUM CS control systems for streamlined operations.

Technical Specifications

Specification	Details
Model Number	PW102
Module Type	16-point Digital Output Module
Output Type	Current sink
Output Current	2A per point
Output Voltage	24V DC
Diagnostic Functions	Output current monitoring
	Short circuit detection
	Open circuit detection
	Module temperature monitoring
Configuration Support	Dual-redundant ESB bus configuration
System Compatibility	Yokogawa CENTUM VP and CENTUM CS
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Weight	Approx. 0.5 kg

Applications of the Yokogawa PW102

Valve Control: Ideal for controlling industrial valves that require high-current outputs.
Motor Control: Perfect for applications where precision motor control is essential, such as in pumps and conveyors.
Industrial Automation: Commonly used in Yokogawa CENTUM VP and CENTUM CS systems for automated control in industrial processes.
Safety Critical Operations: The diagnostic features make it suitable for safety-critical systems where system integrity is crucial.
