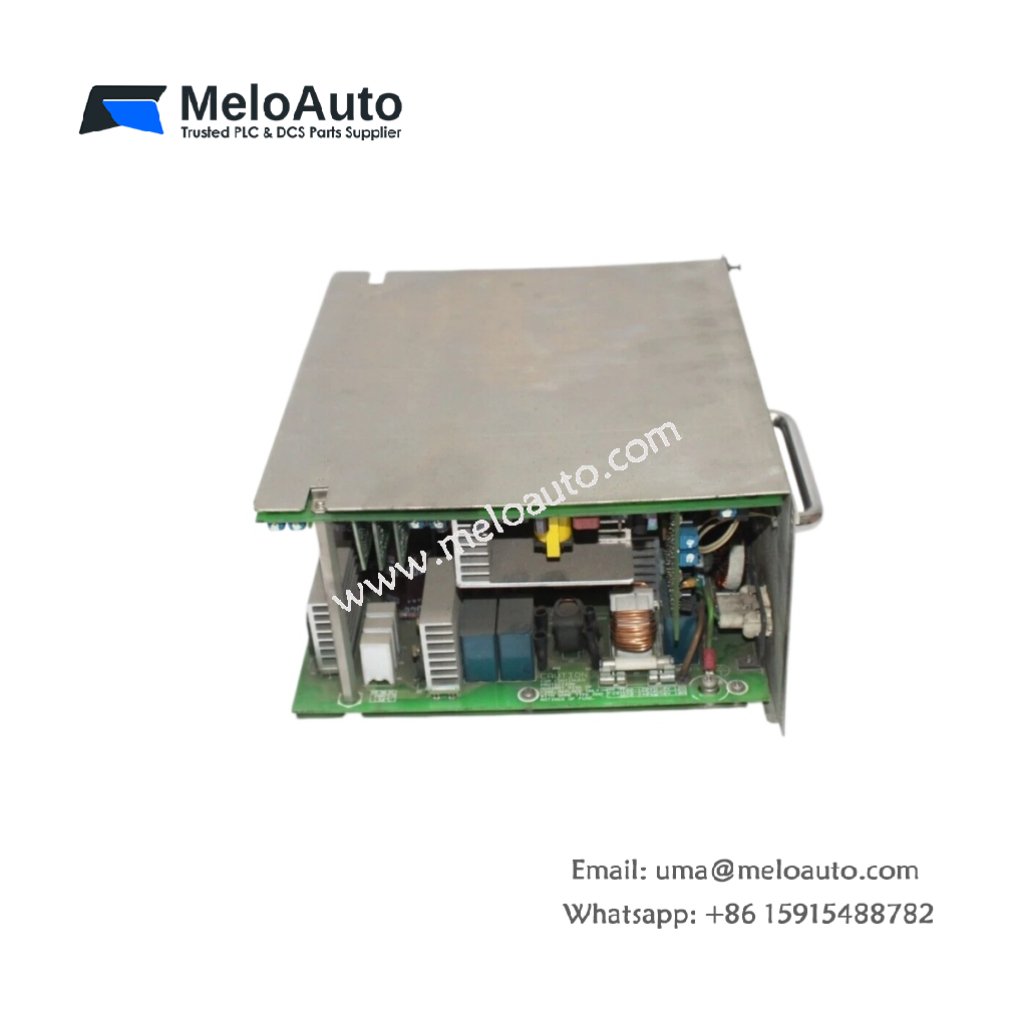

Yokogawa PW101 Power Supply Module

Overview

The Yokogawa PW101 Power Supply Module is designed to deliver reliable and consistent power to automation systems in industrial environments. With its high-efficiency performance, this module ensures that connected equipment receives stable voltage for optimal operation. Whether used in control systems, sensors, or other automation devices, the PW101 offers dependable power to support seamless operations.

Built with durability in mind, the PW101 can function in harsh environments while maintaining efficiency. Its compact design allows for easy installation and integration into various setups, making it an essential component for industrial automation.

Technical Specifications

Feature	Specification
Model	PW101
Product Type	Power Supply Module
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	24V DC
Rated Power	100W
Dimensions	5.1″ x 4.0″ x 2.2″ (12.9 x 10.2 x 5.6 cm)
Weight	0.6 kg (1.3 lbs)
Mounting Type	DIN Rail Mounting
Operating Temperature Range	-10°C to +50°C
Efficiency	≥ 85%
Short Circuit Protection	Yes

Key Features

The PW101 supports an input voltage range of 100-240V AC, ensuring compatibility with a variety of power sources.
It provides a stable 24V DC output voltage, delivering reliable power to connected devices.
With a rated power output of 100W, the PW101 meets the demands of most industrial applications while maintaining energy efficiency.
The module’s compact dimensions of 5.1″ x 4.0″ x 2.2″ (12.9 x 10.2 x 5.6 cm) and lightweight design (only 0.6 kg or 1.3 lbs) allow for easy installation in tight spaces.
Designed for industrial use, the PW101 operates within a temperature range of -10°C to +50°C, ensuring consistent performance even in challenging conditions.
The PW101 boasts an 85% efficiency rating, making it an energy-efficient solution for powering automation systems.
It includes short circuit protection, providing additional safety to both the module and connected equipment.

The Yokogawa PW101 Power Supply Module is an essential component for any automation system. Its reliable performance, energy efficiency, and safety features make it a valuable asset in industrial environments.
