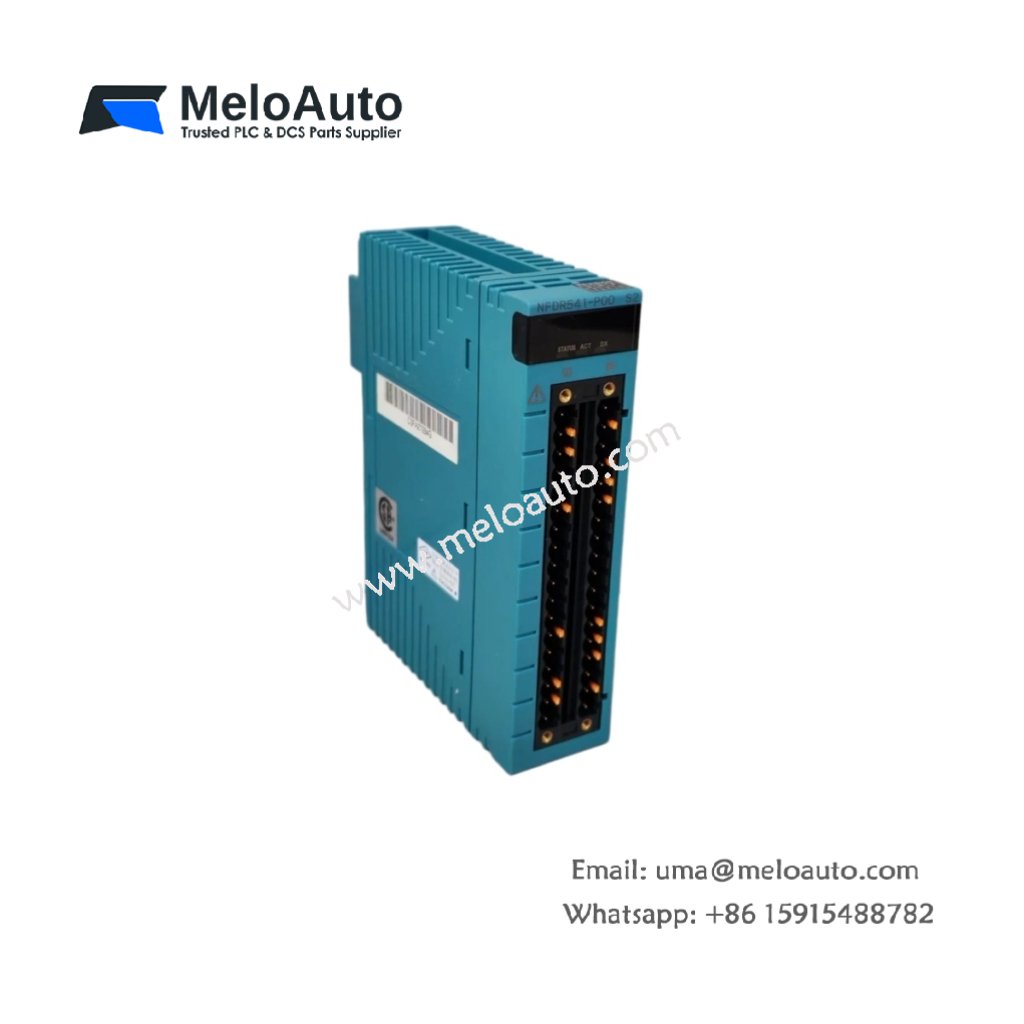

The Yokogawa NFDR541-P00 is an essential Relay Output Module designed for robust industrial applications. It offers reliable output control with 16 channels, ideal for use in a wide range of automation systems. This module excels in environments requiring stable performance, flexibility, and seamless integration with other industrial components.
Key Features of the Yokogawa NFDR541-P00 Relay Output Module
- 16 Output Channels: The Yokogawa NFDR541-P00 provides 16 output channels, each capable of controlling relay contacts (dry contacts). This feature offers versatile control for various automation applications.
- Wide Voltage Range: This module operates with both AC and DC voltages. For DC, it supports a voltage range from 24V to 110V. For AC, it accommodates a voltage range of 100V to 240V.
- High Switching Current: The module supports high switching currents for both AC and DC applications. It can handle up to 5A per channel (DC) and 3A per channel (AC), making it suitable for powerful devices.
- Superior Isolation: With an impressive 2000V AC isolation voltage between channels and power supply, the Yokogawa NFDR541-P00 ensures excellent protection against electrical noise and surges.
- Low Current Consumption: At only 780mA (at 5V DC), this module ensures efficient power usage, minimizing operational costs while maintaining high performance.
- Temperature Range: The Yokogawa NFDR541-P00 operates efficiently within a broad temperature range of -10°C to +55°C, providing reliability in diverse environmental conditions.
- Mounting Flexibility: Designed for ease of installation, the Yokogawa NFDR541-P00 supports DIN rail or panel mount configurations. This flexibility ensures compatibility with various control panel designs.
- Secure Connections: The module features pressure clamp terminals, ensuring a secure and reliable connection to other system components.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Yokogawa NFDR541-P00 |
| Function | Relay Output Module |
| Output Channels | 16 |
| Output Type | Relay contacts (dry contact) |
| DC Rated Voltage Range | 24V to 110V |
| AC Rated Voltage Range | 100V to 240V |
| Max Switching Current (DC) | 5A per channel |
| Max Switching Current (AC) | 3A per channel |
| Isolation Voltage | 2000V AC (between channels and power supply) |
| Current Consumption | 780mA (at 5V DC) |
| Operating Temperature Range | -10°C to +55°C |
| Mounting | DIN rail or panel mount |
| Connection | Pressure clamp terminal |
| Dimensions | 1.3 in x 5.0 in x 5.0 in (3.3 cm x 12.7 cm x 12.7 cm) |
| Weight | 0.3 kg (11.7 oz) |
Applications
The Yokogawa NFDR541-P00 Relay Output Module is ideal for various industrial applications, including automated control systems, machinery control, and process automation. It is commonly used in industries such as manufacturing, energy, and utilities, where precise control of relays is critical.
About the Manufacturer
Yokogawa is a renowned global leader in industrial automation, providing high-performance products for process control, measurement, and optimization. The Yokogawa NFDR541-P00 exemplifies their commitment to reliability and innovation in the industrial automation sector.
