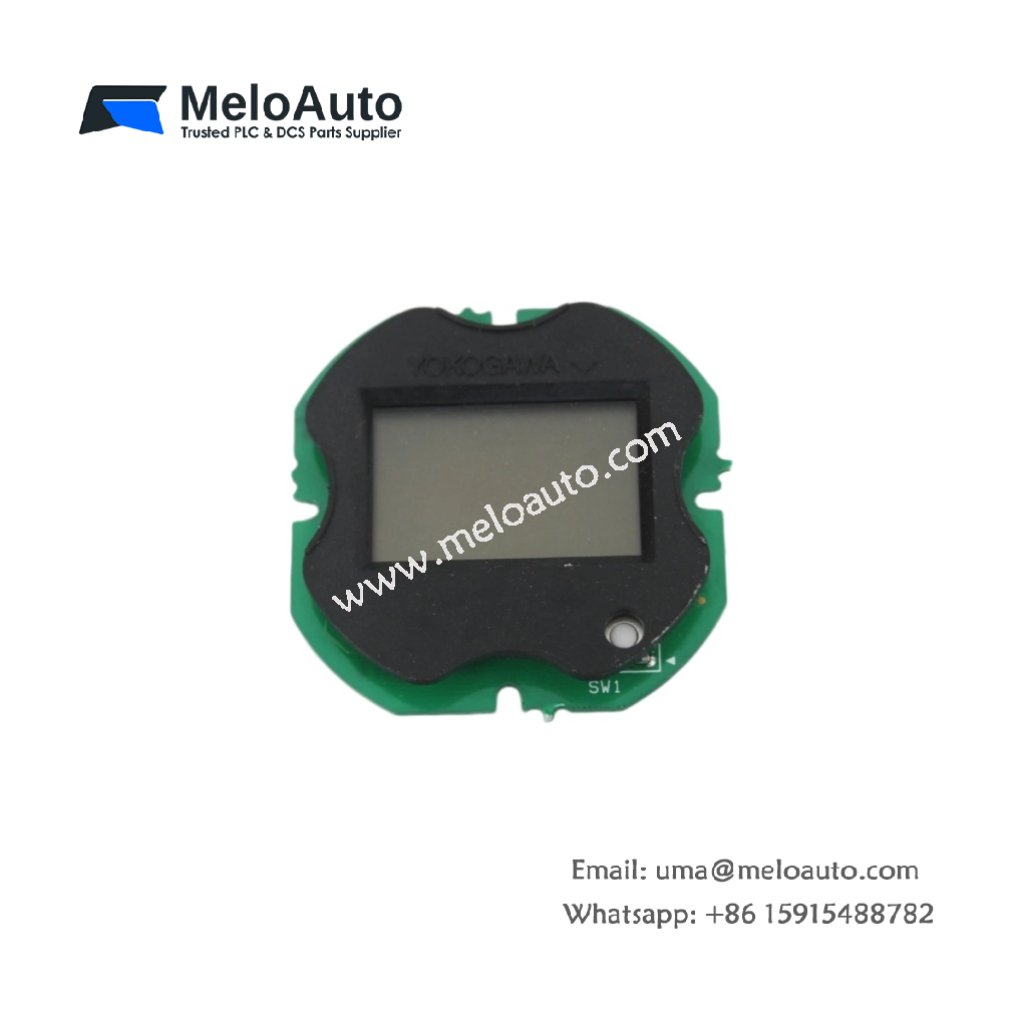

Yokogawa F9342L-02 Transmitter Display Module

The Yokogawa F9342L-02 is a high-performance transmitter display module designed for use in demanding industrial applications. It integrates seamlessly with various Yokogawa process control systems, providing real-time data display for critical process monitoring. This compact, durable module offers both visual and operational advantages in a variety of automation environments.

Product Overview

Model: Yokogawa F9342L-02
Category: Transmitter Display Module
Manufacturer: Yokogawa

With its robust design, the Yokogawa F9342L-02 is built to withstand harsh industrial environments. Its high-quality display ensures clear, accurate readings for operators, supporting effective decision-making and system control. This module integrates well with other Yokogawa process control components, contributing to a fully connected automation solution.

Key Features

High-quality Display: The Yokogawa F9342L-02 offers a clear and precise display, making it easy to read real-time data in various lighting conditions.
Compact and Durable: With a space-saving design, it is easy to integrate into existing systems while offering durability against environmental stresses.
Versatile Applications: Ideal for use with Yokogawa transmitters, process controllers, and other related equipment, this module ensures consistent performance.
User-Friendly: Simple to install and operate, enhancing efficiency in process monitoring and control.

Technical Specifications

Parameter	Specification
Product Type	Transmitter Display Module
Product Name	Yokogawa F9342L-02
Manufacturer	Yokogawa
Operating Temperature Range	-20°C to 60°C (-4°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Atmospheric Pressure	800 to 1,060 hPa
Dimensions	100 mm (L) x 80 mm (W) x 30 mm (H)
Weight	0.3 kg
Display Type	LCD Display
Applications	Process control systems, transmitters, industrial automation

Performance and Reliability

The Yokogawa F9342L-02 operates effectively across a wide range of temperatures, from -20°C to 60°C, ensuring stability in both low and high temperatures. This feature makes it highly suitable for various industrial environments, including those that face fluctuating temperatures. Additionally, it can endure storage temperatures from -40°C to 85°C, ensuring long-term durability and reliability.

Easy Installation and Maintenance

Designed for straightforward integration, the Yokogawa F9342L-02 simplifies installation into existing control systems. Its robust design ensures that maintenance is minimal, thus reducing system downtime and operational costs. This module’s user-friendly interface makes it easy for operators to monitor and adjust settings with minimal effort.

Applications

The Yokogawa F9342L-02 excels in applications that require accurate process data display, such as:

Process Control Systems: Provides real-time monitoring of process parameters for effective control.
Transmitters: Interfaces seamlessly with Yokogawa transmitters to display essential data.
Industrial Automation: Ideal for use in industrial environments where continuous monitoring is required.

Conclusion

In conclusion, the Yokogawa F9342L-02 is an essential component for any industrial process control system. Its high-quality display, durable design, and seamless integration with other Yokogawa components make it an ideal choice for real-time data monitoring and control.
