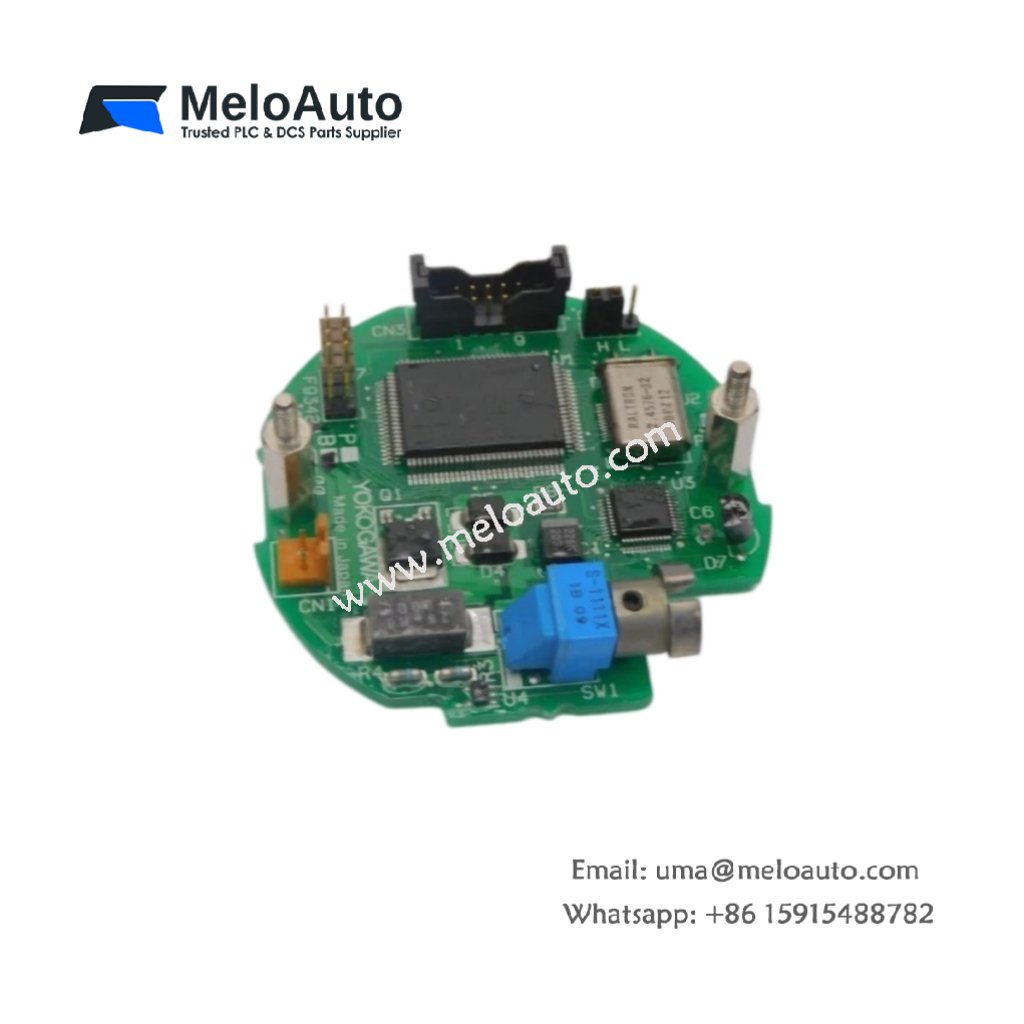

The Yokogawa F9342BL is a high-performance LCD board assembly designed for seamless integration into Yokogawa DCS systems and process analyzers. Additionally, it is compatible with a wide range of industrial applications, including data acquisition systems, remote indicators, and integral indicators. With its advanced features, the Yokogawa F9342BL provides reliable, precise display functionality, making it an essential component in process control environments.
Key Features and Specifications
- Model: Yokogawa F9342BL
- Category: LCD Board Assembly
- Manufacturer: Yokogawa
The Yokogawa F9342BL is specifically engineered to meet the needs of industrial settings. By offering excellent clarity, precise performance, and robust design, this LCD board assembly supports Yokogawa DCS systems and various process analyzers. Below are its detailed technical specifications:
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Yokogawa F9342BL |
| Product Type | LCD Board Assembly |
| Weight | 0.2 kg |
| Dimensions (L x W x H) | 100 mm x 80 mm x 30 mm |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Atmospheric Pressure | 800 to 1,060 hPa |
| Applications | Yokogawa DCS, Process Analyzers, Data Acquisition Systems, Control Systems |
High-Resolution Display and Superior Viewing
The Yokogawa F9342BL features a high-resolution LCD display, ensuring clear and precise readings even in demanding conditions. Furthermore, its wide viewing angle provides excellent visibility from multiple angles, improving user experience and control efficiency. Thanks to its backlight, the display remains visible in low-light conditions, offering reliable operation in various environmental settings.
In addition, the compact dimensions of 100 mm x 80 mm x 30 mm and its light weight of 0.2 kg make the Yokogawa F9342BL easy to install, integrate, and maintain. This makes it a perfect fit for diverse applications, including Yokogawa DCS, process analyzers, and other industrial control systems.
Built for Harsh Environments
The Yokogawa F9342BL is designed to perform consistently under tough industrial conditions. It operates effectively within an operating temperature range of 0°C to 50°C, while storage temperatures can range from -20°C to 70°C. Furthermore, it supports a relative humidity range of 5% to 95% (non-condensing), ensuring robust performance across various industrial environments.
Additionally, the Yokogawa F9342BL can function under atmospheric pressures ranging from 800 to 1,060 hPa, ensuring stable performance even in fluctuating pressure conditions.
Easy Installation and Low Maintenance
One of the key advantages of the Yokogawa F9342BL is its ease of installation and low maintenance requirements. The design is simple yet highly effective, ensuring quick setup and minimal downtime. As a result, the LCD board assembly contributes to the overall reliability and efficiency of your control systems.
Why Choose the Yokogawa F9342BL?
- High-Resolution Display: The Yokogawa F9342BL provides a sharp, clear display for accurate readings.
- Wide Viewing Angle: View the display from different angles without losing clarity, enhancing operational efficiency.
- Backlight for Low-Light Conditions: The built-in backlight ensures readability in dark environments.
- Compact and Lightweight: Measuring 100 mm x 80 mm x 30 mm and weighing just 0.2 kg, the assembly is easy to integrate.
- Reliable in Harsh Conditions: It operates reliably in a wide range of temperature and humidity conditions.
- Simple Installation and Maintenance: Quick to install and easy to maintain, ensuring long-term reliability.
Conclusion
The Yokogawa F9342BL LCD board assembly is a versatile and reliable solution for industrial control systems. With its high-resolution display, wide viewing angle, and durable construction, it ensures seamless performance in Yokogawa DCS systems, process analyzers, and other applications. Its easy installation and minimal maintenance make it a smart investment for industries that require high-performance displays in demanding environments.
