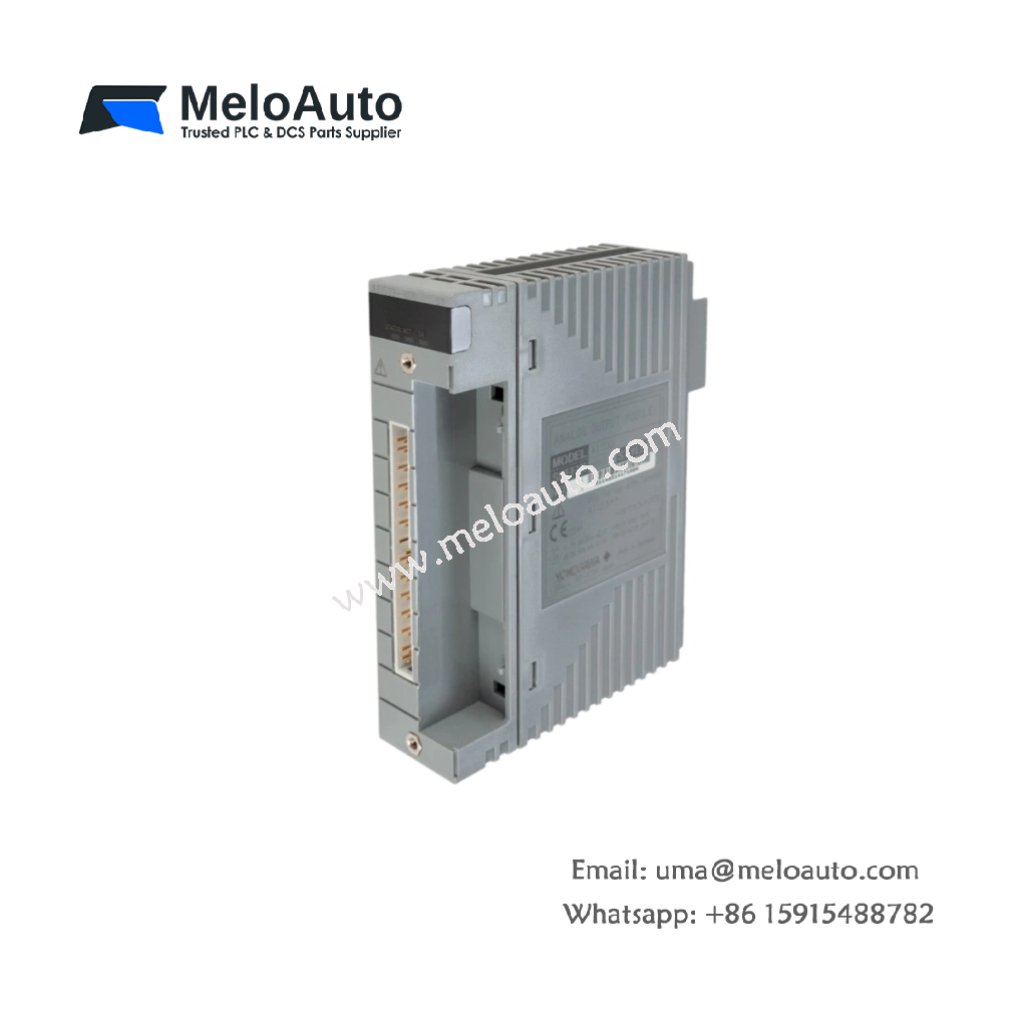

The Yokogawa ASI533-H00 Analog Output Module provides accurate and reliable output for industrial applications. This module is designed for seamless integration into control systems, offering excellent performance for managing output signals and ensuring smooth operation in demanding environments.
Key Features of the Yokogawa ASI533-H00 Analog Output Module
- High-Precision Output: The Yokogawa ASI533-H00 features 8 isolated output channels. Each channel offers a 4-20mA output signal, ensuring precise control in various processes.
- Accurate and Reliable: The output accuracy of +48µA provides consistent and reliable data, even in high-demand applications.
- Fast Response Time: The step response time of just 100ms ensures quick adjustments to changing conditions, enhancing overall system performance.
- Data Update Speed: This module updates data every 10ms, offering timely control responses.
- Temperature Stability: The module offers +16µA per 10°C temperature drift, maintaining stable performance in varying temperature conditions.
- Durability and Reliability: With a withstanding voltage of 1500V AC, the Yokogawa ASI533-H00 ensures robust protection for reliable long-term operation.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Yokogawa ASI533-H00 |
| Output Channels | 8 (Isolated) |
| Output Signal | 4-20mA |
| Maximum Output Current | 23mA |
| Allowable Load Resistance | 0-7500Ω (at 20mA); 0-600Ω (at 23mA) |
| Accuracy | ±48µA |
| Step Response Time | 100ms |
| Data Update Period | 10ms |
| Temperature Drift | +16µA per 10°C |
| Withstanding Voltage | 1500V AC |
| Current Consumption (5V DC) | 150mA |
| Current Consumption (24V DC) | 350mA |
| Dimensions | 107.5 x 130 x 32.8 mm |
| Weight | 0.5 kg |
Applications
The Yokogawa ASI533-H00 Analog Output Module is suitable for a wide range of industrial applications, particularly in environments that demand high accuracy and reliability:
- Industrial Automation Systems: Ideal for controlling processes that require precise output control, such as temperature or pressure regulation.
- Process Control Systems: Perfect for industries that rely on continuous monitoring and adjustments, including chemical, oil, and gas industries.
- Control Systems for Manufacturing: Suitable for controlling actuators, valves, and other devices requiring consistent and precise output.
About the Manufacturer
Yokogawa is a global leader in industrial automation, offering high-quality and innovative solutions. The Yokogawa ASI533-H00 is an example of their dedication to providing reliable and accurate products that meet the rigorous demands of industrial applications.
