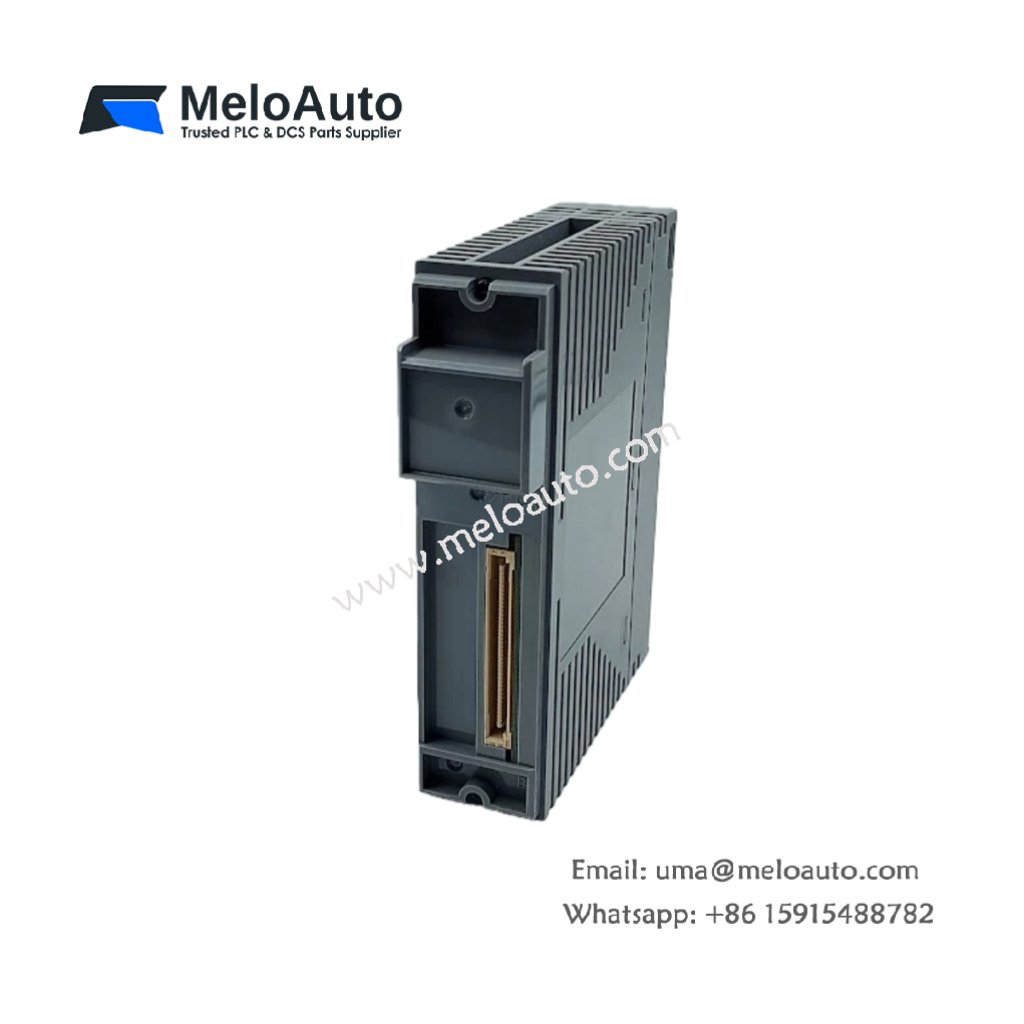

Yokogawa ASI533 Analog Output Module

The Yokogawa ASI533 is a robust analog output module designed for industrial automation systems. It takes digital signals from a programmable logic controller (PLC) and converts them into accurate analog outputs. These outputs, whether voltage or current, control various industrial devices such as actuators and valves.

Key Features of the Yokogawa ASI533

The ASI533 offers outstanding versatility and reliability, making it an ideal solution for industrial applications. This module provides precise and stable analog signals for controlling critical industrial devices.

• Digital to Analog Conversion: The ASI533 efficiently converts digital signals into voltage or current outputs for smooth control of various devices.
• Wide Output Range: It supports 0 to 10 V for voltage outputs and 4 to 20 mA for current outputs, making it suitable for different applications.
• High Accuracy: It delivers highly accurate output signals, ensuring precision and stable operation in complex automation systems.

Additionally, the ASI533 integrates easily into existing industrial control systems, enhancing overall performance.

Electrical and Performance Specifications

The ASI533 excels in electrical characteristics, providing precise analog output conversion and rapid data processing.

• Voltage Output: The module provides an output voltage range of 0 to 10 V, ensuring accurate control over connected devices.
• Current Output: It also supports an output range of 4 to 20 mA, a widely used signal in industrial environments.
• Output Accuracy: The module guarantees precise accuracy for both voltage and current outputs, ensuring reliable system performance.
• Response Time: With a quick step response time of 100 ms, the ASI533 adapts quickly to changing control inputs.
• Data Update Period: It updates its data every 10 ms, offering near-real-time control and monitoring.

Furthermore, the ASI533 operates efficiently with a 24 V DC power supply, ensuring stable performance even under variable conditions.

Environmental and Physical Specifications

The ASI533 is engineered for durability and easy installation in challenging industrial environments.

• Temperature Range: The module operates effectively within an ambient temperature range of -20°C to 70°C (-4°F to 158°F).
• Compact Size: With its compact design, the ASI533 fits easily into control panels, even in space-constrained setups.
• Weight: The ASI533 weighs approximately 0.25 kg, making installation straightforward.
• Housing: It comes housed in a rugged enclosure, protecting it from environmental factors such as dust and moisture.

These features ensure that the ASI533 remains reliable, even in the toughest industrial conditions.

Technical Specifications

Manufacturer Information

The Yokogawa ASI533 is manufactured by Yokogawa, a global leader in industrial automation. Yokogawa is renowned for delivering high-performance automation components. The ASI533 is a product of their commitment to providing precise and reliable solutions for industrial control systems.
