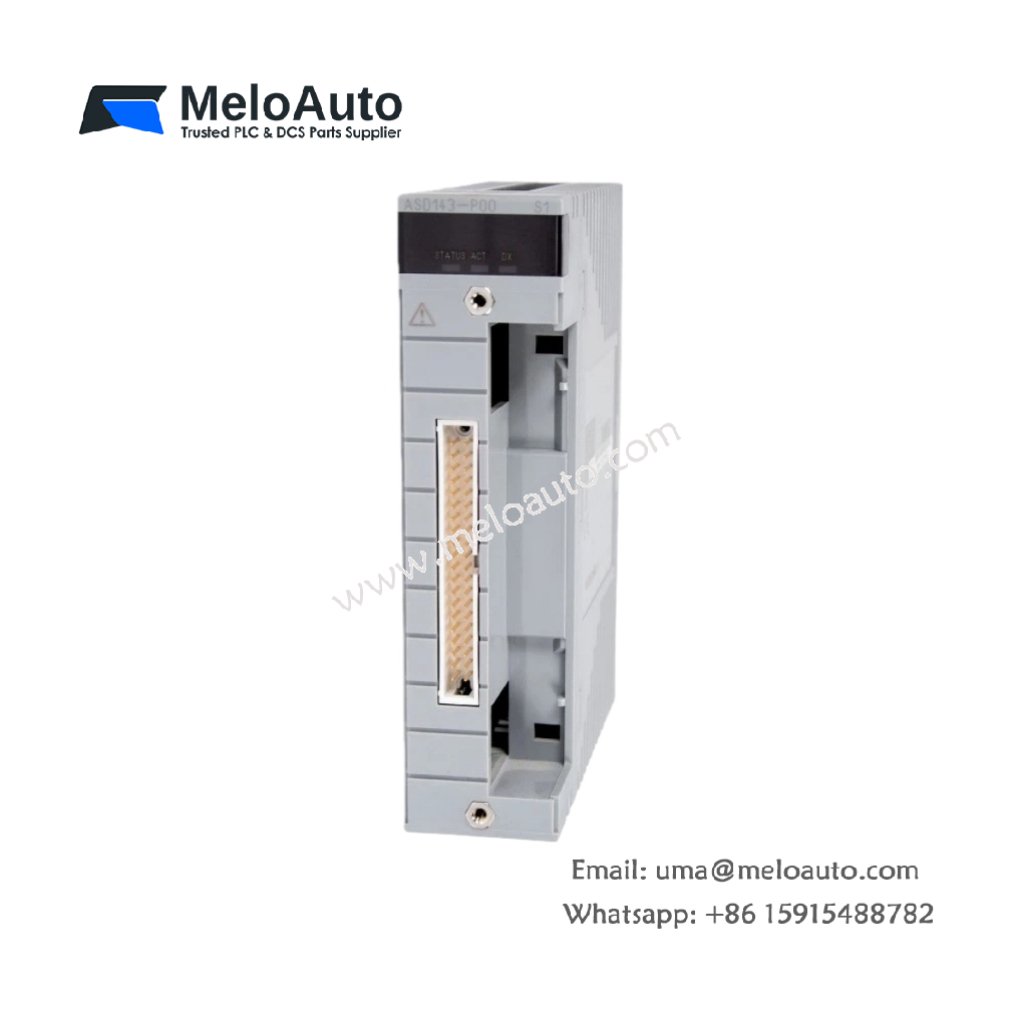

Yokogawa ASD533 Digital Output Module

The Yokogawa ASD533 is a high-performance digital output module designed specifically for Yokogawa’s CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This module ensures reliable, isolated digital outputs, which are critical for precise control in industrial automation applications. Moreover, it excels in environments that demand stability and high performance.

Key Features of the Yokogawa ASD533

The ASD533 provides 8 output channels, offering significant flexibility for various applications. Additionally, it supports both sink and source output types, allowing it to accommodate different control needs.

• Output Voltage: The module ensures U > 12 V at I = 40 mA, which guarantees reliable output even under heavy load conditions.
• Isolation: The ASD533 incorporates built-in isolation, which enhances system protection and minimizes the risk of electrical interference.
• Output Current: With a maximum output current of 1 A, the module is capable of driving various loads with consistent reliability.

In addition to these core features, the ASD533 operates on 24 VDC, ensuring it integrates smoothly into your existing automation system.

Electrical and Communication Features

The ASD533 is engineered to perform under diverse electrical conditions. It supports essential communication protocols, providing compatibility with a wide range of automation systems.

• Power Supply: The module runs on 24 VDC ±10%, which ensures stable operation even with varying power levels.
• Communication Protocols: It supports both Modbus RTU and Modbus TCP, offering easy integration into existing communication networks.
• Operating Temperature Range: The ASD533 can operate efficiently in temperatures ranging from -20°C to 70°C (-4°F to 158°F), making it ideal for various industrial environments.

These features enable the ASD533 to provide consistent performance, even in harsh environmental conditions, ensuring reliability in critical applications.

Compact Design and Dimensions

The ASD533 is designed for easy installation, boasting a compact form factor that fits well into most control panels and systems. Despite its small size, the module offers exceptional performance without taking up excessive space.

• Dimensions: The module measures 5.0″ x 6.0″ x 10.0″ (12.7 cm x 15.2 cm x 25.4 cm), which allows it to fit comfortably within space-limited installations.
• Weight: Its lightweight design ensures effortless handling and quick setup.

These physical attributes ensure the ASD533 can be installed quickly while maintaining robust functionality in your industrial system.

Technical Specifications

Manufacturer Information

The Yokogawa ASD533 is a product of Yokogawa, a global leader in industrial automation solutions. Known for its innovative technology, Yokogawa delivers products like the ASD533 to ensure high reliability and superior performance across a wide range of industrial applications.
