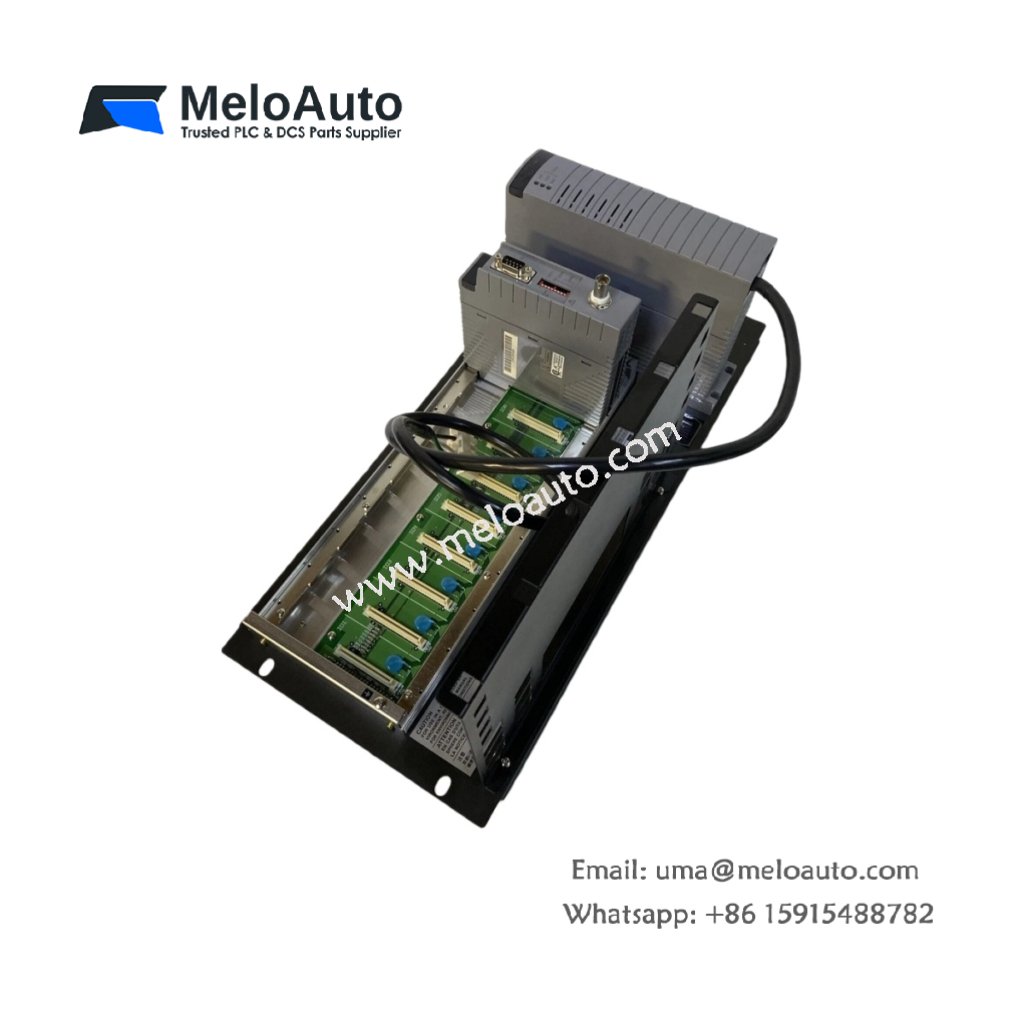

Yokogawa ANR10S ER Bus Node Unit for Industrial Automation

Overview

The Yokogawa ANR10S is a cutting-edge ER Bus Node Unit designed to enhance communication in industrial automation systems. It provides seamless, real-time data exchange between field devices and the central control unit via the ER bus. Thanks to its high reliability and ease of integration, this unit is perfect for critical applications where system uptime is essential.

Key Features

Seamless Communication: The ANR10S ensures smooth, continuous communication between field devices and control units, effectively reducing delays in data transmission.
Dual Power Supply Options: It supports both 100-120V AC and 24V DC input, making it versatile enough to meet the diverse power requirements of industrial systems.
Compact and Space-Efficient Design: The ANR10S is housed in a 19-inch rack-mountable chassis, which allows for efficient space utilization in control rooms and industrial environments.
Wide Operating Temperature Range: It operates in temperatures ranging from -20°C to +70°C, making the ANR10S reliable in both hot and cold industrial settings.
Energy-Efficient Operation: With a power consumption of 200 VA at 100-120V AC and 5.5A at 24V DC, the ANR10S ensures that it uses energy efficiently without compromising performance.

Technical Specifications

Parameter	Specification
Model Number	ANR10S
Type	ER Bus Node Unit
Dimensions (W x H x D)	438 mm x 133 mm x 425 mm
Weight	10 lbs
Mounting	19-inch rack-mountable chassis
Communication Protocol	ER Bus
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Power Supply	100-120 V AC, 24 V DC
Electric Power Consumption	200 VA (100-120V AC), 5.5A (24V DC)

Applications

The Yokogawa ANR10S is ideal for use in industrial automation systems that require highly reliable communication. It excels in process control, data acquisition, and real-time monitoring applications. With dual-redundant ER bus communication, the ANR10S guarantees uninterrupted data flow, ensuring consistent system operation in industries such as energy, manufacturing, and process control.

Conclusion

In summary, the Yokogawa ANR10S ER Bus Node Unit provides robust communication for industrial automation systems. Its flexible power supply options, energy-efficient operation, and wide operating temperature range make it suitable for demanding environments. The ANR10S ensures that your industrial systems operate smoothly, reliably, and without interruptions.
