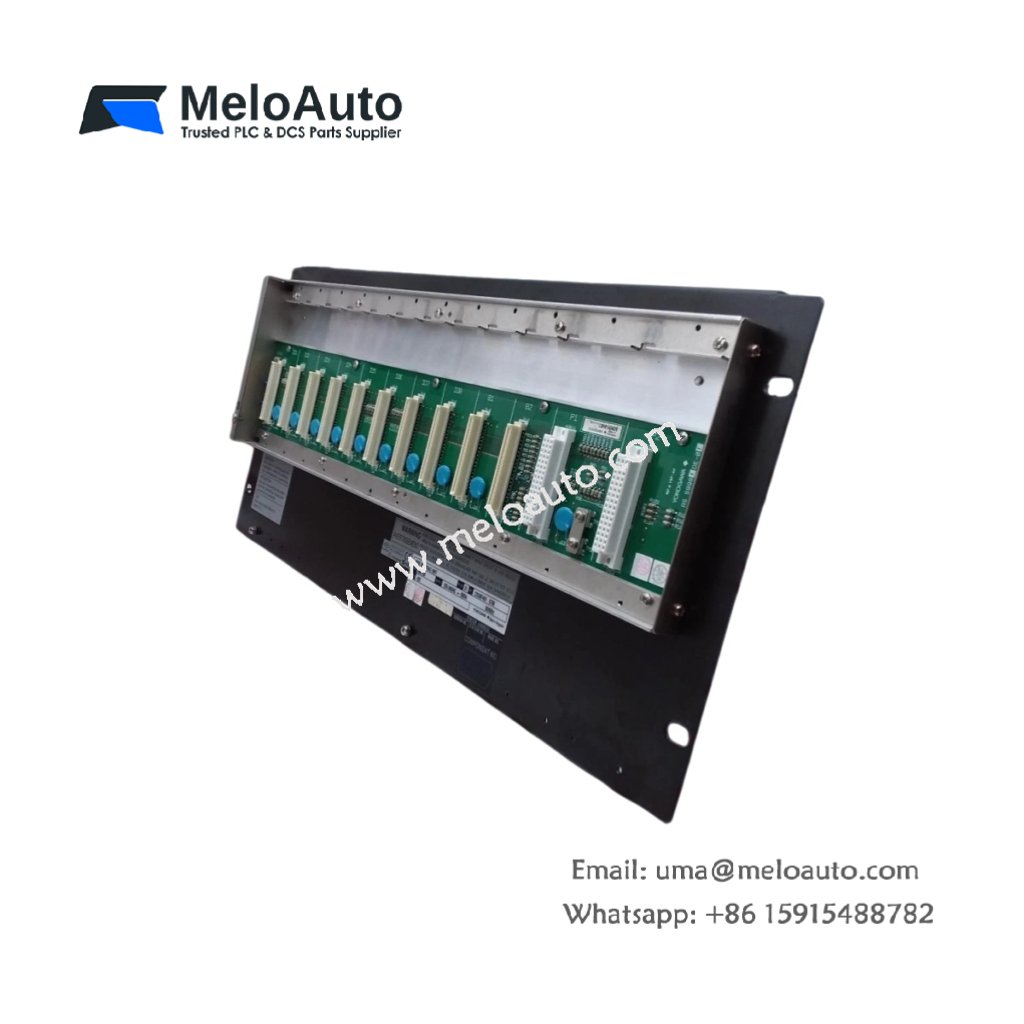

Yokogawa ANR10D Node Interface Unit for CENTUM VP Series

Overview

The Yokogawa ANR10D is a high-performance Node Interface Unit (NIU) designed for seamless integration into industrial applications. As part of the CENTUM VP series, it supports dual-redundant ER bus communication, providing reliable and uninterrupted operation. This unit excels in environments where data continuity and fault tolerance are essential, ensuring smooth integration and system reliability.

Key Features

Dual-Redundant Communication: The ANR10D utilizes dual-redundant ER bus communication, significantly improving system reliability by minimizing potential data loss.
Compact and Versatile Design: Thanks to its 19-inch rack-mountable chassis, the ANR10D integrates easily into standard industrial setups, saving space while offering optimal functionality.
Wide Operating Temperature Range: The unit operates within a wide temperature range of -20°C to +70°C, making it suitable for use in diverse and harsh industrial environments.
Reliable Power Supply: The ANR10D offers flexible power supply options, supporting both 100-120V AC and 24V DC input, ensuring compatibility with various industrial systems.
Energy Efficiency: With a power consumption of 200 VA at 100-120V AC and 5.5A at 24V DC, the ANR10D provides energy-efficient performance without compromising reliability.

Technical Specifications

Parameter	Specification
Model Number	ANR10D-420/NDEL
Type	Node Interface Unit (NIU)
Dimensions (W x H x D)	438 mm x 133 mm x 425 mm
Weight	10 lbs
Mounting	19-inch rack-mountable chassis
Communication Protocol	Dual-redundant ER bus
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Power Supply	100-120 V AC, 24 V DC
Electric Power Consumption	200 VA (100-120V AC), 5.5A (24V DC)

Applications

The Yokogawa ANR10D is ideal for industrial automation, process control, and monitoring systems that demand high reliability. Thanks to its dual-redundant communication system, it ensures continuous operation in mission-critical environments. Whether used in process monitoring or control systems, the ANR10D guarantees seamless performance, even in the most demanding conditions.

Conclusion

In conclusion, the Yokogawa ANR10D Node Interface Unit offers superior performance and reliability for industrial automation systems. By providing dual-redundant ER bus communication, flexible power options, and a broad temperature range, it ensures that systems operate smoothly and without interruption.
