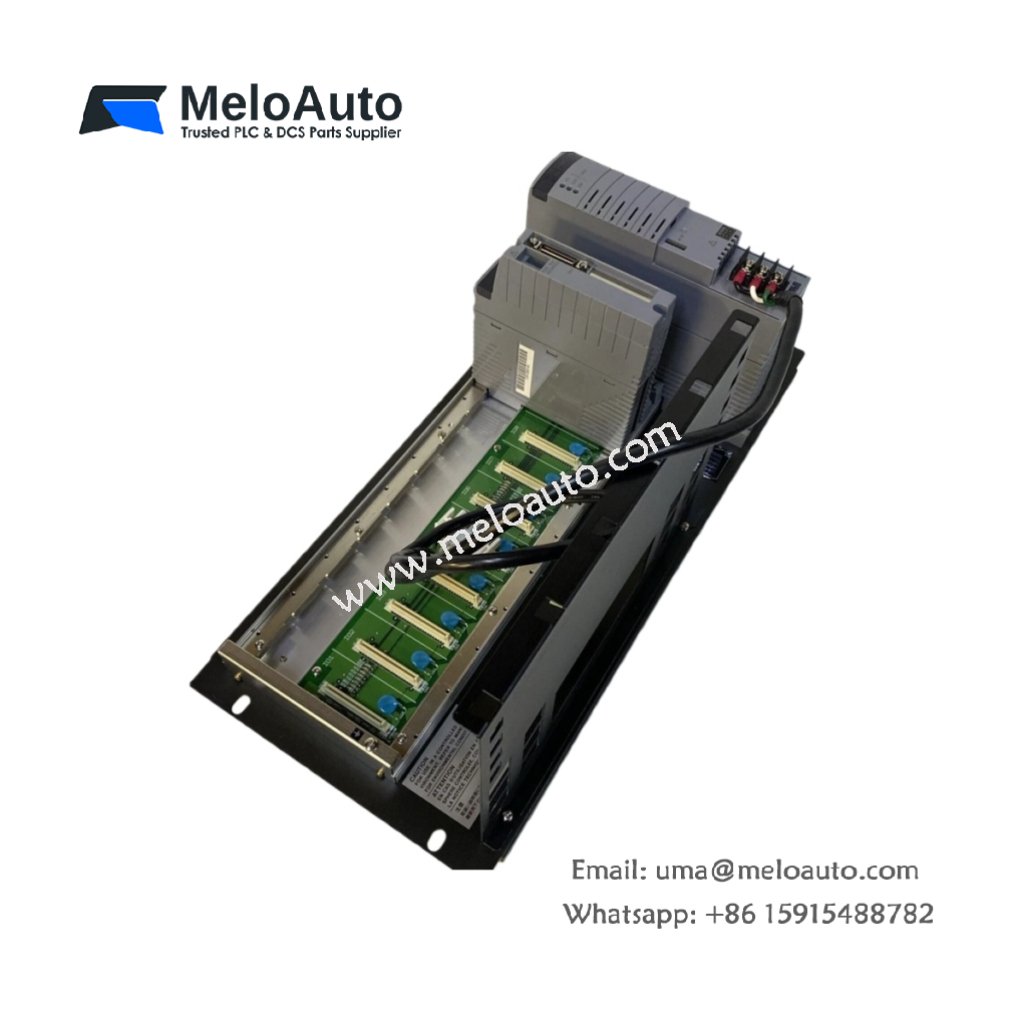

Yokogawa ANB10S ESB Bus Node Unit for N-I0/FI0 Systems

Description

The Yokogawa ANB10S is an advanced ESB Bus Node Unit designed specifically for N-I0/FI0 systems. It facilitates seamless communication between field devices and the Field Control Unit (FCU) via the ESB bus. Additionally, the ANB10S ensures reliable power supply to I/O modules, optimizing the performance and efficiency of industrial automation systems.

Key Features

Communication Function: The ANB10S enables smooth communication between analog I/O and contact I/O signals, ensuring efficient data exchange with the FCU.
Power Supply Options: Choose from three reliable power supply options, including 100-120 V AC, 220-240 V AC, or 24 V DC, depending on system requirements.
Flexible Mounting: The ANB10S is designed for 19-inch rack mounting, making it easy to integrate into existing industrial setups.
Redundancy Configurations: Available in both single and dual-redundant configurations, the ANB10S offers enhanced reliability and system uptime.
Environmental Resistance: Supports the ISA Standard G3 option, enabling it to operate in extended temperature ranges from -20°C to 70°C, ideal for harsh industrial environments.

Technical Specifications

Parameter	Specification
Model Number	ANB10S
Type	ESB Bus Node Unit
Communication Type	Analog I/O and Contact I/O Signals to FCU
Power Supply Options	100-120 V AC, 220-240 V AC, 24 V DC
Mounting Type	19-inch Rack Mountable
Redundancy	Single or Dual-Redundant Configurations
Temperature Range	-20°C to 70°C (ISA Standard G3)

Applications

The Yokogawa ANB10S is an essential component for industrial automation systems that require reliable communication between field devices and the Field Control Unit. It is particularly suited for applications in N-I0/FI0 systems, where consistent power and data exchange are critical. Its wide temperature range and redundancy options make it perfect for use in demanding environments, ensuring optimal system performance even under harsh conditions.

Conclusion

In conclusion, the Yokogawa ANB10S ESB Bus Node Unit provides exceptional communication and power supply solutions for industrial automation systems. With its versatile power options, flexible redundancy configurations, and rugged environmental resistance, the ANB10S ensures reliable operation in diverse industrial settings.
