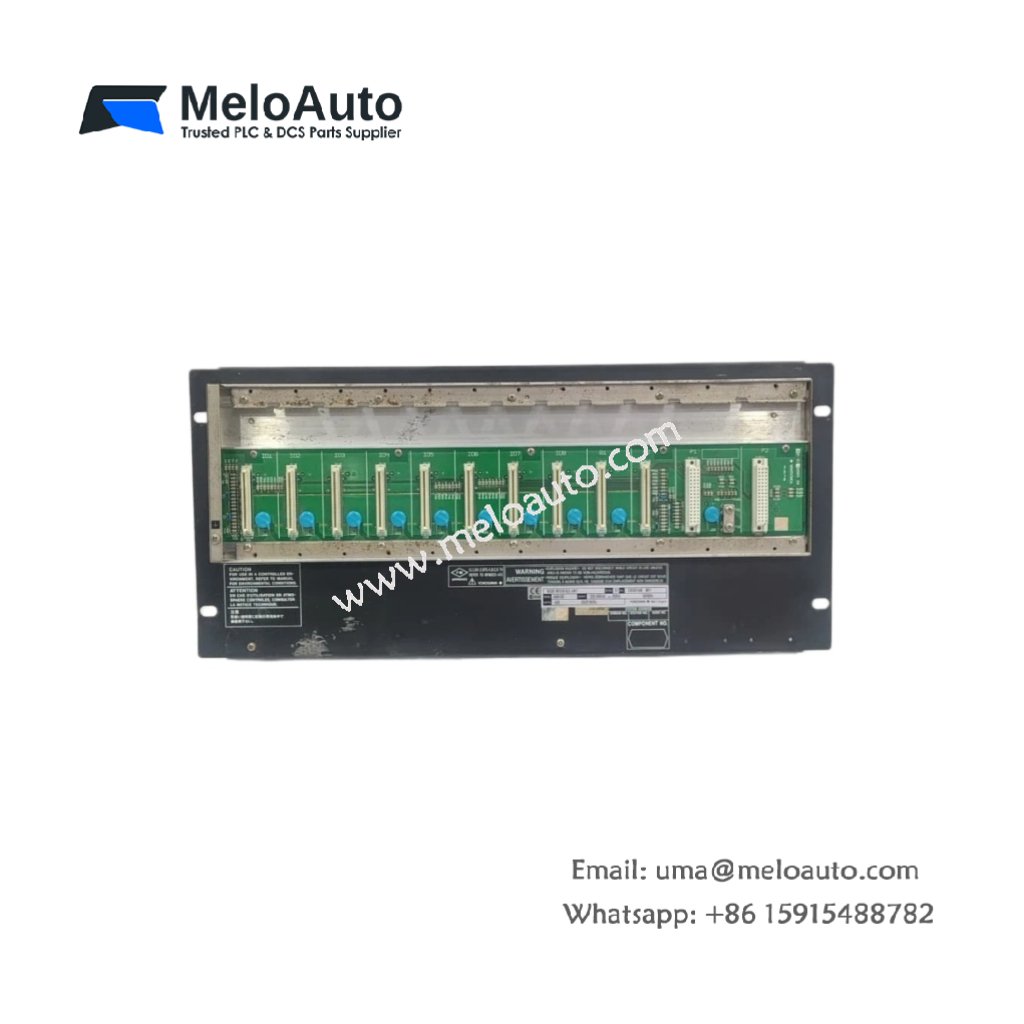

Yokogawa ANB10D-420 ESB Bus Node Unit

The Yokogawa ANB10D-420 ESB Bus Node Unit is designed for reliable operation in industrial automation systems. It replaces the ANB10D/CU2N model and provides robust features that ensure high availability and flexibility. The unit supports dual-redundant power and multiple power configurations. This makes it ideal for use in critical systems where uptime is essential.

Key Features of the Yokogawa ANB10D-420

Dual-Redundant Power Supply: The Yokogawa ANB10D-420 offers a dual-redundant power supply (suffix -4). This ensures the system remains operational even if one power source fails.
Versatile Power Supply: It supports both 100-120 V AC and 24 V DC, offering flexibility for various industrial applications.
Energy Efficient: With an electric power consumption of 200 VA and a current draw of 5.5 A, this node unit ensures low energy usage without compromising performance.
19-Inch Rack Mounting: The Yokogawa ANB10D-420 mounts easily into 19-inch racks using M5 x 4 screws. Additionally, it includes an insulation bash to improve installation safety.
Explosion Protection: The unit comes in various configurations. Select the basic model (O) for general use or choose a version with explosion protection for hazardous environments.
Expandable Features: For added functionality, the /CU2N option provides a connector unit, while the /NDEL option offers a software license for node expansion.

Technical Specifications

Specification	Details
Model	Yokogawa ANB10D-420
Category	ESB Bus Node Unit
Replacement for	ANB10D/CU2N
Power Supply	100-120 V AC, 24 V DC
Electric Power Consumption	200 VA
Current Draw	5.5 A
Mounting Type	19-inch Rack Mounting (M5 x 4 screws)
Additional Features	Insulation bash (accessory)
Suffix Codes	-4 (Dual-Redundant Power Supply), 2 (220-240 V AC), O (Basic Type)
Option Codes	/CU2N (Connector Unit), /NDEL (Node Expansion License)

Applications of the Yokogawa ANB10D-420

The Yokogawa ANB10D-420 is perfect for various industrial applications. It excels in environments that demand high reliability and redundancy:

Industrial Automation: The node unit supports continuous communication in automated systems, ensuring stable performance.
Process Control: Use it in process control systems, where uninterrupted operation is critical.
Critical Control Systems: With dual-redundant power, the Yokogawa ANB10D-420 guarantees the system’s reliability during power disruptions.
Hazardous Environments: The explosion protection options make it ideal for use in potentially hazardous areas, such as chemical plants and refineries.

With the Yokogawa ANB10D-420, you gain a reliable, flexible solution for managing industrial control systems and ensuring their continuous performance.
