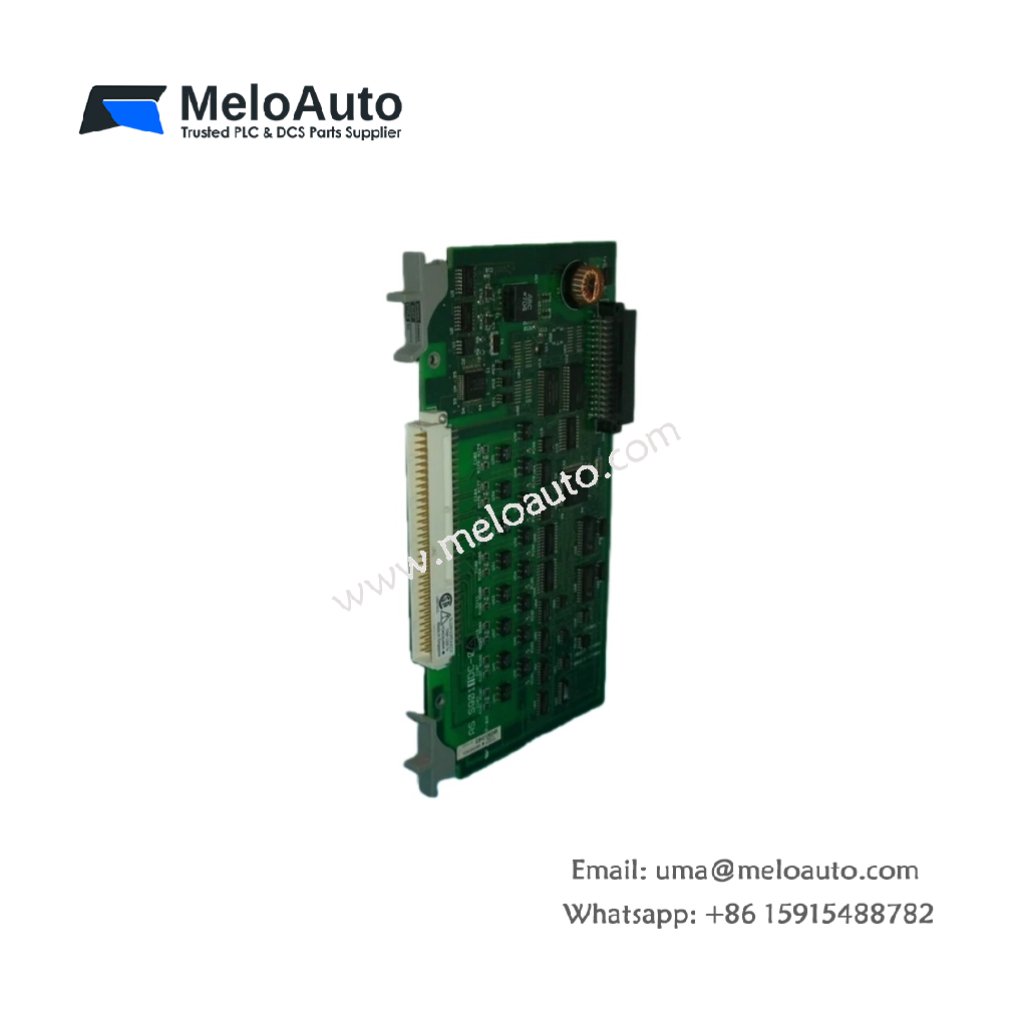

Yokogawa AMM22C mV Input Multiplexer Module

Overview

The Yokogawa AMM22C is a high-performance mV input multiplexer module, designed to integrate seamlessly with Yokogawa’s CENTUM CS and CENTUM VP control systems. This versatile module enables the efficient processing of multiple low-level voltage signals, offering enhanced data collection and management in industrial environments.

Key Specifications

Feature	Specification
Input Channels	16 channels
Input Type	mV (millivolt) input
Connector Type	Standard connector
Form Factor	Panel/Chassis Mount
Weight	Approx. 1.3 kg

Features

Multiple Input Channels: The AMM22C supports 16 input channels, allowing for versatile data acquisition from multiple sensors and devices.
mV Input Capability: Designed specifically for mV input, the module can handle low-level voltage signals accurately, ideal for sensitive applications.
Compact Design: With a panel/chassis mount form factor, it ensures easy integration into control panels and other industrial equipment.
Efficient Signal Processing: The module efficiently multiplexes several mV inputs into a single output, improving data processing speed within the control system.
Standard Connectivity: It comes with a standard connector type, ensuring easy installation and reliable connections with other system components.

Technical Parameters

Input Channels: 16 channels, providing flexibility in data acquisition.
Input Type: Capable of handling mV inputs, suitable for measuring small voltage levels.
Weight: The module weighs approximately 1.3 kg, making it lightweight yet robust for industrial use.
Form Factor: Designed for panel/chassis mounting, offering straightforward installation and integration.
Connector Type: Uses a standard connector, simplifying the connection process to other control system components.

Applications

The AMM22C is ideal for applications that require the multiplexing of multiple low-level voltage inputs. It is commonly used in environments where accurate and efficient data collection is essential. The module ensures smooth integration within Yokogawa’s CENTUM CS and CENTUM VP control systems, making it perfect for industrial automation, process monitoring, and other control applications.
