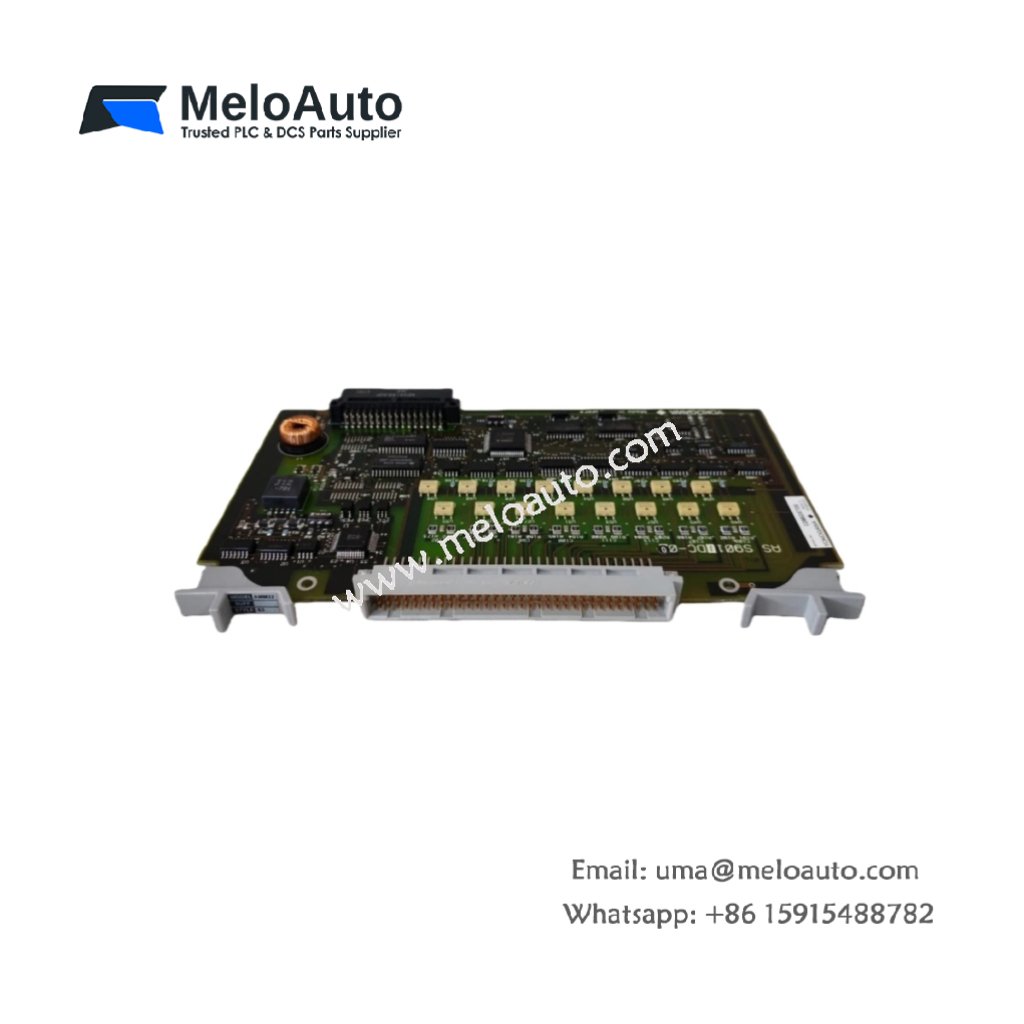

Yokogawa AMM22 S3 Multiplexer Input Module

Overview

The AMM22 S3 from Yokogawa is a sophisticated multiplexer input module designed for industrial control systems. It ensures high-precision measurements by providing multiple input channels, making it ideal for data acquisition in complex applications. Whether you need to monitor temperature, voltage, or current, the AMM22 S3 offers seamless integration with existing control systems and supports various industrial environments.

Key Specifications

Feature	Specification
Input Channels	32 channels
Input Voltage Range	-10V to +10V DC
Input Current Range	4-20 mA
Output Voltage Range	-10V to +10V DC
Switching Time	20 ms max
Dimensions	200mm x 120mm x 80mm
Weight	1.2 kg
Power Supply	24V DC ±10%
Communication Interface	RS-485

Features

High Precision: The AMM22 S3 provides accurate measurements for multiple input signals, ensuring reliability in critical control applications.
Large Channel Count: With 32 channels, it supports extensive data input for more comprehensive monitoring.
Wide Voltage Range: The module supports an input voltage range from -10V to +10V DC, accommodating various types of sensors and devices.
Fast Switching: With a switching time of just 20 ms, it ensures rapid data updates for real-time decision-making.
Compact Design: The AMM22 S3 features a space-saving design (200mm x 120mm x 80mm), allowing easy integration into control panels.
Reliable Communication: Equipped with an RS-485 interface, it supports stable and long-distance communication, ideal for large-scale systems.

Technical Parameters

Input Channels: 32 channels for flexible data acquisition.
Voltage Range: Handles -10V to +10V DC for accurate voltage input.
Current Range: Supports 4-20 mA, commonly used in industrial control systems.
Switching Time: Fast switching time of 20 ms max for efficient data acquisition.
Power Supply: Requires a 24V DC ±10% supply for reliable operation.
Weight: The module weighs 1.2 kg, ensuring easy installation without excessive weight.
Dimensions: Measures 200mm x 120mm x 80mm, making it easy to integrate into standard control cabinets.
Communication Interface: Features RS-485 for reliable and robust communication in industrial applications.

Integration & Application

The AMM22 S3 is fully compatible with Yokogawa’s CENTUM VP and other control systems, ensuring smooth integration into existing setups. It’s ideal for industrial processes where monitoring of multiple signals is crucial. Its ability to handle a wide range of input signals makes it suitable for power plants, manufacturing lines, and any facility requiring high-quality data acquisition.
