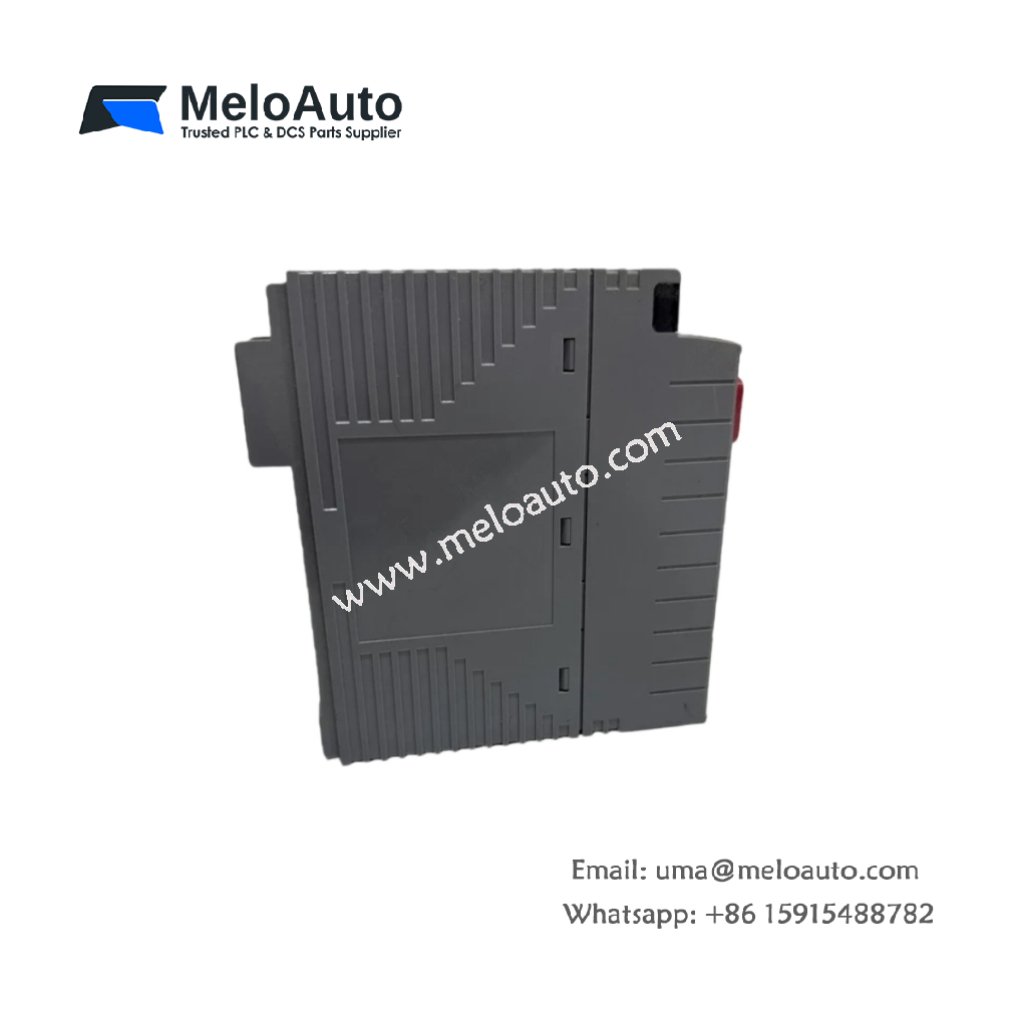

Yokogawa ALP111-S00 PROFIBUS-DP Communication Module

The Yokogawa ALP111-S00 is a high-performance PROFIBUS-DP communication module, designed to seamlessly integrate with Yokogawa field control systems. Acting as the master device in a PROFIBUS-DP network, it enables smooth communication and reliable data exchange between various slave devices. This module is ideal for process automation, factory automation, and infrastructure projects. The ALP111-S00 ensures high-speed, long-distance communication, while its robust design allows for easy maintenance and troubleshooting.

Technical Specifications of the Yokogawa ALP111-S00**

Specification	Details
Model Number	ALP111-S00
Manufacturer	Yokogawa Electric
Interface	PROFIBUS-DP
Connection Method	EIA-RS-485 compliant
Signal Isolation	Isolated for reliable data transmission
Transmission Speed	9600 bps to 12 Mbps
Transmission Route	Shielded for enhanced signal integrity
Maximum Transmission Distance	1.2 km per segment (at 9600 bps)
Main Communication Port	D-sub 9-pin (female)
Maintenance Port	D-sub 9-pin (male), RS-232C interface
Maximum Current Consumption	0.7 A
Weight	0.3 kg

Key Features of the Yokogawa ALP111-S00**

Reliable Communication: The ALP111-S00 ensures seamless communication between master and slave devices, providing stable data exchange in demanding environments.
Flexible Transmission Speeds: It supports a wide range of transmission speeds, from 9600 bps to 12 Mbps, adapting to different industrial requirements.
Long-Distance Communication: With a maximum transmission distance of 1.2 km per segment at 9600 bps, the ALP111-S00 is well-suited for large-scale industrial setups.
Robust Design: The ALP111-S00 features shielded transmission routes for enhanced signal integrity, ensuring stable communication in harsh industrial environments.
Easy Maintenance: With D-sub 9-pin ports for both communication and maintenance, installation and troubleshooting are straightforward. The RS-232C interface simplifies diagnostics.

Applications of the Yokogawa ALP111-S00**

The Yokogawa ALP111-S00 is widely used in the following industrial automation sectors:

Process Automation: Ensures reliable and fast communication in industrial control systems.
Factory Automation: Facilitates smooth communication between various factory devices.
Infrastructure Projects: Ideal for long-distance communication in large infrastructure systems.
Energy & Utilities: Provides stable communication in critical energy and utility operations.

Compact and Efficient

Weighing just 0.3 kg, the ALP111-S00 is lightweight and easy to install, making it an excellent choice for both new installations and upgrades in industrial automation systems. Its compact design ensures space efficiency while maintaining high performance.
