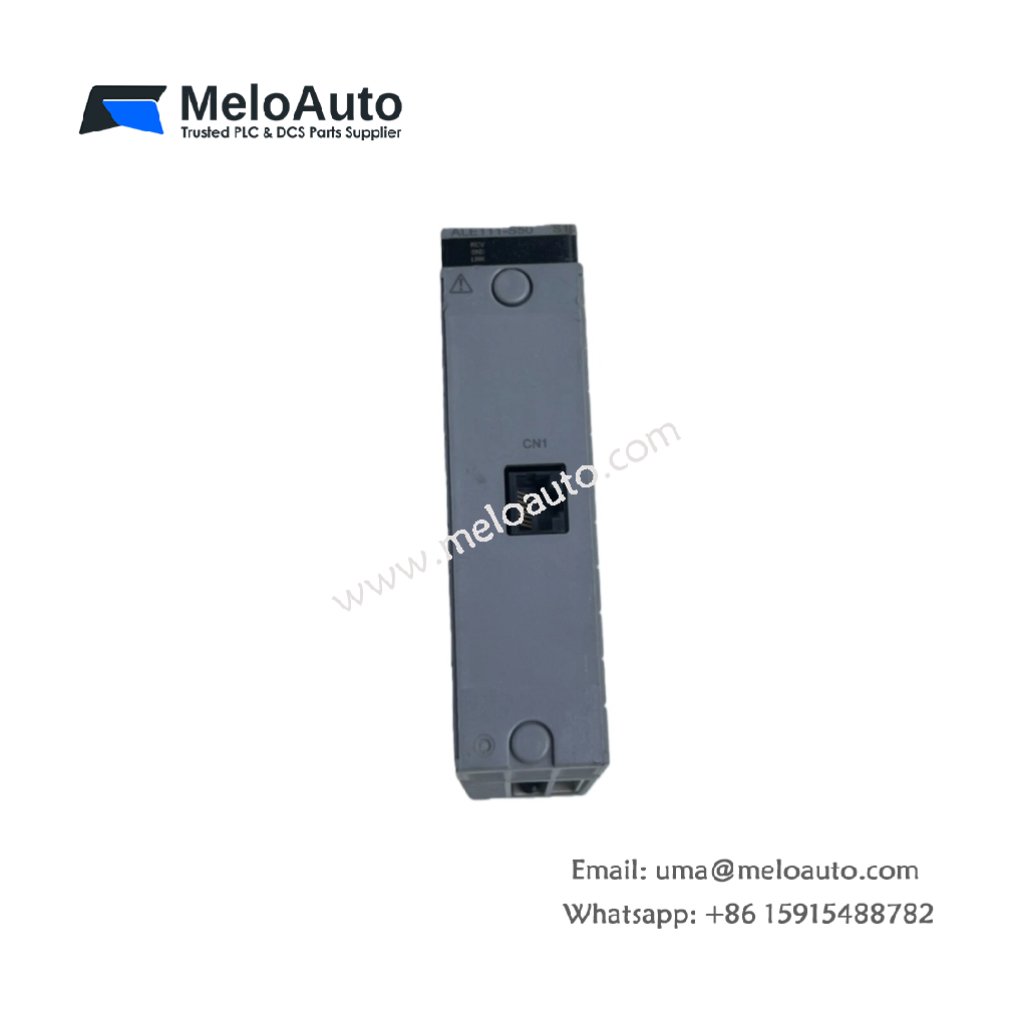

Yokogawa ALE111-S00 Ethernet Communication Module

The Yokogawa ALE111-S00 is an advanced Ethernet communication module designed to seamlessly integrate with Yokogawa’s field control stations (FCS) and ESB bus node units. This module guarantees high-speed, reliable data transfer, supporting industry-standard protocols such as TCP/IP and Modbus. It is a crucial component for establishing scalable, distributed control systems within process automation environments.

Key Features of the Yokogawa ALE111-S00 Ethernet Communication Module

Model: ALE111-S00
Manufacturer: Yokogawa Electric
Function: Facilitates Ethernet communication for FCS and subsystem integration.
Connector Type: RJ-45
Supported Protocols: TCP/IP, Modbus, and others (depending on system configuration)
Mounting Type: Rack-mounted within FCS or node unit
Power Supply: Supplied via the base unit
Transmission Speed: 10 Mbps
Transmission Media: 100 ohm twisted-pair cable (unshielded)
Weight: 0.3 kg
Operating Temperature: -20°C to +60°C
Dimensions: Standard module size for CENTUM VP/CS 3000 systems

Technical Specifications

Specification	Details
Model	ALE111-S00
Manufacturer	Yokogawa Electric
Function	Ethernet communication for FCS and subsystems
Physical Layer Interface	IEEE 802.3 10BASE-T
Connector Type	RJ-45
Supported Protocols	TCP/IP, Modbus, others (depending on system setup)
Mounting	Rack-mounted within FCS or node unit
Power Supply	Supplied via the base unit
Operating Temperature	-20°C to +60°C
Dimensions	Standard size for CENTUM VP/CS 3000 systems
Weight	0.3 kg
Transmission Speed	10 Mbps
Transmission Media	100 ohm twisted-pair cable (unshielded)

Performance and Design

The Yokogawa ALE111-S00 module is designed to deliver robust performance even in demanding industrial environments. It enables Ethernet-based communication, facilitating seamless data exchange between field control stations (FCS) and ESB bus node units. With support for TCP/IP and Modbus protocols, this module guarantees fast and reliable data transmission at a speed of 10 Mbps.

Furthermore, it is rack-mounted within the FCS or node unit, ensuring straightforward integration into Yokogawa’s CENTUM VP or CS 3000 systems. This module receives power through the base unit, streamlining installation and reducing wiring complexity.

Applications

The Yokogawa ALE111-S00 module is ideal for a range of process automation applications. It plays a crucial role in ensuring high-speed communication for:

Industrial automation systems: Facilitates reliable communication within complex control networks.
Power generation: Ensures smooth data transfer between control stations and monitoring devices.
Chemical and petrochemical industries: Supports data exchange for process control and monitoring.
Building automation: Integrates various subsystems, including HVAC, lighting, and security systems.

By enabling high-speed communication, this module is the perfect choice for environments where data integrity and uptime are critical.
