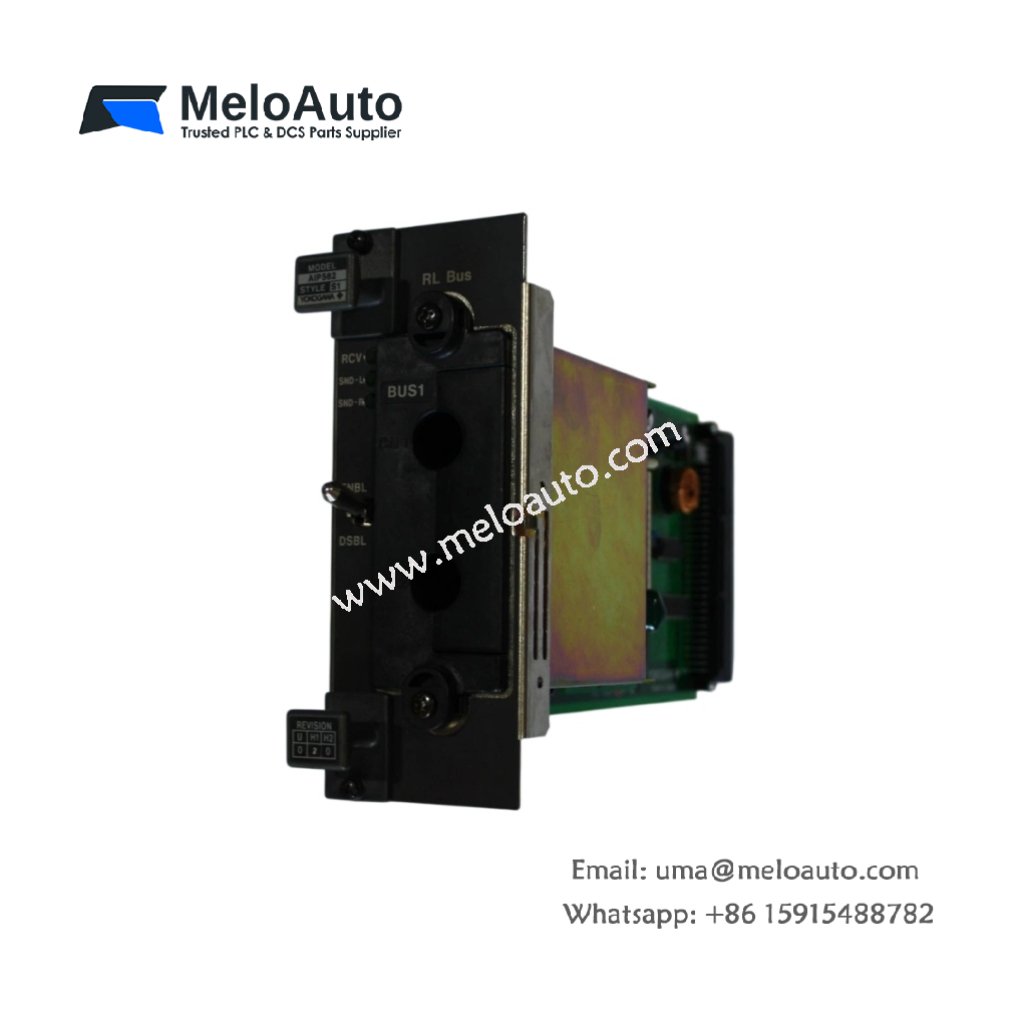

Yokogawa AIP562 V-Net Coupler Module

Overview

The Yokogawa AIP562 V-Net Coupler Module ensures smooth integration of devices within industrial communication networks. This high-performance module facilitates seamless data transfer between automation components, promoting a stable and efficient control system. By enhancing connectivity, it contributes significantly to your system’s overall reliability.

Key Specifications

Here are the technical specifications for the AIP562 V-Net Coupler Module:

Specification	Value
Model	AIP562
Manufacturer	Yokogawa
Interface	V-Net (Modbus RTU)
Power Supply	24V DC
Communication Speed	9600 to 115200 bps
Dimensions (LxWxH)	120mm x 100mm x 45mm
Weight	250g
Mounting	DIN rail
Operating Temperature	-20°C to 60°C
Humidity Range	5% to 95% (Non-condensing)
Connection Ports	2 Ethernet Ports (10/100 Mbps)

The AIP562 is designed to deliver high-speed communication and reliable performance. With communication speeds ranging from 9600 bps to 115200 bps, it supports fast and efficient data transfer, ensuring that your system runs smoothly. The compact dimensions of 120mm x 100mm x 45mm and the lightweight design (250g) make it easy to install, even in tight spaces.

Key Features

High-Speed Communication: The AIP562 supports communication speeds between 9600 bps and 115200 bps. As a result, it guarantees fast and efficient data exchange between all connected devices.
Robust Connectivity: With 2 Ethernet ports (10/100 Mbps), this module offers reliable, stable connectivity, ensuring your network operates without interruption.
Flexible Installation: The module’s compact design and DIN rail mounting options make it easy to install in various setups. This flexibility saves space and simplifies the installation process.
Wide Temperature Range: The AIP562 performs efficiently in environments with temperatures ranging from -20°C to 60°C. Therefore, it is suitable for use in diverse industrial settings.
Energy-Efficient Power Supply: Powered by 24V DC, the AIP562 minimizes energy consumption while providing reliable and consistent performance.

Conclusion

In conclusion, the Yokogawa AIP562 V-Net Coupler Module stands out for its ability to enhance system connectivity and communication reliability. Its high-speed performance, flexible mounting, and wide operating temperature range make it the ideal choice for industrial automation systems that demand optimal performance.
