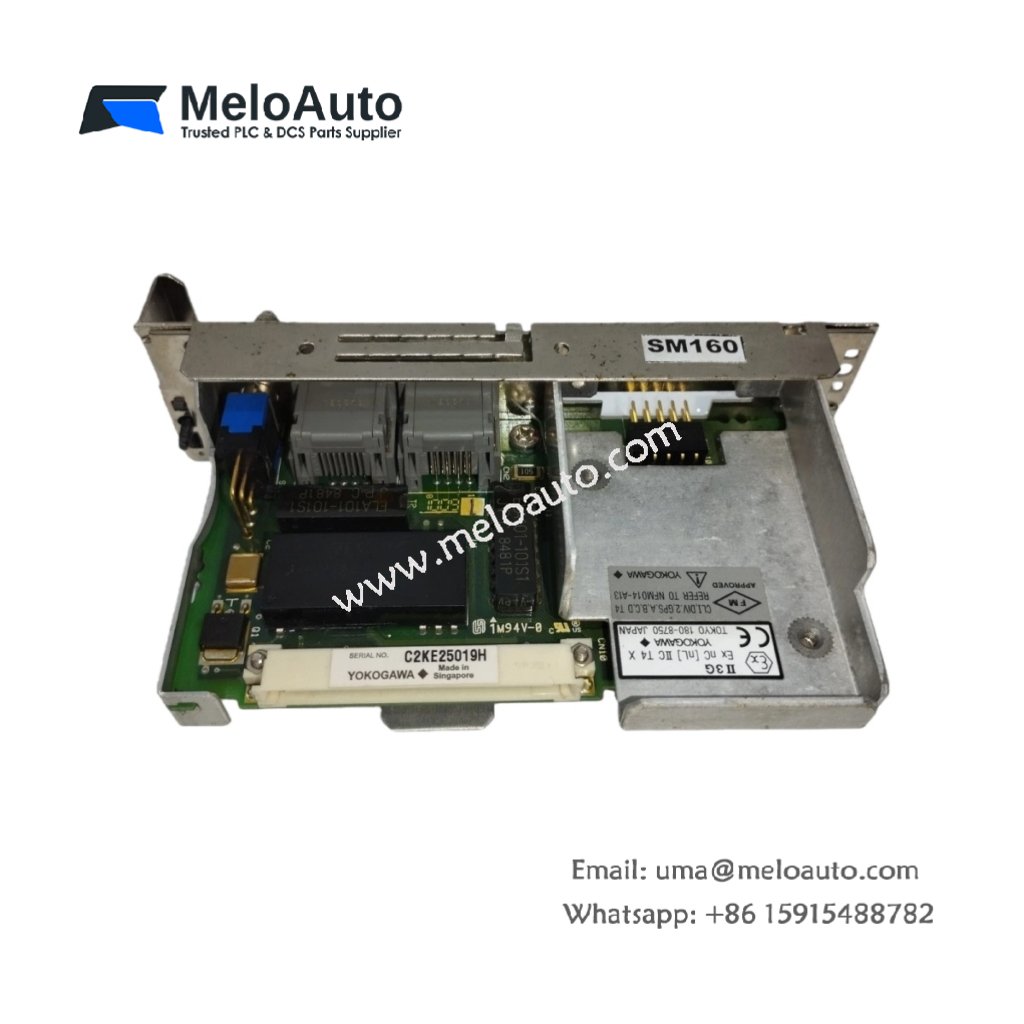

Yokogawa AIP504-13 S1 V-NET Coupler Module

The Yokogawa AIP504-13 S1 is a high-performance V-NET coupler module designed to connect Yokogawa field control units (FCUs) and other devices within a V-NET network. This network, known for its high-speed, deterministic communication, is specifically built for process control systems. With the AIP504-13 S1, you can easily establish reliable communication in a variety of industrial environments, ensuring seamless data transfer between multiple devices.

Key Features

Multiple Communication Protocols: The AIP504-13 S1 supports a wide range of protocols, including Ethernet/IP, Modbus TCP, PROFINET IO, and EtherCAT, allowing it to integrate effortlessly into different systems.
High-Speed Data Transfer: With speeds of up to 1 Gbps, the AIP504-13 S1 ensures fast, efficient communication for demanding applications.
Easy Installation: The module is designed for quick and simple installation, reducing setup time and ensuring ease of use for system integrators.
Redundant Communication: The supports dual-redundant communication paths, improving system reliability and reducing the risk of communication failure.
Wide Compatibility: This module works seamlessly with a broad range of Yokogawa devices, making it a versatile choice for different industrial applications.

Supported Communication Protocols

The Yokogawa AIP504-13 S1 is compatible with the following communication protocols:

Ethernet/IP
Modbus TCP
PROFINET IO
EtherCAT
Other compatible protocols

These protocols ensure flexible integration with various automation systems, offering high compatibility across different industrial environments.

Technical Specifications

Here are the detailed technical specifications for the Yokogawa AIP504-13 S1 module:

Parameter	Specification
Model	Yokogawa AIP504-13 S1
Product Type	V-NET Coupler Module
Communication Protocols	Ethernet/IP, Modbus TCP, PROFINET IO, EtherCAT, Others
Communication Speed	Up to 1 Gbps
Port Type	RJ45
Dimensions (mm)	152 x 76 x 254
Weight	0.6 kg
Redundant Communication	Supported
Power Supply	24 VDC ±10%
Operating Temperature	-40°C to +85°C
Environmental Rating	IP20
Mounting Type	DIN rail or rack-mounted

Applications

The Yokogawa is suitable for a wide range of industrial applications, including:

Process Control Systems: Ensures reliable communication for monitoring and control.
Factory Automation Systems: Integrates easily into manufacturing environments.
Building Automation Systems: Facilitates efficient operation of building systems like HVAC and lighting.
Power Generation and Distribution Systems: Supports high-speed communication for power management.
Oil and Gas Industry: Provides robust communication for remote monitoring and control.
Petrochemical Industry: Connects various devices in a complex petrochemical environment.
Water and Wastewater Treatment: Enables seamless data transfer in water treatment plants.
Other Industrial Applications: Suitable for any system requiring fast, reliable communication.

Conclusion

The Yokogawa V-NET coupler module offers high-speed, reliable communication for a variety of industrial applications. Its support for multiple protocols, ease of installation, and dual-redundant communication make it an excellent choice for demanding environments. Whether used in process control, factory automation, or energy management systems, the AIP504-13 S1 ensures seamless connectivity and system reliability.
