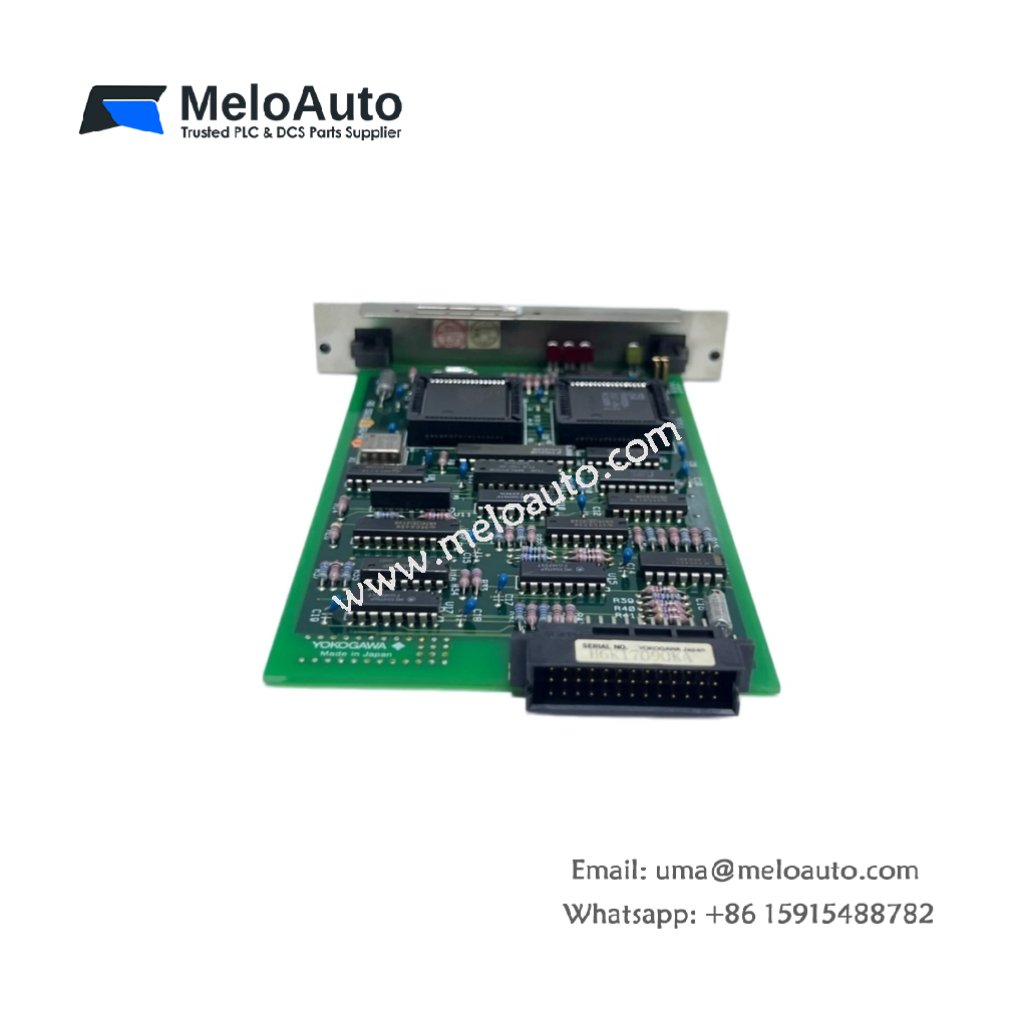

Yokogawa AIP171 Transceiver Control Module

Overview

The Yokogawa AIP171 Transceiver Control Module provides precise and efficient control for remote I/O devices. It integrates seamlessly with Yokogawa CENTUM CS and CENTUM VP distributed control systems. Designed for demanding industrial environments, this module ensures reliable communication and fast response times for process automation applications.

The AIP171 supports RS485 communication, enabling multiple transceivers to connect and exchange data efficiently. Its compact and robust construction allows easy installation while maintaining high operational reliability. This module fits perfectly in control cabinets or racks used in manufacturing, energy, and process control systems.

Features

Offers precise control of transceiver devices with 1% accuracy over the full 0–100% range.
Supports RS485 interface for secure and fast data communication between modules.
Responds in less than 100 ms, ensuring timely operation for automated processes.
Compact dimensions allow flexible installation in dense industrial control systems.
Operates reliably across a wide temperature and humidity range.
Lightweight design facilitates handling and simplifies system integration.

Technical Specifications

Parameter	Details
Manufacturer	Yokogawa
Model Number	AIP171
Product Type	Transceiver Control Module
Input Voltage	24 VDC
Communication Interface	RS485
Control Range	0–100%
Accuracy	±1%
Response Time	< 100 ms
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10–90% RH (non-condensing)
Physical Dimensions	Length: 1.0″ (2.5 cm), Width: 5.0″ (12.7 cm), Height: 7.0″ (17.8 cm)
Weight	0.2 kg (6.1 oz)
Series	RMS-TSG-TZ-C compatible
Applications	Process automation, manufacturing, energy systems, industrial control

Benefits

Ensures reliable and fast communication between control modules and field devices.
Maintains high precision control in harsh industrial environments.
Reduces installation space requirements with compact design.
Simplifies system maintenance due to lightweight and modular structure.
Supports integration with Yokogawa CENTUM CS and CENTUM VP series systems.
