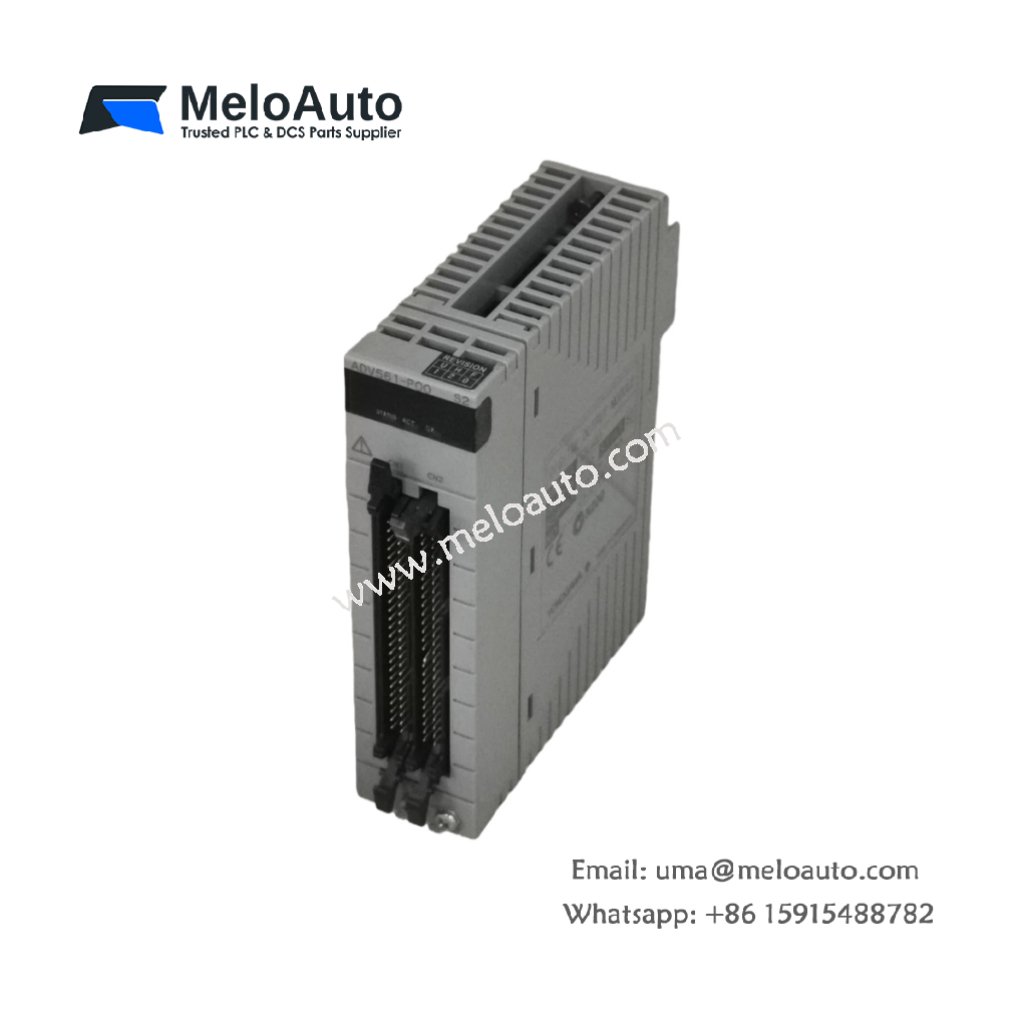

Yokogawa ADV561-P00 S2 32-Channel Digital Output Module

Overview

The Yokogawa ADV561-P00 S2 is a highly reliable 32-channel digital output module from the Yokogawa FIO (Field Input/Output) series. This module delivers transistor contact signals and ensures superior performance in demanding industrial automation systems. Moreover, it features robust electrical isolation, protecting against short circuits and ensuring noise immunity. Additionally, the ADV561-P00 S2 operates efficiently within a wide temperature range, making it suitable for both extreme heat and cold conditions.

Technical Specifications

Specification	Details
Model	ADV561-P00 S2
Number of Output Channels	32 Channels
Input ON Voltage	10 to 30 V DC
Input Current (at rated input voltage)	10 mA
Withstanding Voltage	100 V AC for 1 minute
Status Input	Yes
SOE (Sequence of Events) Input	Yes
Operating Temperature Range	-20 to +70°C
Vibration and Shock Resistance	High resistance to vibrations and shocks
Dual Redundant Configuration	Yes, for increased reliability
Maximum Current Consumption	700 mA (5 V DC), 120 mA (external power supply)
Weight	0.3 kg
External Connection	Dedicated cable (AKB337) or MIL connector cable

Key Features

32 Output Channels: The ADV561-P00 S2 offers 32 discrete output channels. This configuration allows simultaneous control of multiple devices.
Superior Shock & Vibration Resistance: It provides high mechanical resistance, ensuring stable operation even under challenging conditions. As a result, it is ideal for environments with high levels of vibration or shock.
Dual Redundancy: By supporting a dual redundant configuration, this module enhances system reliability. Thus, it ensures that the system remains functional even if one module fails.
Wide Operating Temperature Range: The module operates within a broad temperature range of -20°C to +70°C. This capability guarantees its effectiveness in both extremely hot and cold conditions.
Status and SOE Input Functions: includes integrated status and Sequence of Events (SOE) input functions, which enhance system monitoring and provide real-time information.

Applications

The Yokogawa ADV561-P00 S2 is versatile, finding application in several industrial processes, including:

Valve Control: It effectively controls the opening and closing of valves within process control systems, ensuring the precise regulation of fluids and gases.
Motor Control: The module is ideal for starting and stopping motors in manufacturing environments, ensuring smooth and efficient production processes.
Lighting Control: In large facilities, can be used to control lighting, providing energy-efficient solutions for warehouses and other spaces.
Actuator Control: In robotics and other automation applications, the module controls actuators, facilitating accurate and reliable movements.

Compatibility and Integration

The ADV561-P00 S2 is fully compatible with the Yokogawa CENTUM VP control system. Furthermore, it integrates seamlessly with other control systems that support FIO modules, ensuring easy deployment in existing automation infrastructures.
