General Information

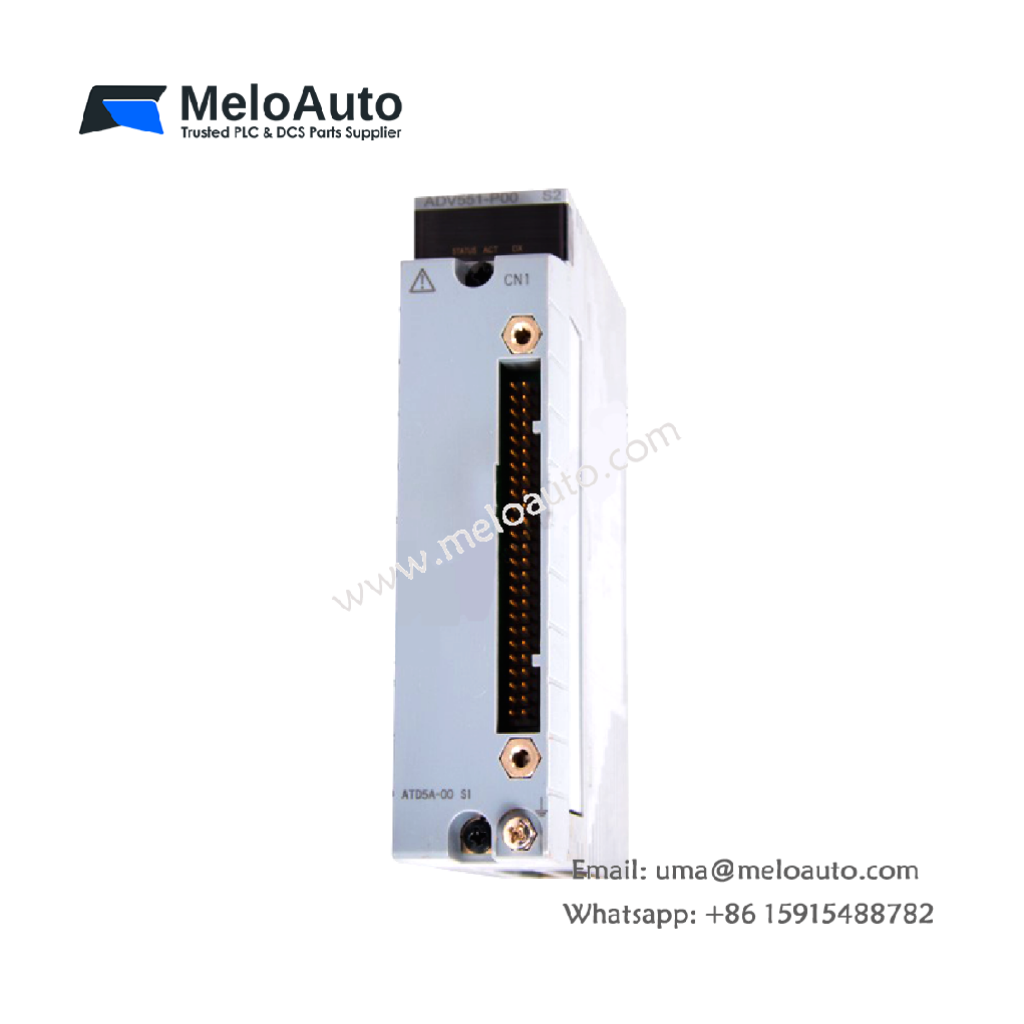

- Model: ADV551-P00 S2
- Product Type: Digital Output Module
- Number of Channels: 32
- Rated Voltage: 24V DC
- Weight: Approx. 0.20 kg
- Dimensions: 10.7 cm (L) × 13 cm (W) × 3.3 cm (H)
- External Connection: Pressure damp terminal, Dedicated cable (AKB331), MIL connector cable
- Configuration: Supports dual-redundant setup
Technical Specifications
| Specification | Details |
|---|---|
| External Power Supply | 24 VDC, 50 mA |
| Voltage Range | 20.4 – 26.4 VDC |
| Output ON Voltage Max | 2 VDC |
| Leakage Current (OFF) | 0.1 mA |
| Output Format | Current sink |
| Max Load Current | 100 mA/channel (26.4V) |
| Withstanding Voltage | 500V AC (dedicated cable) |
| Status Output | ON/OFF function |
| Pulse Width Range | 8 ms – 7200 s |
| Pulse Width Resolution | 8 ms (max 1 ms delay) |
| Output Response Time | ≤ 3 ms (status output) / ≤ 10 ms (mixed output) |
| Max Current Consumption | 700 mA (5VDC), 60 mA (external power) |
Features and Benefits
- 32-channel digital output for industrial automation applications
- Pulse width and time-proportioning output functions for precise control
- Supports dual-redundant configuration for enhanced reliability
- Fast response time with a maximum of 3 ms for status output
- Durable and compact design, weighing only 0.2 kg
Model and Suffix Codes
| Model | Description |
|---|---|
| ADV551 | Digital Output Module (32-channel, 24 VDC, Isolated) |
| Suffix Code | Description |
|---|---|
| -P | With pulse width output & time-proportional output |
| 0 | Without status display, no explosion protection |
| 0 | Basic type |
Ordering Information
- Recommended Accessories: AKB331 dedicated cable, MIL connector cable
- Diode connection required when driving a DC relay
