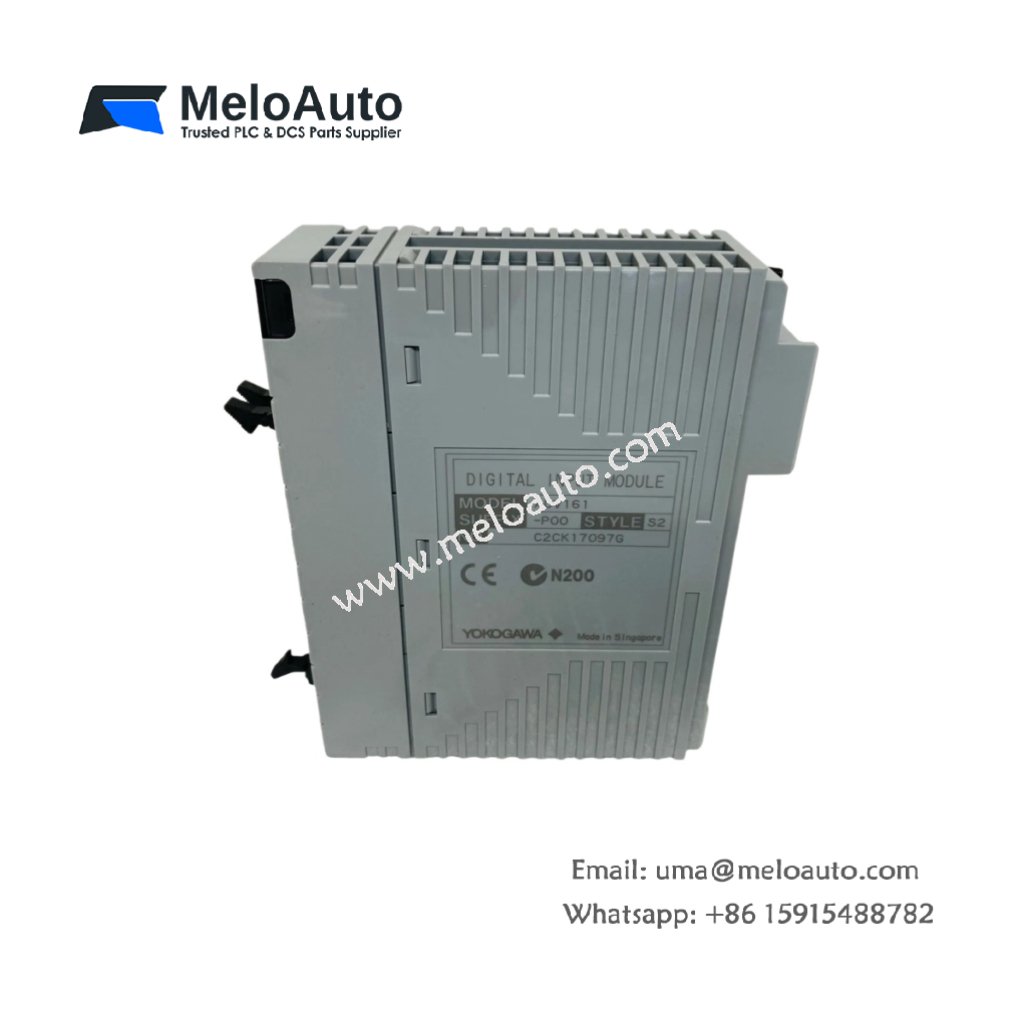

The Yokogawa ADV161-P00 S2 is a high-performance digital input module designed specifically for industrial automation systems. With its 64 input channels, it delivers reliable and accurate signal processing in complex automation setups. This module supports both contact and voltage inputs, making it highly versatile. Its electrical isolation between input signals and the system ensures safe operation, even in harsh environments. The ADV161-P00 S2 also offers a rapid input response time, providing timely and precise data acquisition for real-time applications.
Technical Specifications
Below are the detailed technical specifications for the Yokogawa ADV161-P00 S2:
| Specification | Details |
|---|---|
| Model Number | ADV161-P00 S2 |
| Module Type | Digital Input Module |
| Number of Input Channels | 64 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 20 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated voltage) | 2.5 mA ±20% per channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | 2 kV AC (for 1 minute, between input signal and system) |
| 500 V AC (for 1 minute, between commons per 16 channels) | |
| Functions | Status Input, Pushbutton Input, SOE Input |
| Input Response Time | 8 ms or less (for status input) |
| Minimum ON Detection Time | 20 ms (for pushbutton input) |
| Maximum ON/OFF Cycle Frequency | 25 Hz (for pushbutton input) |
| Maximum Current Consumption | 550 mA (5 V DC) |
| Dimensions (L x W x H) | 220 mm x 155 mm x 35 mm |
| Weight | Approx. 0.30 kg |
| External Connection | Dedicated cable (AKB337), MIL connector cable |
Key Features & Benefits
- High Channel Capacity: The ADV161-P00 S2 provides 64 input channels, making it suitable for large-scale automation systems requiring multiple inputs.
- Wide Input Voltage Range: This module supports an input voltage range of 20 to 26.4 V DC, offering flexibility for various field devices.
- Fast Signal Processing: With an 8 ms response time, it quickly processes input signals, ensuring real-time data acquisition for critical applications.
- Pushbutton and SOE Input: The module includes support for pushbutton inputs with a 20 ms ON detection time, ideal for human-machine interface (HMI) systems.
- Electrical Isolation: Complete isolation between the input signals and the system enhances safety and prevents electrical interference, ensuring reliable operation.
- Compact Design: Its small form factor (220 mm x 155 mm x 35 mm) and light weight (0.30 kg) make the ADV161-P00 S2 easy to install and integrate into existing systems.
- High Withstanding Voltage: The module can withstand up to 2 kV AC between input signals and the system for one minute, offering durability in harsh industrial environments.
The Yokogawa ADV161-P00 S2 stands out for its versatility, rapid response time, and robust features, making it an ideal choice for industrial automation applications that require precise, real-time digital input processing.
