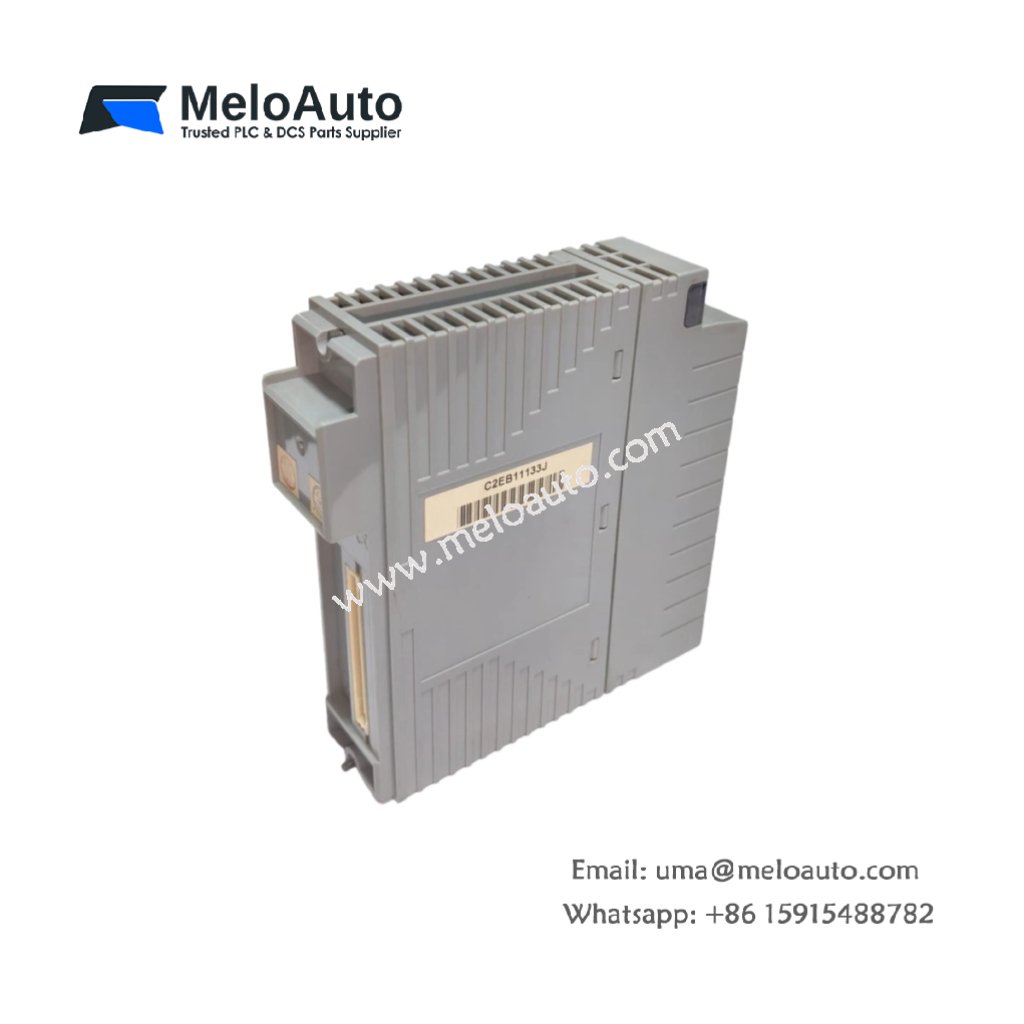

Yokogawa ADV159-P01 S1 Digital Input Module

Overview

The Yokogawa ADV159-P01 S1 is a high-performance digital input module designed for seamless integration with CENTUM-ST3 systems. It provides 32 input channels, offering flexibility for various industrial automation tasks. With its ability to handle both contact and voltage inputs, delivers versatile and reliable signal processing. Additionally, the module features electrical isolation between input channels, which ensures safety and prevents interference. Thanks to its fast response time of 8 ms, this module enhances system efficiency and precision. Overall, the ADV159-P01 S1 is an excellent choice for applications requiring accurate and secure digital input processing.

Technical Specifications

Here are the key technical specifications for the Yokogawa ADV159-P01 S1:

Specification	Details
Model Number	ADV159-P01 S1
Module Type	Digital Input Module
Number of Input Channels	32
Input Signal Types	Contact input and voltage input
Contact Input OFF Signal	100 kΩ or more
Contact Input ON Signal	200 Ω or less
Voltage Input OFF Signal	4.5 to 25 V DC
Voltage Input ON Signal	1 V DC, 200 Ω or less
Input Contact Rating	5 V DC, 20 mA or more
Pushbutton Input Function	Minimum ON detection time of 20 ms
Input Response Time	8 ms (status input)
Compatible Card	ST3 compatible
Option Codes	/P: With pushbutton input, /S1: ISA Standard G3 option
Dimensions	Compact design (dimensions available on request)
Weight	Lightweight (weight available on request)

Key Features & Benefits

Flexible Input Types: The supports both contact and voltage inputs. This makes it suitable for a broad range of field devices.
Rapid Response Time: With an input response time of just 8 ms, the processes signals swiftly, ensuring minimal delays.
Pushbutton Input Function: This module includes a pushbutton input feature with a detection time of just 20 ms. It is perfect for interfaces that require quick feedback.
Reliable Contact Rating: The ADV159-P01 S1 handles contact inputs with a minimum rating of 5 V DC and 20 mA, making it reliable for various industrial devices.
Enhanced Safety: Electrical isolation between input channels ensures the module operates safely, even in environments with electrical noise.
Effortless Integration: Fully compatible with CENTUM-ST3 systems, the module integrates easily, reducing setup time and improving system reliability.

The Yokogawa ADV159-P01 S1 digital input module stands out for its versatility and speed. It ensures efficient and secure signal processing, making it ideal for demanding industrial automation applications.
