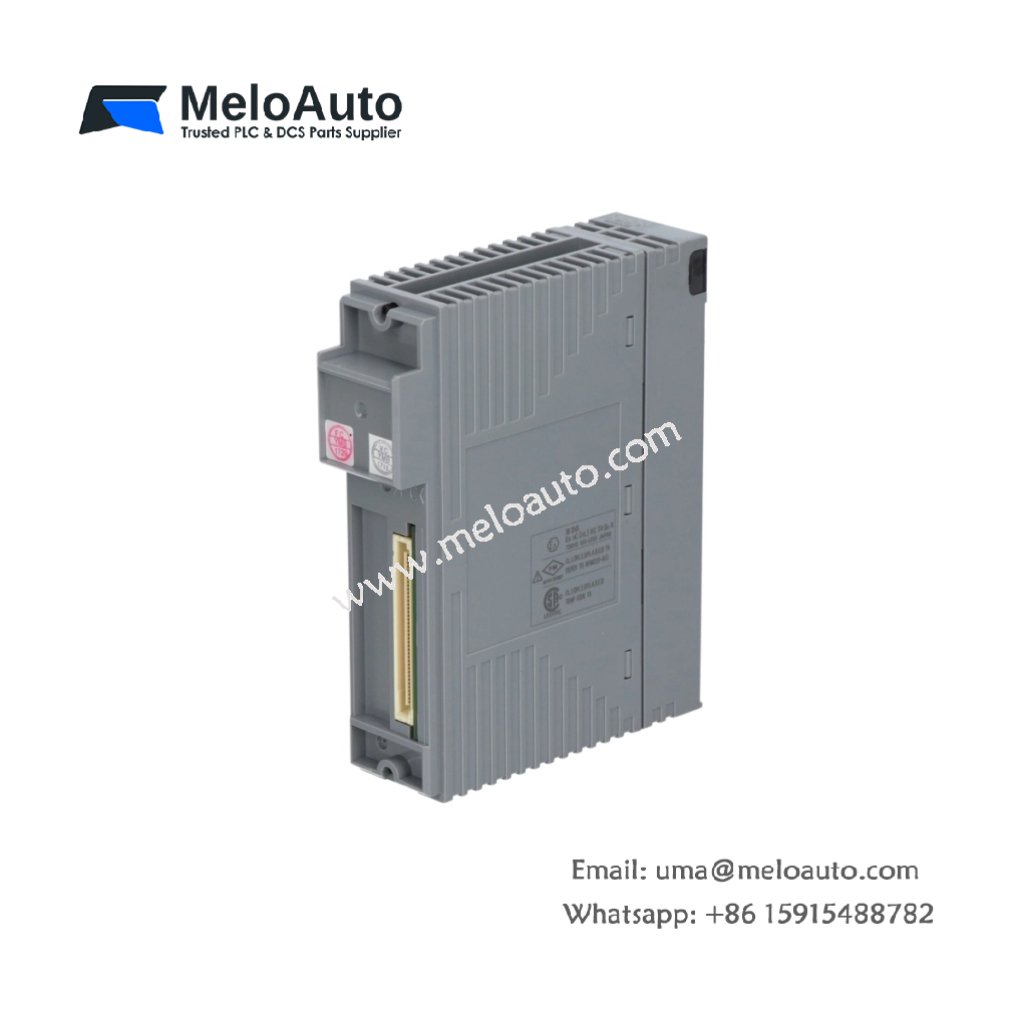

Yokogawa ADV151-P10 Digital Input Module

Overview

The Yokogawa ADV151-P10 is a high-performance digital input module designed for CENTUM VP and CS3000 distributed control systems. It provides precise monitoring of field devices and captures real-time input signals for process control applications. This module supports multiple input types including status, pushbutton, and SOE signals, ensuring versatile functionality for industrial automation.

Its compact form and robust design allow easy installation in dense control panels while maintaining reliable connectivity. The ADV151-P10 ensures fast signal response, making it ideal for applications requiring accurate data acquisition under demanding conditions.

Features

Supports 32 digital input channels for versatile signal acquisition.
Handles status, pushbutton, and SOE input functions efficiently.
Provides fast input response time for real-time monitoring.
Compatible with pressure clamp terminals, dedicated cables, or MIL connector cables.
Compact and lightweight design allows flexible panel installation.

Technical Specifications

Parameter	Details
Manufacturer	Yokogawa
Model Number	ADV151-P10
Product Type	Digital Input Module
Input Channels	32
Rated Input Voltage	24 V DC (sink/source)
Input ON Voltage	18 to 26.4 V DC
Input OFF Voltage	≤ 5.0 V DC
Input Current (at rated voltage)	4.1 mA + 20% per channel
Maximum Allowable Input Voltage	30 V DC
Withstanding Voltage	2 kV AC between input signal and system; 500 V AC between commons for 1 minute
Functions	Status input, Pushbutton input, SOE input
Input Response Time	8 ms (status), 20 ms (pushbutton)
Minimum ON Detection Time	20 ms (pushbutton input)
Maximum ON/OFF Cycle	25 Hz (pushbutton input)
Maximum Current Consumption	500 mA (5 V DC)
Weight	Approx. 0.30 kg
External Connections	Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable

Benefits

Enables reliable real-time monitoring of field devices for industrial processes.
Ensures fast and accurate signal capture with minimal latency.
Supports multiple input types for flexible control system integration.
Lightweight and compact design simplifies panel layout and installation.
