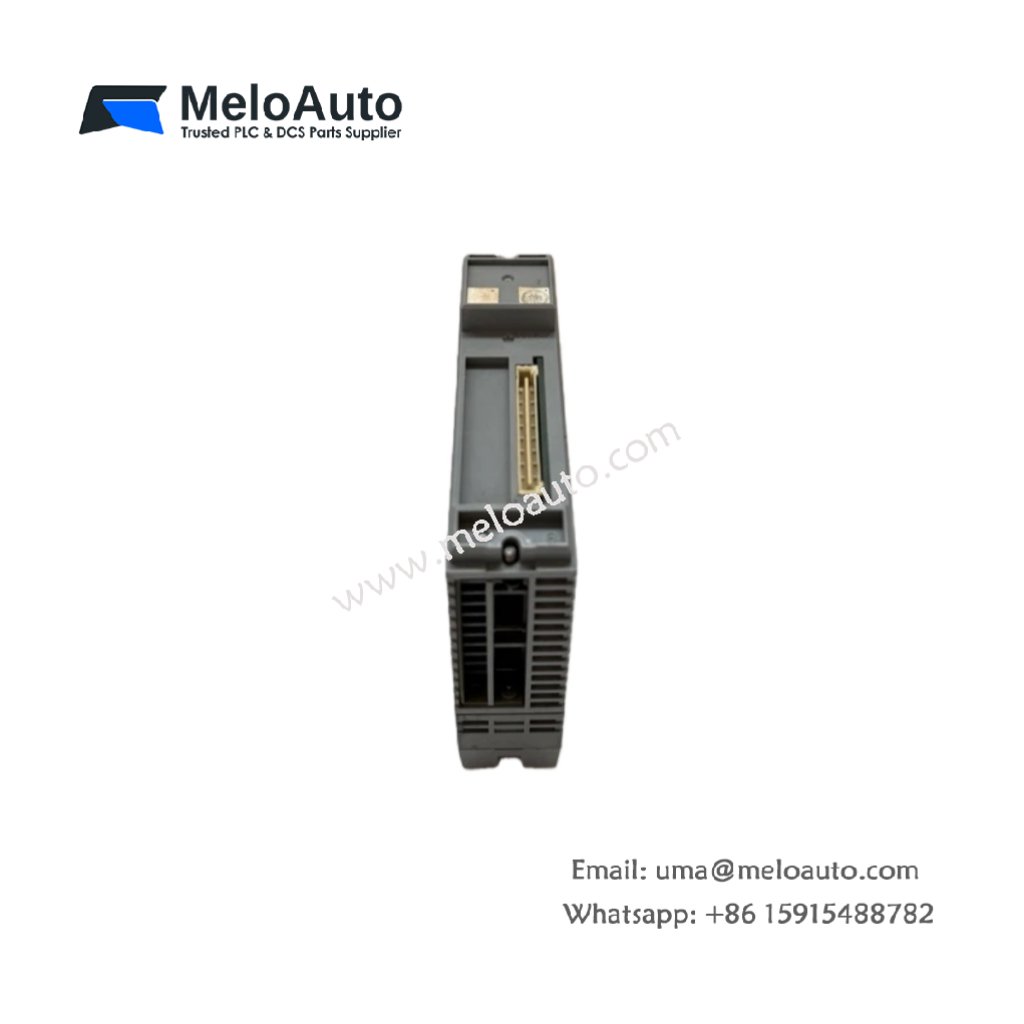

Yokogawa ADV151-P00/D5A00 Digital Input Module

The Yokogawa ADV151-P00/D5A00 is an advanced digital input module that seamlessly integrates into industrial automation systems. Specifically designed for use with Yokogawa’s CENTUM VP control system, this module efficiently processes digital signals from various binary sensors, such as limit switches and pressure switches. Moreover, it plays a crucial role in process control, machine monitoring, and factory automation applications. Thanks to its robust design, it ensures reliable performance even in demanding industrial environments.

Key Features:

Reliable Performance: The ADV151-P00/D5A00 ensures fast and accurate signal processing, which helps improve overall automation efficiency.
Seamless Integration: Designed for easy compatibility with Yokogawa CENTUM VP, it enhances system functionality and performance.
Industrial-Grade Durability: Built to withstand harsh conditions, this module delivers consistent performance in critical industrial operations.
Versatile Application: Whether it’s process control, machine monitoring, or factory automation, this module proves invaluable across various sectors.

Technical Specifications:

Specification	Details
Model	ADV151-P00/D5A00
Number of Channels	32 channels
Rated Input Voltage	24 V DC
Input ON Voltage Range	18 to 26.4 V DC
Input OFF Voltage	5.0 V DC or lower
Input Current	4.1 mA ±20% per channel at rated voltage
Maximum Allowable Input Voltage	30 V DC
Withstand Voltage (Signal-System)	2 kV AC for 1 minute
Withstand Voltage (Common Terminals)	500 V AC for 1 minute per 16 channels
Input Response Time	<8 ms for status input
Pushbutton Input	Minimum 20 ms ON detection, maximum 25 Hz ON/OFF cycle
Maximum Current Consumption	500 mA (5 V DC)
Weight	0.3 kg
External Connection	KS cable adapter (ATD5A-00), pressure clamp terminals, AKB331 cables, MIL connectors

Functional Features:

Button Edge Counting: The module supports button edge counting, which ensures precise detection of digital events.
SDE Input Capture: It enables accurate SDE input capture for applications requiring precise input processing.
Non-Explosion-Proof: This module is designed for standard industrial applications and is not explosion-proof.
Optimized Design: With a simplified layout, it omits unnecessary status displays, focusing on efficiency.

Applications:

Process Control: The ADV151-P00/D5A00 is ideal for process control applications, ensuring accurate and reliable data for monitoring and regulation.
Machine Monitoring: It is widely used in machine monitoring, offering real-time control and ensuring optimal operation.
Factory Automation: Perfect for factory automation, it facilitates efficient management of automated systems and processes.
