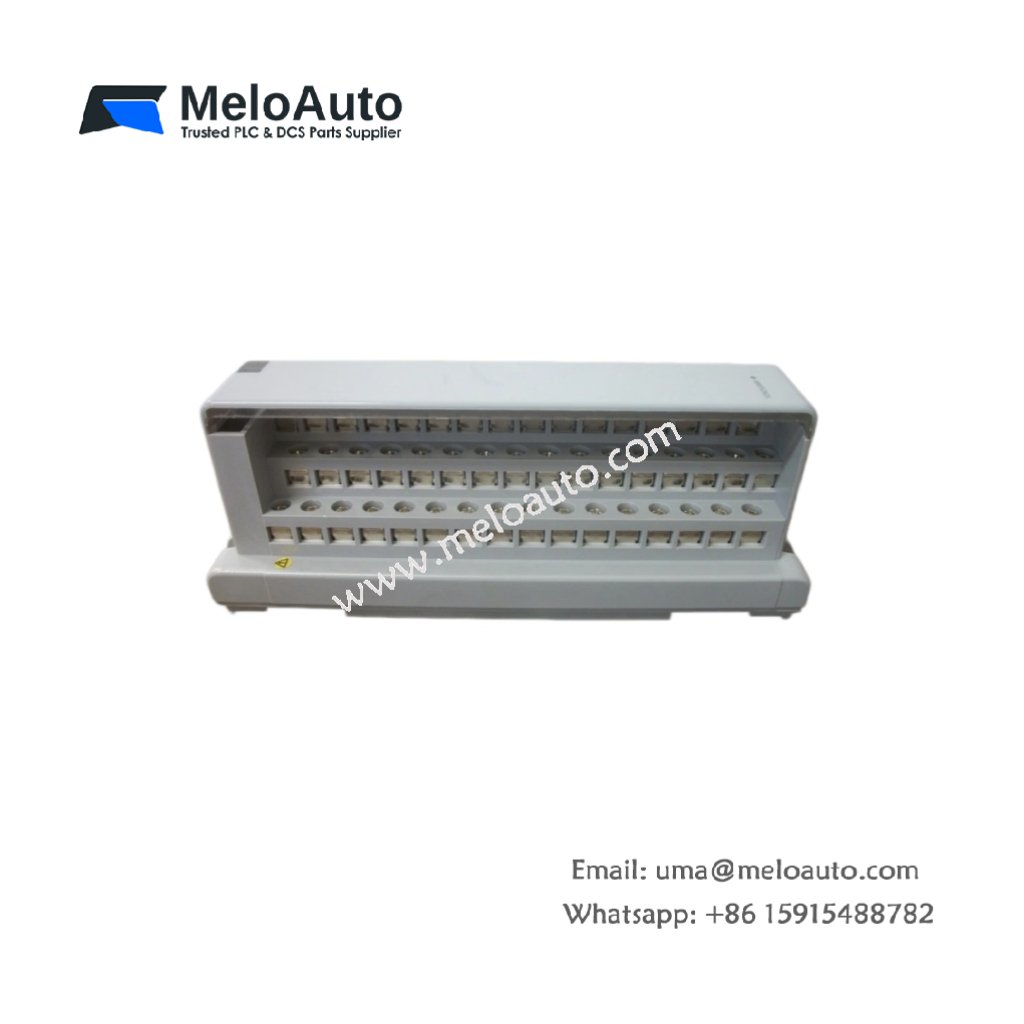

Yokogawa ADM15R – Reliable 16-Channel Relay Input Module

The Yokogawa ADM15R Relay Input Module ensures seamless operation and optimal control for automated systems. It provides efficient relay input management, enabling improved signal processing and system reliability in a wide range of industrial environments.

Key Features of the Yokogawa ADM15R Relay Input Module

Wide Input Voltage Range: The Yokogawa ADM15R accommodates both DC and AC systems, supporting an input voltage range from 24V to 110V DC and 100V to 240V AC. This makes it versatile for various industrial control applications.
Multiple Relay Inputs: It features 16 relay input channels, offering flexible signal control. With this, the Yokogawa ADM15R handles multiple relay signals simultaneously, ensuring high performance and reliability in demanding operations.
Strong Electrical Isolation: The module provides 2000V AC isolation between channels and the power supply. This prevents electrical interference, ensuring stable and accurate signal transmission across the system.
Compact Design for Easy Integration: Despite its powerful features, the Yokogawa ADM15R has a compact form factor. It fits seamlessly into control panels and works in space-constrained environments, making it ideal for systems with limited space.
Broad Operating Temperature Range: The Yokogawa ADM15R operates efficiently in extreme temperatures ranging from -10°C to +60°C. This wide operating range ensures reliable performance in both indoor and outdoor installations.
Flexible Mounting and Simple Wiring: The module supports DIN rail or panel mounting. Additionally, it uses screw terminals for easy and secure connections, allowing for quick installation and setup.

Technical Specifications

Specification	Value
Model	Yokogawa ADM15R
Function	Relay Input Module
Number of Input Channels	16
Input Type	Relay contacts (dry contact)
Input Voltage Range (DC)	24V to 110V
Input Voltage Range (AC)	100V to 240V
Isolation Voltage	2000V AC (between channels and power supply)
Current Consumption	40mA (at 24V DC)
Operating Temperature Range	-10°C to +60°C
Mounting	DIN rail or panel mount
Connection	Screw terminals
Dimensions	3.8 in x 5.1 in x 1.6 in (9.7 cm x 13 cm x 4.1 cm)
Weight	0.2 kg (7.05 oz)

Applications

The Yokogawa ADM15R Relay Input Module is widely used in applications that require reliable relay input control. It’s ideal for industrial process control systems, automation machinery, and monitoring systems where fast and accurate signal management is crucial.
