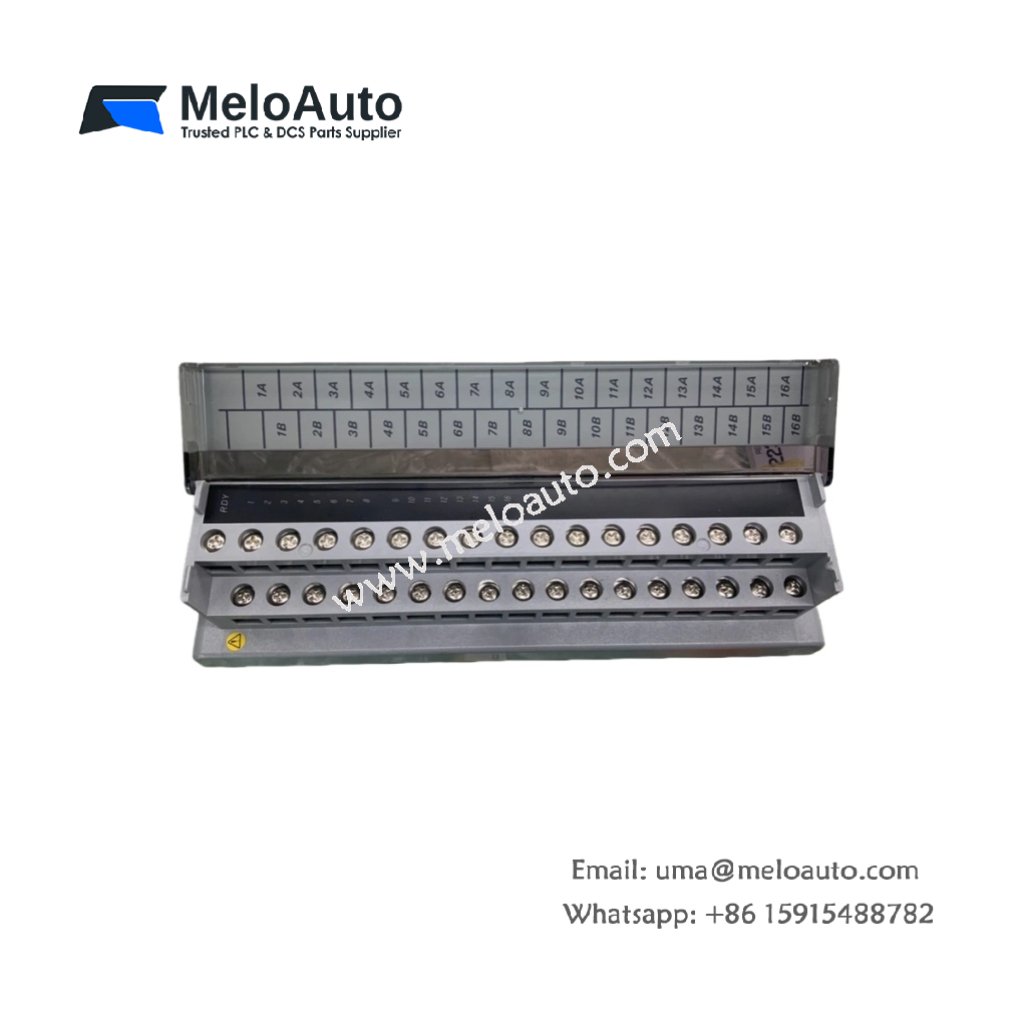

Yokogawa ADM11T Contact Input Module

The Yokogawa ADM11T is a high-performance contact input module designed for use in industrial automation systems, such as Distributed Control Systems (DCS), process analyzers, and field control units. It offers advanced capabilities for monitoring the state of contact switches, including door switches, limit switches, and push buttons. Supporting up to 16 contact switches, this module is a reliable solution for applications that require real-time status monitoring.

Key Features:

Model: ADM11T
Category: Contact Input Module
Manufacturer: Yokogawa

The ADM11T offers more advanced features than the ADM11C, including support for HART communication. This feature allows for two-way communication between the module and the contact switches, making it ideal for real-time status updates. Additionally, the ADM11T provides higher input impedance, reducing the impact of electrical noise and ensuring more stable performance in noisy environments.

Technical Specifications:

Parameter	Details
Model	ADM11T
Number of Supported Switches	16
Input Impedance	Higher than ADM11C, reduces noise impact
Temperature Range	-20°C to +70°C
Vibration Resistance	Yes, built to withstand industrial vibrations
Shock Resistance	Yes, designed for harsh environments
Communication	Supports HART communication
Mounting Type	DIN Rail
Installation	Simple and easy to install
Maintenance	Low-maintenance design
Protection	Overload and short-circuit protection

Why Choose the Yokogawa ADM11T?

Real-Time Monitoring: The HART communication protocol enables instant updates of contact switch states.
Higher Input Impedance: Ideal for noisy environments, reducing the chance of signal interference.
Durable Design: With resistance to vibration and shock, the ADM11T performs well in rugged industrial settings.
Ease of Use: Simple to install and maintain, making it a practical choice for various applications.

Application Areas:

Control Room Monitoring: The ADM11T can be used to monitor door switches in control rooms, providing real-time status updates.
Conveyor Belt Systems: It effectively monitors the state of limit switches on conveyors, ensuring smooth operations.
Machine Operations: Used to monitor push buttons on machines, allowing for precise control.
Safety Device Monitoring: Ideal for checking the status of fire alarms and other critical safety devices.

Whether you need basic switch monitoring or advanced communication capabilities, the ADM11T provides the flexibility and reliability you need for your automation system.
