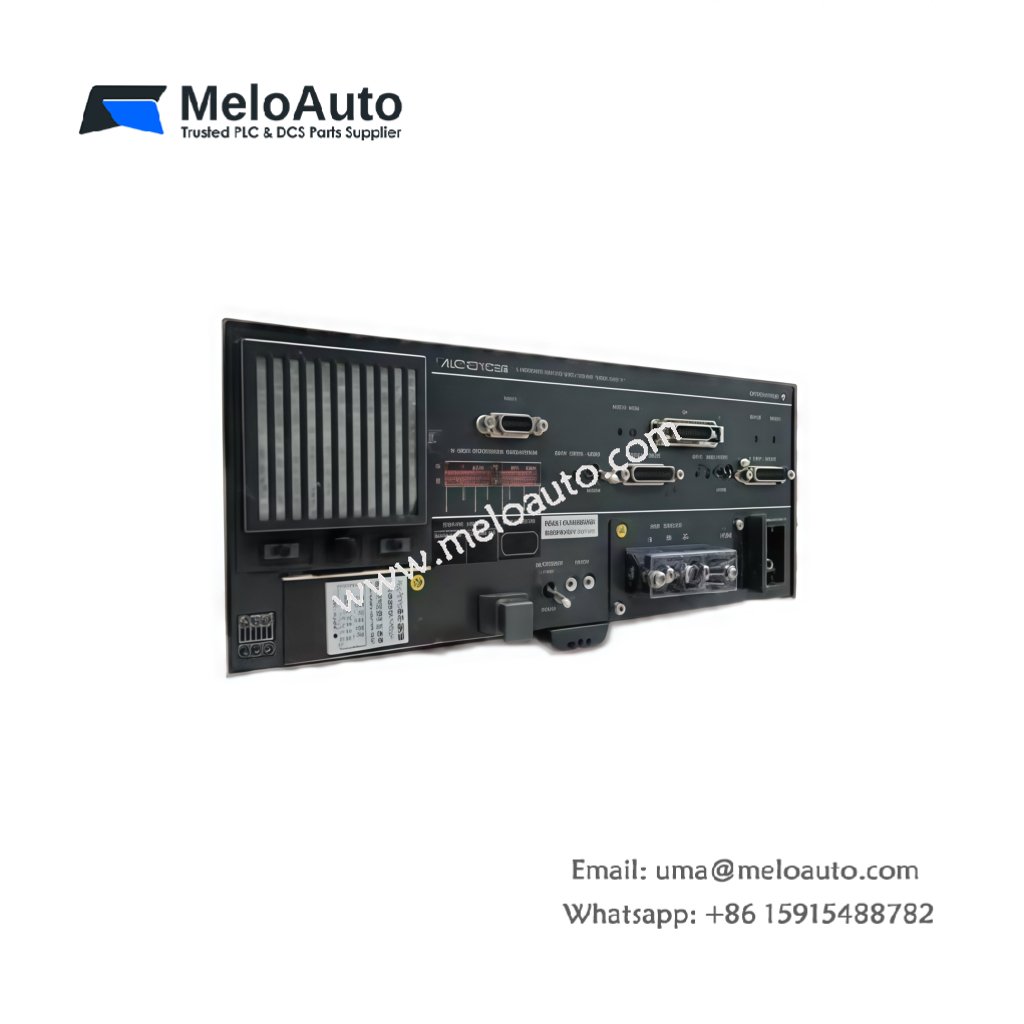

Yokogawa ACG10S-E2110 Communications Gateway Unit

Overview

The Yokogawa ACG10S-E2110 Communications Gateway Unit operates as a versatile digital output module. It integrates seamlessly with CENTUM VP and CS3000 distributed control systems (DCS), managing a wide range of actuators and field devices efficiently.

Key Features

Supports multiple output types, including relay, transistor, and solid-state relay (SSR) for flexible control.
Provides a wide output range from 0 to 24 V DC, suitable for various industrial applications.
Handles output currents up to 10 A, delivering high power for demanding devices.
Supports loads up to 240 W, ensuring robust performance for multiple outputs simultaneously.
Offers hot-swappable functionality, allowing module replacement without system downtime.
Compact design simplifies installation, saving space in control cabinets and racks.

Technical Specifications

Parameter	Details
Manufacturer	Yokogawa
Model	ACG10S-E2110
Category	Communications Gateway Unit / Digital Output Module
Compatible Systems	CENTUM VP, CS3000 DCS
Output Types	Relay, Transistor, Solid-State Relay (SSR)
Output Voltage Range	0–24 V DC
Output Current	Up to 10 A
Maximum Output Load	240 W
Hot-Swap Support	Yes
Dimensions (HxWxD)	3.0 x 5.0 x 8.0 in (76 x 127 x 203 mm)
Weight	2.2 lb (1.0 kg)
Mounting Type	Panel or Rack
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Protection Class	IP20
Series	RMS-TSG-TZ-C compatible

Applications

Yokogawa ACG10S-E2110 suits critical industrial automation scenarios:

Controls actuators, valves, and solid-state devices in DCS environments.
Integrates with CENTUM VP and CS3000 systems for reliable remote output management.
Provides flexible output configurations for manufacturing, process control, and utilities.

Benefits

Delivers high-current output with wide voltage support for diverse industrial devices.
Enhances uptime with hot-swappable modules, minimizing operational interruptions.
Ensures easy installation and integration into RMS-TSG-TZ-C series PLC racks.
