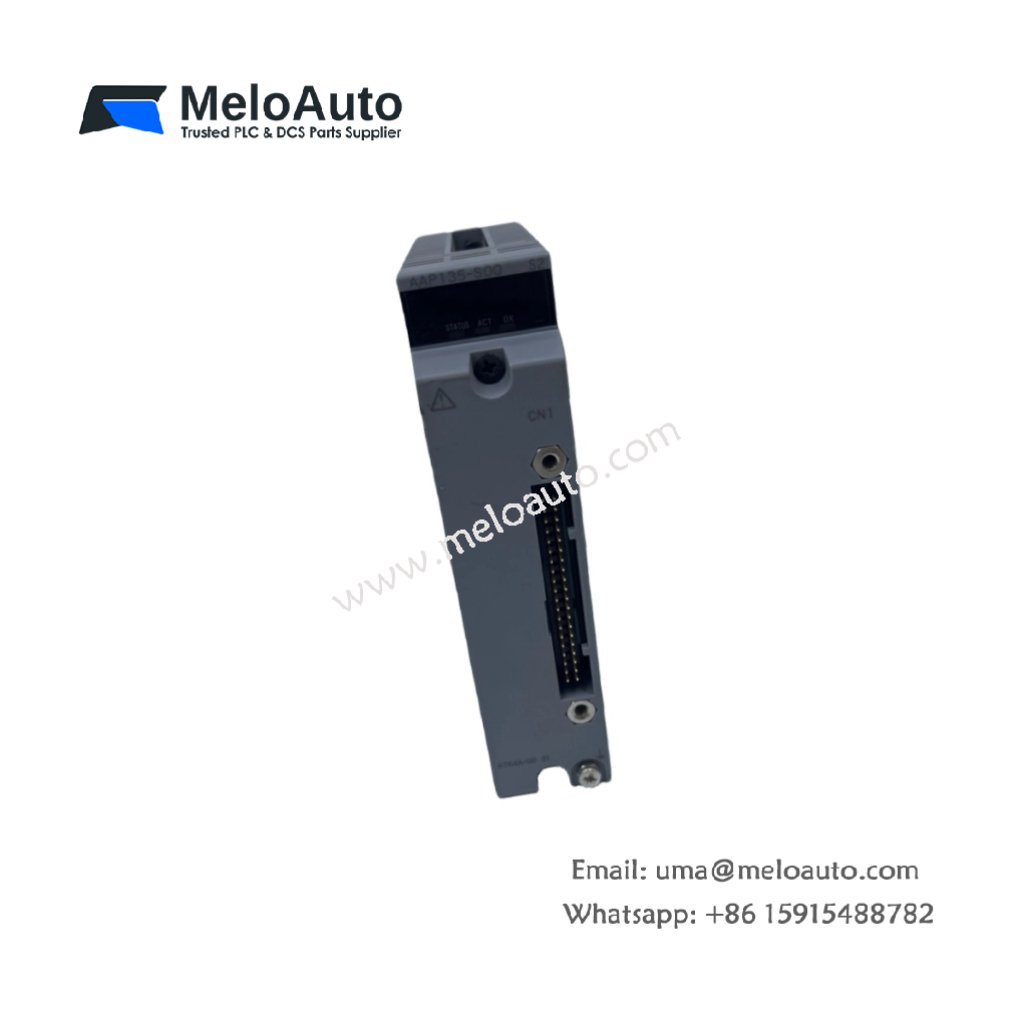

Yokogawa AAP135-S00 S2 Pulse Input Module

The Yokogawa AAP135-S00 S2 is a high-performance pulse input module designed for seamless integration with Yokogawa’s CENTUM VP/CS 3000 control systems. This module processes pulse signals from field devices, offering precise pulse counting for critical industrial applications. With its wide range of supported pulse input types and high counting frequency, it is ideal for tasks such as flow measurement, speed measurement, and position measurement.

Key Features:

8-channel pulse input capability for processing multiple signals simultaneously
Counting frequency of up to 6 kHz, suitable for high-speed applications
Supports various input types, including:
- Contact ON/OFF (dry contact)
- Voltage pulse
- Current pulse
Selectable pulse width filters to optimize signal processing
Dual-redundant configuration, enhancing system reliability
Versatile applications across industries like flow measurement, event counting, and speed monitoring

Applications:

Flow Measurement
Speed Measurement
Position Measurement
Event Counting
Any pulse counting application in industrial processes

Technical Specifications:

Specification	Details
Model Number	AAP135-S00 S2
Manufacturer	Yokogawa
Type	Pulse Input Module
Input Types	Contact ON/OFF, Voltage pulse, Current pulse
Input Frequency	0 to 6 kHz
Input Pulse Width	10 µs to 100 µs
Counting Accuracy	± 0.1% of full scale
Isolation	Non-isolated
Power Supply	24 VDC
Power Consumption	5 W
Dimensions	107.5 x 94 x 32.8 mm
Weight	300 g

Additional Information:

Compatibility: Fully compatible with Yokogawa’s CENTUM VP and CENTUM CS 3000 control systems.
Mounting Options: Can be mounted on DIN rail or a 19-inch rack for easy integration.
Easy Connectivity: Includes screw terminal connectors for quick and reliable connections to pulse output devices.
LED Indicators: Provides a status LED for each channel, clearly indicating pulse input status for easy monitoring and troubleshooting.
