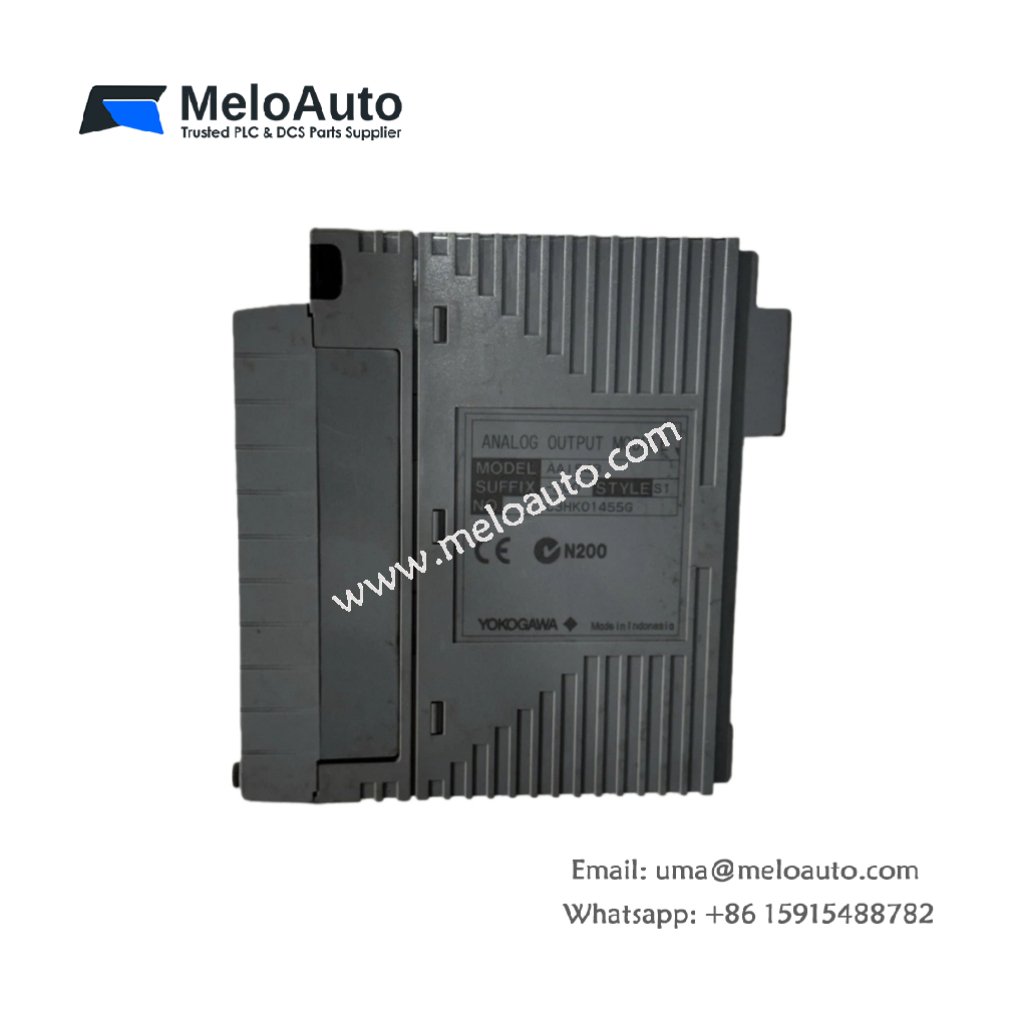

Yokogawa AAI543-S00/A4S00 Analog Output Module

The Yokogawa AAI543-S00/A4S00 is an advanced 10-channel isolated analog output module, specifically designed for industrial applications. It provides precise 4 to 20 mA output signals and is ideal for environments that demand high reliability and accurate signal transmission. The module supports HART communication, allowing for digital interaction and enhanced system diagnostics.

Key Features

10 Isolated Output Channels: Each channel provides 4 to 20 mA output signals.
HART Communication: Supports digital communication, enabling remote monitoring and configuration.
Channel Isolation: Prevents signal interference, ensuring high accuracy in signal transmission.
Redundancy Options: Supports both standard and fast switch-over responses, improving system reliability.
Explosion Protection: Available with or without explosion protection, ensuring safety in hazardous environments.

Technical Specifications

Specification	Description
Number of Output Channels	10 isolated channels
Output Signal	4 to 20 mA
Switch-over Response	Standard or fast switch-over response
Explosion Protection	Optional, available with or without protection
Temperature Range	-20°C to 70°C
Redundancy	Options for standard and fast redundancy
Communication Protocol	HART Communication
Dimensions (W x H x D)	160 mm x 40 mm x 30 mm
Weight	0.5 kg
External Communication	Pressure clamp terminal, MIL connector cable
Option Codes	KS Cable Interface Adapter, Pressure Clamp Terminal, MIL cable connector cover

Performance and Integration

The Yokogawa AAI543-S00/A4S00 module delivers precise control over analog output signals, ensuring consistent performance in critical industrial applications. The HART communication capability allows for seamless integration with control systems, enabling real-time diagnostics and monitoring. With its isolated channels, the module guarantees minimal interference and high signal integrity.

The explosion protection option ensures that this module meets safety standards in hazardous environments, making it suitable for use in industries such as oil and gas, chemical processing, and petrochemical sectors.

Applications

Oil and Gas: Reliable signal output for process control in exploration and extraction.
Chemical Processing: Precise control over chemical processes, ensuring operational safety and efficiency.
Petrochemical: Ideal for use in refining and production systems requiring high precision.
Power Generation: Used in power plants for analog output control of actuators and valves.
Pharmaceutical: Ensures accurate signal transmission for automated production processes.

Accessories and Options

KS4: KS Cable Interface Adapter
A4530/A4810: Pressure Clamp Terminal Block (with or without surge absorber)
A4D3B/A4D10: Dual Pressure Clamp Terminal Block (with or without surge absorber)
C0C31: Connector Cover for MIL cable
