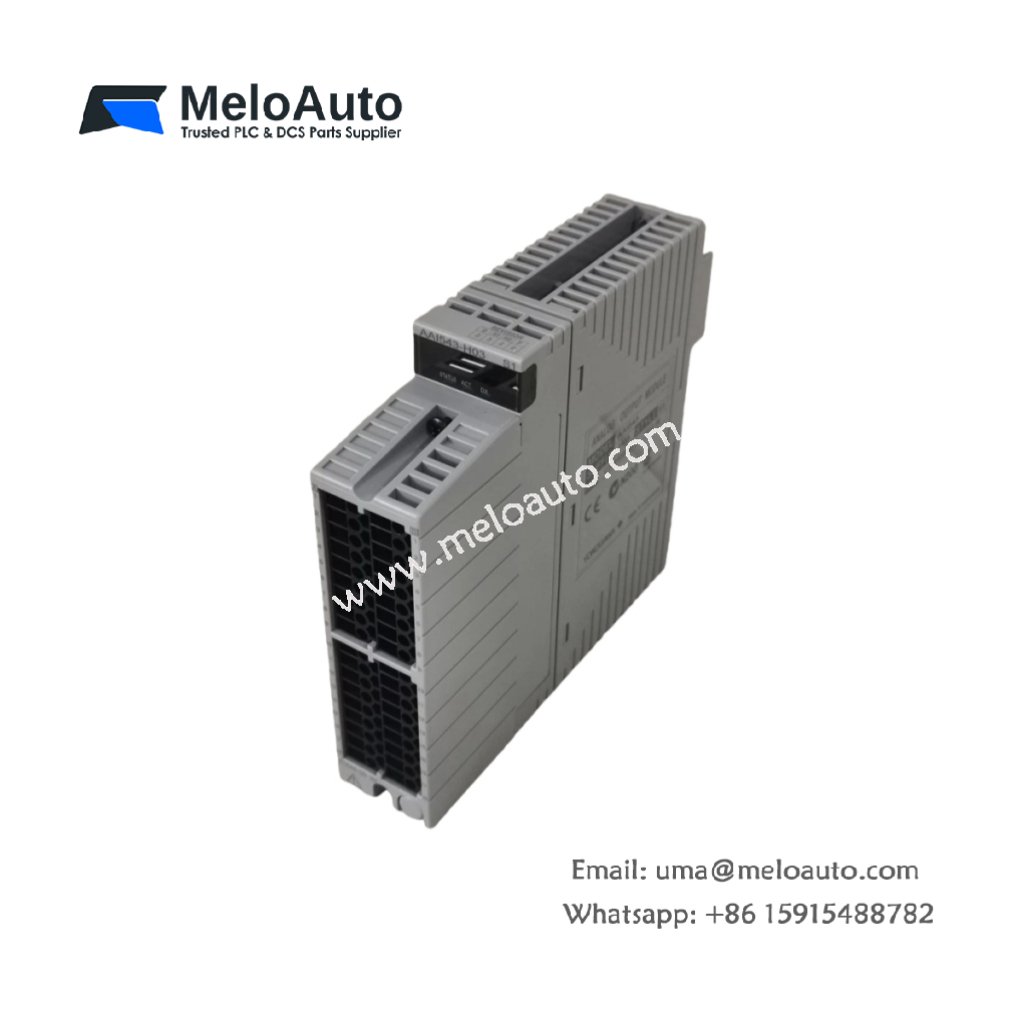

Yokogawa AAI543-H03 16-Channel Isolated Analog Output Module

The Yokogawa AAI543-H03 is a reliable 16-channel isolated analog output module designed for high-precision applications in industrial automation. This module supports 4 to 20 mA DC signals and features an efficient switch-over response for redundant configurations. It integrates HART communication and complies with ISA Standard G3, offering a wide operational temperature range from -20 to 70 °C. With its robust design, the Yokogawa AAI543-H03 ensures optimal performance and reliability in demanding environments.

Key Features and Specifications

Model: Yokogawa AAI543-H03
Manufacturer: Yokogawa
Category: 16-Channel Isolated Analog Output Module
System Compatibility: Designed for use in industrial control systems

The Yokogawa AAI543-H03 features 16 isolated output channels, making it suitable for applications that require high isolation and reduced electrical interference. The module’s standard switch-over response allows seamless integration into redundant systems, ensuring continuous operation. Additionally, it supports HART communication, enabling remote configuration, diagnostics, and maintenance.

Technical Specifications

Specification	Description
Number of Channels	16 (Isolated)
Output Signal	4 to 20 mA DC
Switch-Over Response	Standard
HART Communication	Yes
Temperature Range	-20 to 70°C
ISA Standard G3 Option	Yes

Performance and Integration

The Yokogawa AAI543-H03 module ensures accurate and stable signal output with a high degree of isolation. This feature helps to maintain signal integrity in environments with significant electrical noise. The standard switch-over response makes it ideal for redundant system configurations, ensuring system reliability even in the event of a failure.

Thanks to its compliance with ISA Standard G3, the module is well-suited for use in industries requiring stringent operational standards. The module also supports HART communication, providing advanced diagnostic capabilities and easier integration into modern control systems.

Applications

The Yokogawa AAI543-H03 is ideal for use in a wide range of industrial applications, including:

Oil and Gas: Offers reliable control for actuators and valves in harsh environments.
Petrochemical: Ensures stable operation in complex chemical processes.
Power Generation: Provides precision control for turbines, generators, and other power equipment.
Pulp and Paper: Supports continuous process control in paper production lines.
Food and Beverage: Guarantees accurate and consistent control in automated food processing.

With its advanced features, the Yokogawa AAI543-H03 is a versatile and reliable solution for industrial automation needs.
