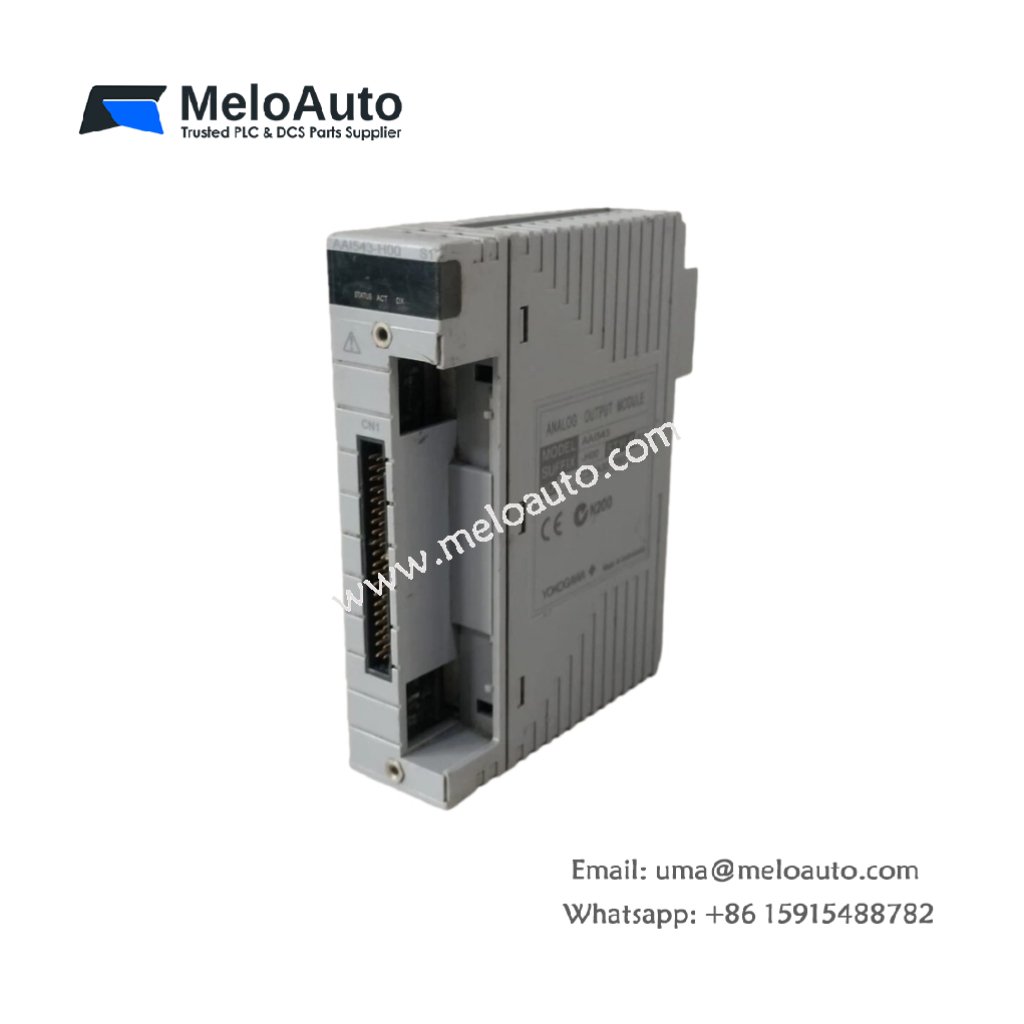

Yokogawa AAI543-H00 S1 Analog Output Module

The Yokogawa AAI543-H00 S1 is a high-performance 16-channel isolated analog output module designed specifically for the Yokogawa CENTUM VP distributed control system (DCS). It provides reliable 4 to 20 mA DC or 1 to 5 V DC signals to control actuators, valves, and other devices. With 0.1% conversion accuracy and a rapid 2 ms conversion time, this module guarantees precise and stable operation for demanding industrial applications.

Key Features and Specifications

Model: Yokogawa AAI543-H00 S1
Manufacturer: Yokogawa
Category: 16-Channel Isolated Analog Output Module
System Compatibility: Yokogawa CENTUM VP DCS

With 16 isolated output channels, the Yokogawa AAI543-H00 S1 offers precise analog output control. Its wide input range of -10 to 130 V and HART communication support make it highly adaptable to various industrial devices and control systems. In addition, the hot-swappable design minimizes downtime and simplifies maintenance.

Technical Specifications

Specification	Description
Number of Channels	16 (Isolated)
Input Signal	4 to 20 mA DC or 1 to 5 V DC
Input Range	-10 to 130 V
Conversion Accuracy	0.1% of full scale
Conversion Time	2 ms
HART Communication	Yes
Hot-Swappable	Yes
Dimensions	100 mm (W) x 80 mm (H) x 35 mm (D)
Weight	0.3 kg

Performance and Integration

The Yokogawa AAI543-H00 S1 excels in high-speed signal conversion, with a conversion time of just 2 ms and 0.1% accuracy. This ensures optimal performance in environments where precise signal processing is crucial. HART communication enables remote diagnostics and configuration, enhancing the module’s flexibility and integration capabilities within your system.

Additionally, its hot-swappable feature allows you to replace the module without shutting down the system, reducing downtime. The module’s compact size ensures easy installation in control cabinets, even in space-constrained environments.

Applications

The Yokogawa AAI543-H00 S1 is suitable for a variety of industries, including:

Oil and Gas: Ideal for handling complex, remote control tasks in challenging environments.
Petrochemical: Supports precise control in critical chemical processes.
Power Generation: Ensures reliable control in power plants, turbines, and other generation systems.
Pulp and Paper: Provides stable output for continuous manufacturing processes.
Food and Beverage: Guarantees accurate control in automated production lines, ensuring product consistency.

This module’s versatility and robust performance make it a perfect choice for any industry requiring high-precision, reliable control systems.
