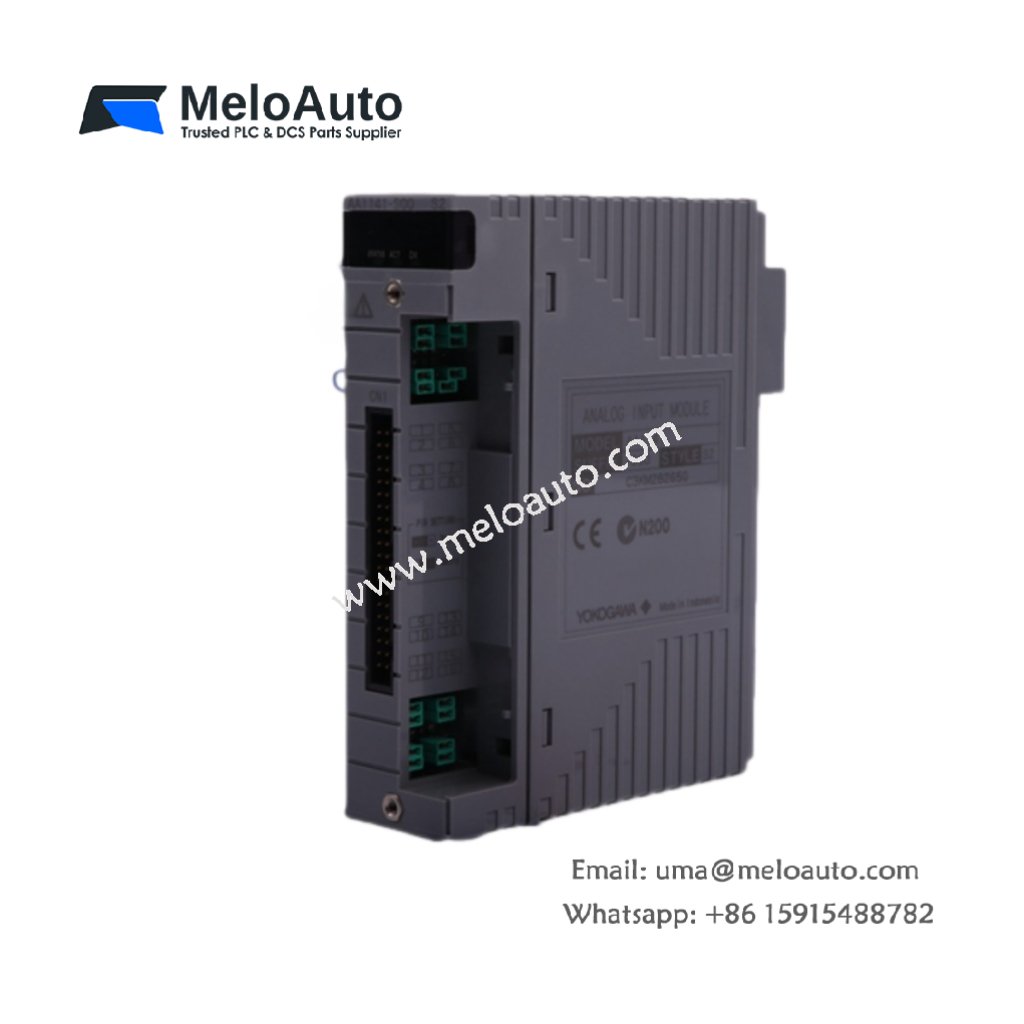

Yokogawa AAI141-S00: 16-Channel Analog Input Module

Overview

The Yokogawa AAI141-S00 is a versatile 16-channel analog input module designed for industrial automation. This module is ideal for use in systems like the Yokogawa Centum VP and ProSafe-RS. It provides accurate and fast signal conversion, supporting both 4-20 mA DC and 1-5 V DC inputs. The AAI141-S00 enables precise monitoring and data acquisition of field devices, ensuring reliable operation in demanding environments.

Key Features

16 Non-Isolated Channels: The AAI141-S00 features 16 non-isolated input channels, designed for reliable signal conversion. All channels share a common reference, making it suitable for various industrial applications.
Supports Multiple Input Signals: This module accepts 4-20 mA DC and 1-5 V DC input signals, commonly used with transmitters for measuring process variables like temperature, pressure, and flow.
Fast Data Updates: The module delivers quick data updates with a 10ms update period and a 100ms response time, ensuring responsive and accurate signal monitoring.
Flexible Configuration: The AAI141-S00 supports 2-wire or 4-wire transmitter configurations per channel, offering flexibility for different industrial setups.
High-Accuracy Signal Acquisition: It is designed for use in Distributed Control Systems (DCS) such as Yokogawa Centum VP and ProSafe-RS, providing precise signal acquisition for industrial control and automation.

Technical Specifications

Specification	Details
Manufacturer	Yokogawa
Model	AAI141-S00
Channels	16 non-isolated input channels
Input Signals	4-20 mA DC and 1-5 V DC
Isolation	Non-isolated (common reference between channels)
Configuration	2-wire or 4-wire transmitters per channel
Update Period	10 ms
Step Response Time	100 ms
Power Supply	24 V DC
Dimensions	110 mm (W) x 120 mm (H) x 60 mm (D)
Weight	0.3 kg
External Connection	Pressure clamp terminal or MIL connector cable

Applications

The Yokogawa AAI141-S00 is ideal for a wide range of applications in industrial automation, including:

Process Control: Accurate and fast signal acquisition for controlling and monitoring industrial processes.
Field Device Monitoring: Used in systems like Yokogawa Centum VP and ProSafe-RS for precise field device monitoring.
Automation Systems: Integrates seamlessly into Distributed Control Systems (DCS) for reliable data acquisition.

Conclusion

The Yokogawa AAI141-S00 16-channel analog input module offers high performance, flexibility, and precision for industrial monitoring and control. With fast data updates and support for multiple input signals, it is perfect for demanding applications in automation systems.
