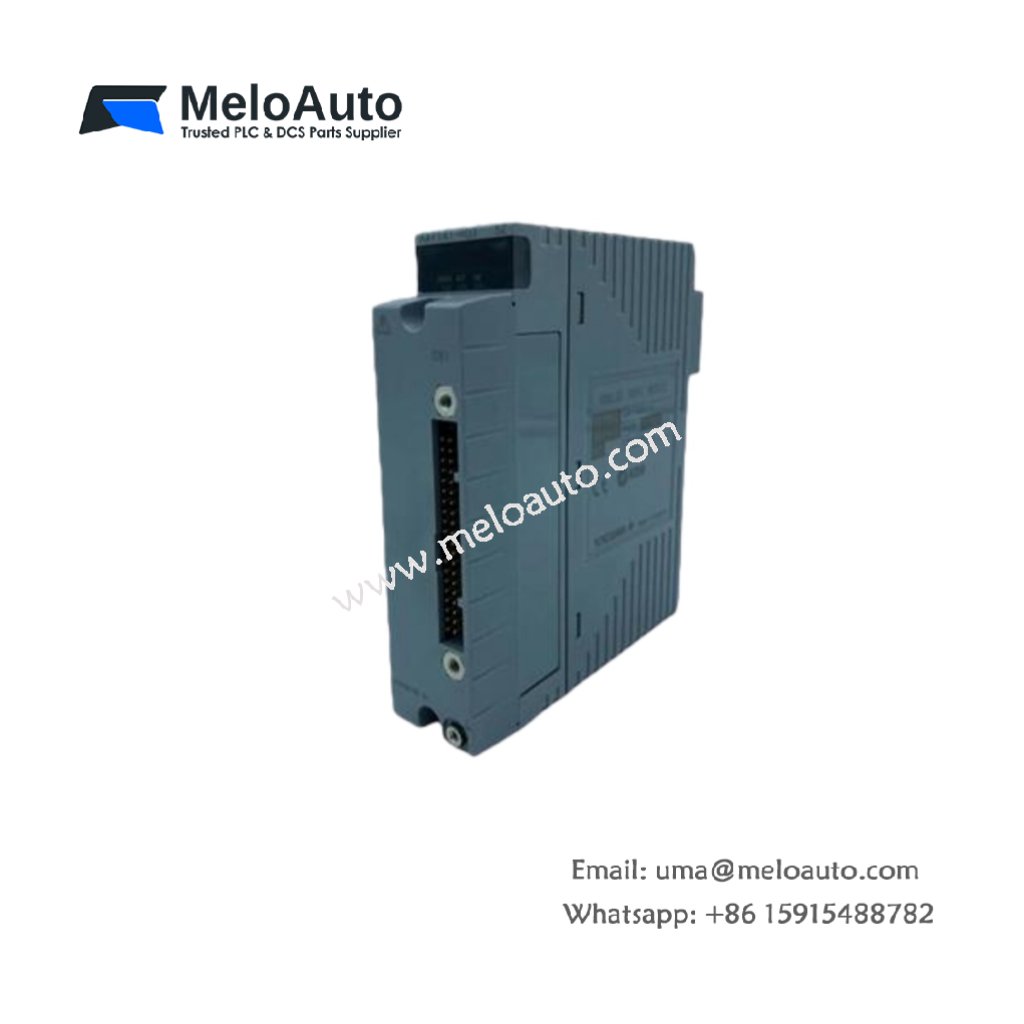

Yokogawa AAI141: Versatile Analog Input Module for Process Control

Overview

The Yokogawa AAI141 is an advanced analog input module designed for the Yokogawa CENTUM VP DCS system. This module plays a crucial role in measuring a variety of process variables, such as temperature, pressure, flow, and liquid level. Available in two configurations, the AAI141-H53 and AAI141-S50, it offers flexibility to meet both high-performance and standard-performance needs.

Key Specifications

Key Features

• High Accuracy and Reliability: The AAI141-H53 provides ±0.05% accuracy, ideal for precision applications, while the AAI141-S50 offers ±0.1% accuracy for general-purpose use.
• Wide Temperature Range: The AAI141-H53 supports an extended operating range from -10°C to 55°C, suitable for demanding industrial environments. The AAI141-S50 operates within 0°C to 55°C.
• HART Communication Support: Both versions of the AAI141 support the HART protocol, enabling advanced diagnostics and seamless communication with control systems.
• Flexible Input Range: The module accepts 4-20 mA and 1-5 V signals, making it versatile for various applications requiring continuous signal measurement.
• Electrical Isolation: The module provides electrical isolation between input and system, ensuring safe operation even in high-voltage environments.

Applications

The Yokogawa module is suitable for a variety of industrial applications, including:

1. Temperature Measurement: Accurate monitoring of process fluid temperature in industries like chemical processing and power plants.
2. Pressure Measurement: Measuring gas or liquid pressure in pipelines, tanks, or pressure vessels.
3. Flow Rate Measurement: Used to monitor the flow rate of gases or liquids, ensuring proper flow control in industrial systems.
4. Level Measurement: Suitable for measuring the level of liquids in tanks, silos, or reservoirs in a wide range of industries.
5. pH Measurement: Measuring the pH of solutions in laboratories or industrial chemical processes.

Model and Suffix Codes

• Model: Analog input module for 4-20 mA and 1-5 V signals.
• Suffix Codes:
  • H53: High-performance version with ±0.05% accuracy.
  • S50: Standard version with ±0.1% accuracy.

Conclusion

The Yokogawa offers flexibility and high performance, making it ideal for diverse industrial applications. With two configurations to choose from, it supports precise analog signal measurement, HART communication, and high accuracy to ensure reliable operation in even the most demanding environments.
