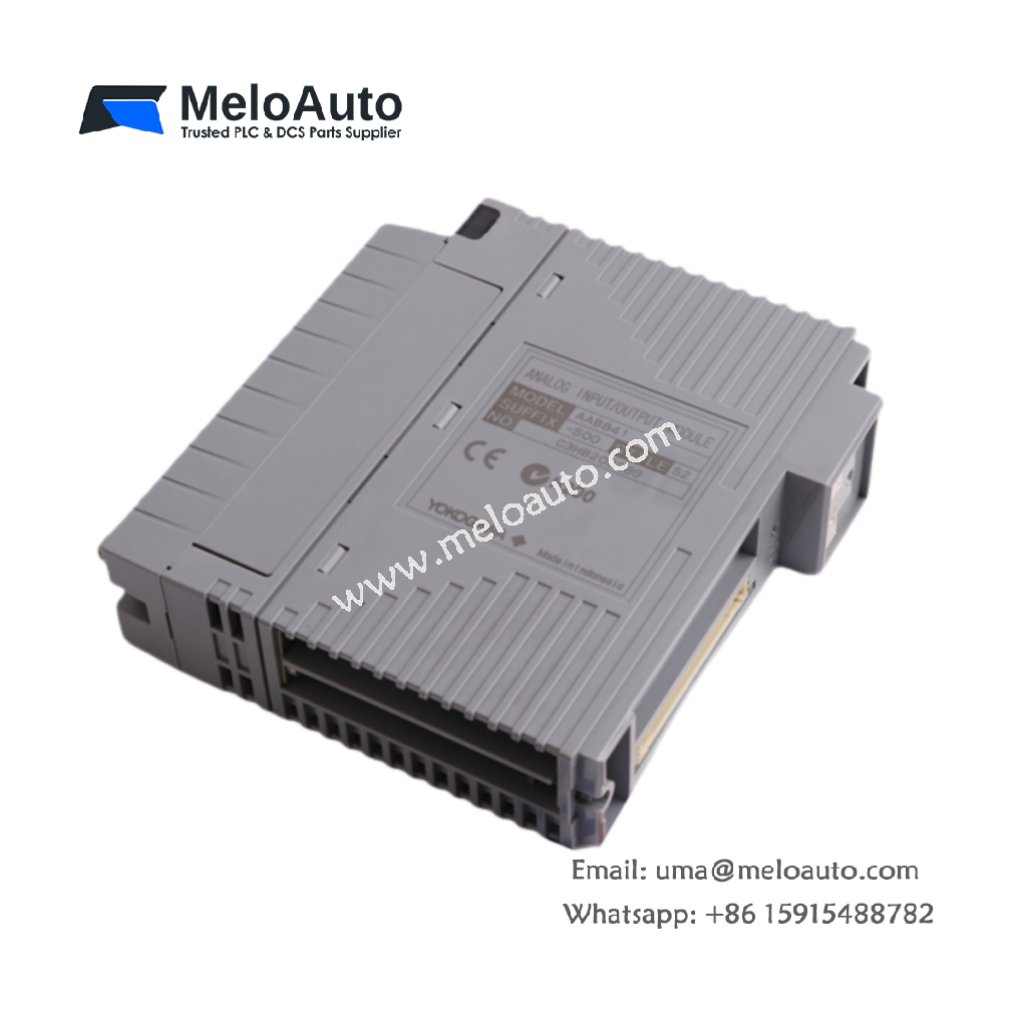

Yokogawa AAB841-S00 S2: 8-Channel Analog I/O Module

Overview of the Yokogawa AAB841-S00 S2

The Yokogawa AAB841-S00 S2 is an 8-channel analog input/output (I/O) module designed for use with the Yokogawa CENTUM VP DCS system. This non-isolated module enables direct communication between input and output channels, providing reliable signal processing for industrial applications. With its efficient design, it supports seamless control and monitoring in automated systems.

Key Features of the Yokogawa AAB841-S00 S2

Hot-Swappable: The AAB841-S00 S2 allows for quick replacement without needing to shut down the DCS system. This minimizes downtime and keeps the system running efficiently.
Redundancy Built-In: The module includes a built-in redundancy feature. If one I/O module fails, the remaining modules continue to operate, ensuring the system stays functional.
Comprehensive Protection: This module provides robust safety protections, including overvoltage, overcurrent, and short-circuit protection, safeguarding your system from electrical faults.

Detailed Technical Specifications

Specification	Details
Part Number	AAB841-S00 S2
Input Range	1-5 V
Output Range	4-20 mA
Accuracy	±0.1% F.S
Resolution	12 bits
Sampling Rate	100 Hz
Operating Temperature Range	0°C to 55°C
Dimensions	170 x 120 x 50 mm
Weight	1 kg (2.2 lbs)
Protection Features	Overvoltage, Overcurrent, Short-circuit Protection

Applications of the Yokogawa AAB841-S00 S2

The Yokogawa serves multiple functions across various industries. It is particularly effective in:

Industrial Automation & Control: It plays a crucial role in automating processes within the Yokogawa CENTUM VP DCS.
Process Control: The module helps monitor and control process variables, ensuring smooth and continuous operation.
Laboratory Measurements: It enables high-precision measurements for research and testing in controlled environments.
Environmental Monitoring: The module supports environmental sensors, measuring temperature, humidity, pressure, and other parameters in industrial and research applications.

Conclusion

The Yokogawa is a versatile 8-channel analog I/O module, designed to provide high performance and reliability. Its hot-swappable design, redundancy features, and comprehensive safety protection make it an ideal choice for industries that require continuous, uninterrupted control.
