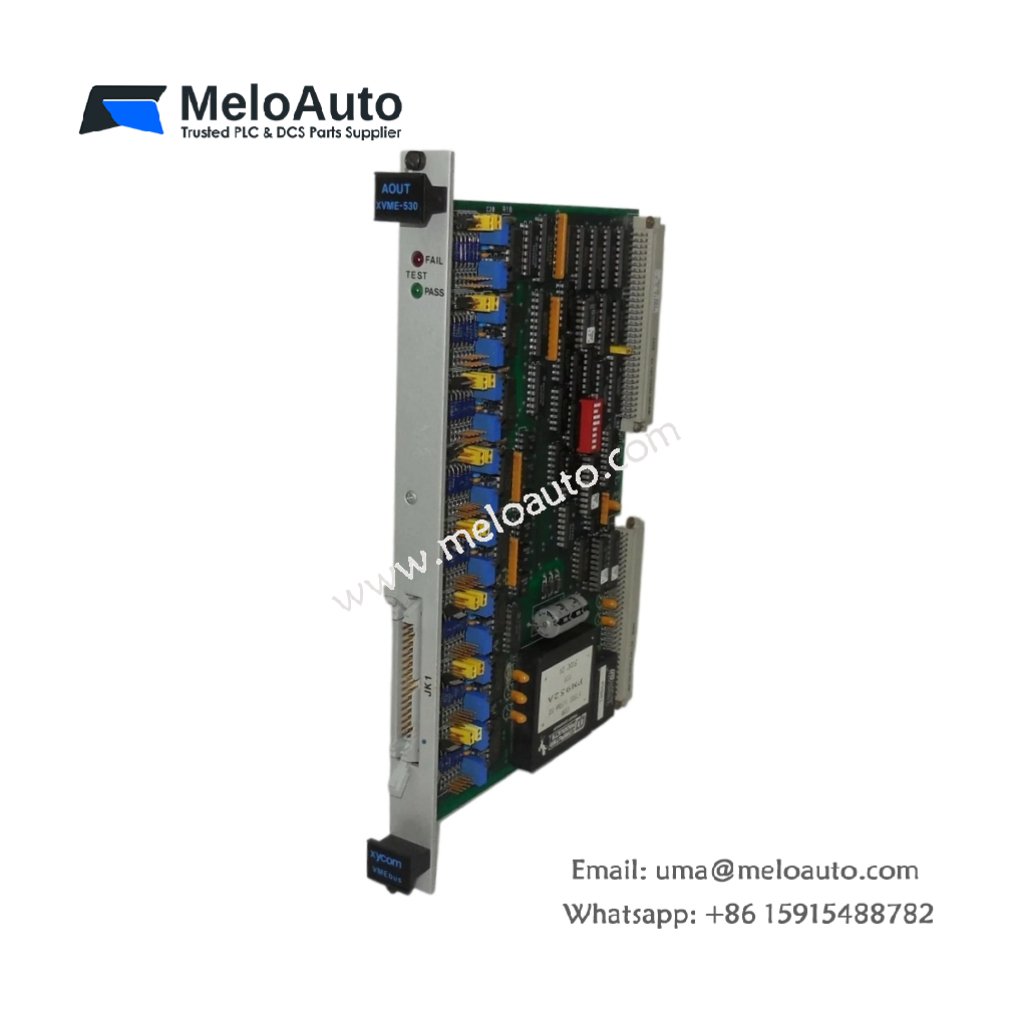

Xycom XVME-530 70530-001 Analog Output Module

The Xycom XVME-530 70530-001 8-channel isolated analog output module offers precise control for industrial automation systems. With independent channels and robust optical isolation, this module provides reliable performance even in harsh environments. It ensures flexibility and accuracy for various industrial applications, making it a valuable addition to your control systems.

Key Features of the Xycom XVME-530

8 Independent D/A Output Channels: The Xycom XVME-530 features eight independent channels that can be configured for voltage or current output, offering flexibility for various system needs.
Optical Isolation: Each channel provides 300 V of optical isolation, which protects sensitive equipment from electrical interference and ground loops.
On-Board DC/DC Converter: The Xycom XVME-530 integrates a DC/DC converter, improving power efficiency and ensuring stable operation under different industrial conditions.
Adjustable Gain and Offset: You can adjust both the gain and offset to zero on each channel, reducing errors and ensuring high accuracy. The maximum overall error is ±0.5 LSB.
Multiple Output Ranges: The module supports several output voltage ranges: 0-5 V, 0-10 V, ±2.5 V, ±5 V, and ±10 V, as well as a current range of 4-20 mA.

Technical Specifications

Parameter	Specification
Model	Xycom XVME-530 70530-001
Output Channels	8 Independent D/A Channels
Optical Isolation	300 V
D/A Converter Resolution	12 Bits
Gain and Offset Adjustment	Adjustable to Zero
Voltage Output Ranges	0-5 V, 0-10 V, ±2.5 V, ±5 V, ±10 V
Current Range	4-20 mA
Maximum Error	±0.5 LSB
On-Board Power Converter	DC/DC Converter
Compliance	Xycom Standard I/O Architecture

Why Choose the Xycom XVME-530?

The Xycom XVME-530 offers precise and flexible analog output control for a wide range of industrial applications. Its 8 independent channels can be configured to meet your system’s specific requirements, ensuring optimal performance and adaptability. The adjustable gain and offset on each channel allow for fine-tuning, while the maximum error remains within ±0.5 LSB.

Moreover, the Xycom XVME-530 features 300 V of optical isolation to prevent electrical interference, making it ideal for sensitive control systems. The integrated DC/DC converter further enhances power efficiency, ensuring that your system operates smoothly under various conditions.

By adhering to Xycom’s standard I/O architecture, the Xycom XVME-530 seamlessly integrates into existing automation systems, providing a reliable and high-performance solution that meets the demands of modern industrial applications.
