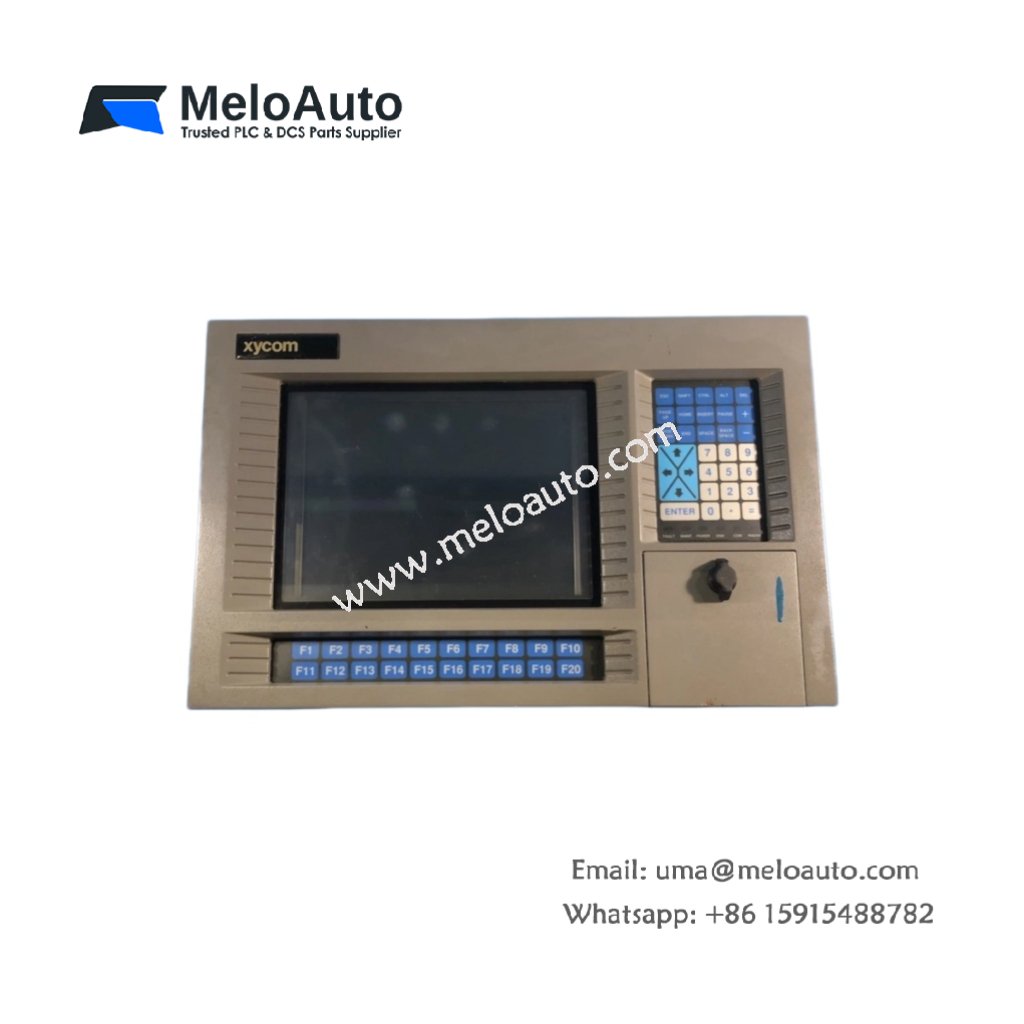

XYCOM 9485 Operator Interface Panel

The XYCOM 9485 operator interface panel provides a comprehensive solution for controlling and monitoring industrial processes. With a robust, user-friendly design, this interface panel ensures seamless interaction with industrial machinery. It features a high-quality display, responsive touchscreen, and flexible I/O options, making it ideal for applications requiring precision and efficiency.

Key Features and Specifications of the XYCOM 9485

Model: XYCOM 9485
Category: Operator Interface Panel
Power Supply: 115/230 V AC, 50/60 Hz
Current Draw: 3.2 Amps
Display Type: High-resolution TFT Industrial Screen
Touchscreen Type: Capacitive Touch

Technical Specifications

Feature	Specification
Display Type	High-resolution TFT Industrial Screen
Screen Size	10.4 inches
Resolution	1024 x 768 (XGA)
Touchscreen Type	Capacitive Touch
Power Input	115/230 V AC, 50/60 Hz
Current Consumption	3.2 Amps
Mounting Type	Panel Mount
Operating Temperature	0°C to 50°C
Dimensions (W x H x D)	290mm x 240mm x 60mm
Weight	Approx. 4.5 kg
Number of I/O Channels	8 Digital, 4 Analog
Energy Storage	150 mJ Internal Capacitor

The XYCOM 9485 comes with a 10.4-inch capacitive touchscreen featuring 1024 x 768 (XGA) resolution, providing users with clear visuals and precise control. The panel operates on 115/230 V AC with a 3.2 Amp current draw, ensuring optimal energy usage. It includes 8 digital I/O channels and 4 analog I/O channels, making it highly versatile for diverse applications. Additionally, it has a 150 mJ internal capacitor that ensures stable performance, even during power disruptions.

Rugged Design for Industrial Environments

Built for harsh industrial environments, the XYCOM 9485 operates effectively in temperatures ranging from 0°C to 50°C. Its 290mm x 240mm x 60mm size allows for easy installation in a variety of control systems. The durable construction ensures the panel maintains long-term reliability and performance under demanding conditions.

Enhanced Energy Efficiency

With a current draw of 3.2 Amps, the XYCOM 9485 operator interface panel offers energy-efficient operation. This makes it an excellent choice for businesses looking to reduce energy consumption without sacrificing performance. The panel is designed to deliver high efficiency in both operation and energy use, making it an environmentally friendly option.

Flexible Integration and Seamless Control

The XYCOM 9485 integrates easily with industrial automation systems, offering 8 digital and 4 analog I/O channels to suit various operational needs. The capacitive touchscreen simplifies complex tasks, allowing operators to control processes with ease. Moreover, the panel’s user-friendly interface makes it intuitive to use, ensuring minimal training time.
