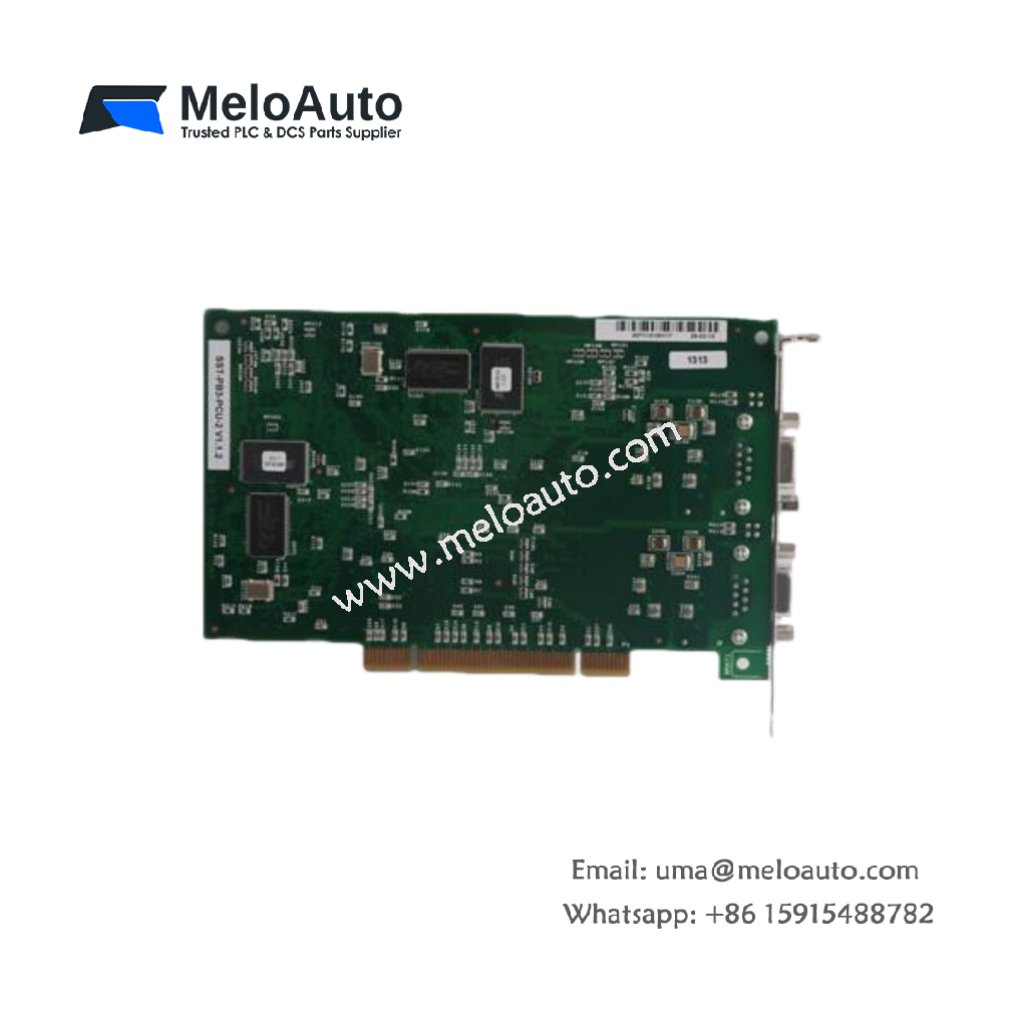

Woodward SST-PB3-PCU PCI Bus PROFIBUS DP Interface Card

Product Overview

The Woodward SST-PB3-PCU is a high-performance PCI bus interface card, specifically designed to provide reliable communication in industrial automation applications. This card serves as both a PROFIBUS DP Master and PROFIBUS DP Slave interface, supporting FDL (Layer 2) communication as well. With flexible configuration options, it is suitable for demanding environments requiring efficient and reliable data transfer.

Key Features

High-Speed Data Transmission: Supports data rates of up to 12 Mbps, making it ideal for high-performance applications that demand fast communication speeds.
Dual Configuration: Available in both 1-channel and 2-channel configurations, allowing for versatile integration into different systems.
Dual Functionality: Operates in PROFIBUS DP Master or DP Slave mode, and supports FDL (Layer 2) communication for advanced network control.
Reliable and Robust: Designed with watchdog timers, error detection, and error correction to ensure stable operation in critical environments.
Flexible Installation: Uses a half-length PCI form factor, and features 9-pin D-subminiature connectors for easy integration with other industrial equipment.

Technical Specifications

Specification	Details
Model	SST-PB3-PCU
Bus Type	PCI
Channels	1 or 2
Data Rate	Up to 12 Mbps
Interface	PROFIBUS DP
Connectors	9-pin D-subminiature
Form Factor	Half-length PCI
Operating Temperature	0°C to 60°C
Power Requirements	+5 VDC, +3.3 VDC

Applications

The Woodward SST-PB3-PCU is a versatile and reliable solution for various industrial applications, including:

Industrial Automation Systems: Enables high-speed communication between devices in manufacturing environments.
PROFIBUS Networks: Acts as both a master and slave interface, seamlessly integrating with PROFIBUS DP networks.
Data Transfer and Control: Provides efficient control and communication for applications that require high-performance data transmission.

Easy Installation and Use

The Woodward SST-PB3-PCU simplifies installation with its comprehensive software driver package. This ensures smooth integration and ease of use for end-users, eliminating complex configurations. The half-length PCI form factor makes it compatible with a wide range of industrial PCs, while the 9-pin D-subminiature connector supports quick and secure connections.

Reliability in Demanding Applications

The Woodward SST-PB3-PCU is built for reliability in challenging industrial environments. It features advanced error detection and correction capabilities, ensuring that data transmission remains stable, even in critical control systems. Additionally, its watchdog timers provide enhanced fault tolerance, reducing the risk of communication failures.
