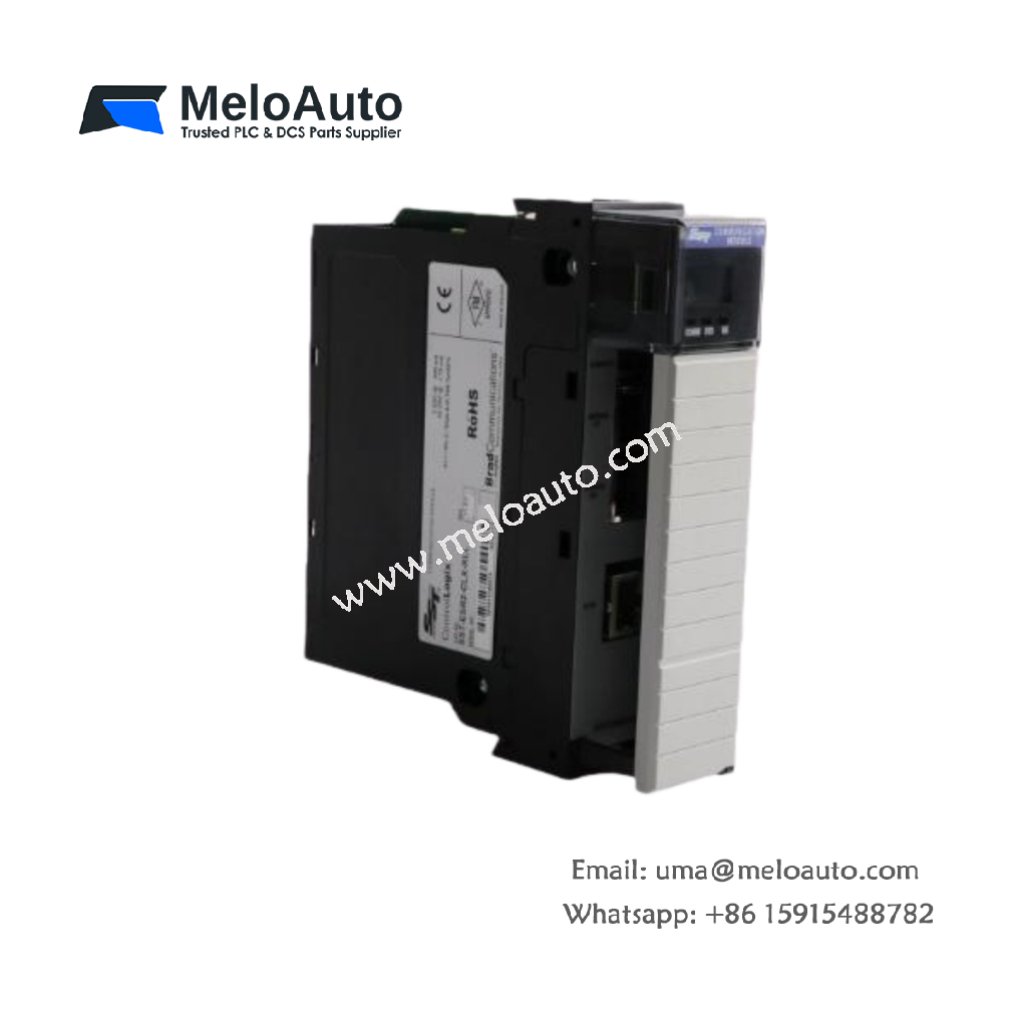

Woodward SST-ESR2-CLX ControlLogix Communication Module

The Woodward SST-ESR2-CLX is a versatile communication module designed for seamless integration within the Allen-Bradley ControlLogix system. It provides enhanced connectivity through three communication channels: one Ethernet port and two serial ports. This configuration ensures reliable data transmission for complex industrial automation tasks.

Key Features of the Woodward SST-ESR2-CLX

Manufacturer: Woodward Inc.
Product Line: ControlLogix
Part Number: SST-ESR2-CLX
Category: Ethernet/Serial Communication Module
Weight: 2.00 lbs (0.91 kg)
Channels: 3 (1 Ethernet + 2 Serial)
Ports: 3 total
Network Connection Type:
- Ethernet: RJ45
- Serial: 9-pin D-Sub Male
Operating System: Windows
Slave Communication: Serial Modbus RTU/ASCII
Protocol Support: Modbus RTU/ASCII

Detailed Technical Specifications

Specification	Details
Product Type	SST ETH/SER In-Chassis Module
Product Line	ControlLogix
Part Number	SST-ESR2-CLX
Weight	2.00 lbs (0.91 kg)
Channels	3 (1 Ethernet + 2 Serial)
Ports	3
Ethernet Port	RJ45
Serial Port	9-pin D-Sub Male
Operating System	Windows
Slave Communication	Serial Modbus RTU/ASCII
Protocol Support	Modbus RTU/ASCII

Product Description

The SST-ESR2-CLX is an Ethernet/Serial communication module specifically designed for the Allen-Bradley ControlLogix system. It provides three communication channels: one Ethernet RJ45 port and two serial D-Sub male connectors. This configuration allows flexibility in connecting various industrial devices and controllers.

Supporting Serial Modbus RTU/ASCII protocols, the module enables effective data exchange between networked devices. It operates seamlessly with the Windows operating system, making it highly compatible with industrial control and automation setups.

Weighing just 2.00 lbs (0.91 kg), the offers an efficient and reliable communication solution without compromising on performance. Its lightweight design ensures easy installation and integration into existing industrial systems.

Applications

Industrial Automation Systems: Integration of Ethernet and serial devices into ControlLogix-based control systems.
Data Communication: Reliable data exchange through Modbus RTU/ASCII protocols in industrial environments.
Flexible Integration: Support for both Ethernet and serial communication makes it ideal for diverse automation applications.
