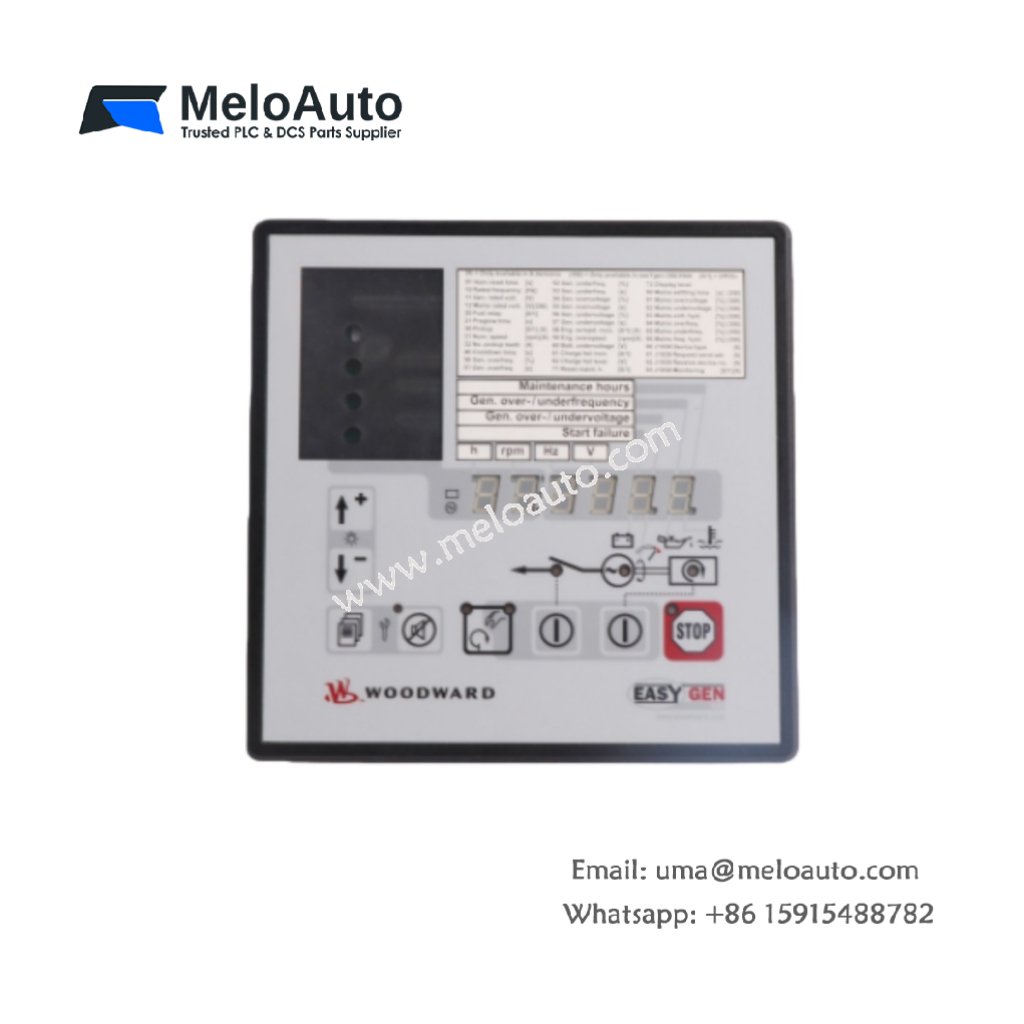

Woodward EASYGEN-320 Generator Control Module

The Woodward EASYGEN-320 is a part of the EASYGEN-300 series of genset control modules. Designed by Woodward Inc., this module is built to provide advanced generator and engine protection. It features comprehensive control and monitoring functions, including generator set controls, engine crank sequencing, and generator voltage measurement. The EASYGEN-320 also integrates a generator circuit breaker (GCB), further enhancing its operational capabilities.

Key Features of the Woodward EASYGEN-320

• Manufacturer: Woodward Inc.
• Product Line: EASYGEN-300 Series
• Part Number: EASYGEN-320
• Category: Generator Control Module
• Generator Protection: Integrated GCB for added security
• Engine Crank Sequencing: Ensures smooth engine start-up
• Generator Voltage Measurement: Accurate voltage tracking for reliable operation
• Remote Start: Discrete input for remote activation
• HMI Display: Allows easy on-site configuration and operation
• LED Indicators: Provides clear operational status
• Weight: 1.5 kg (approx.)

Technical Specifications

Product Description

The Woodward EASYGEN-320 is a reliable and advanced generator control module within the EASYGEN-300 series. It is engineered to protect and control both the generator and engine, ensuring safe and efficient power generation. Designed for flexibility, this module is suitable for a wide range of applications, including engine crank sequencing and generator voltage measurement.

The EASYGEN-320 includes an intuitive HMI display with LED indicators that allow operators to easily monitor system status and configure settings. The seven-digit alphanumeric display provides clear visibility into operating parameters, while the stop button with LED ensures quick shutdown when needed. Additionally, the module allows for remote start via discrete input, adding convenience and flexibility in system operation.

One key feature of the EASYGEN-320 is its generator circuit breaker (GCB), which offers additional protection to the generator. The module also features terminal strips on the back surface for easy wiring setup, but it is important to note that only trained technicians should perform installation or maintenance.

Applications

• Power Generation: Reliable control and protection for generator systems.
• Mobile Equipment: Suitable for controlling engines in mobile industrial applications.
• Industrial Engines: Used for managing industrial engines and turbines.
